CPU Module with
® Atom x5 Z8350 Processor

Ideal for IoT
(Internet of Things)

Credit card size board

64 bits architecture
High performance

+5Vdc only operation
Low power consumption

Low cost

  • UP is a credit card size board with the high performance and low power consumption features of the latest tablet technology: the Intel® Atom™ x5 Z8350 Processors (codename Cherry Trail) 64 bits up to 1.92GHz.

  • The internal GPU is the new Intel Gen 8 HD 400 with 12 Execution Units up to 500MHz to deliver extremely high 3D graphic performance.

  • UP is equipped with 1GB/2GB/4GB DDR3L RAM and 16GB/32GB/64GB eMMC.

  • UP has 40-pin General Purpose bus which provides the freedom to makers to build up their shield.

  • There are more interfaces available, such as 4x port USB2.0 on connectors,
    2x port USB2.0 + 1x UART on header, 1x USB 3.0 OTG, 1x Gbit Ethernet (full speed), 1x DSI/eDP port, 1x Camera (MIPI-CSI), 1x HMDI, RTC.

  • It’s UP to you to choose which operation system is best for your application. The CPU is supported by Android 5.0 Lollipop, Microsoft Windows 10 and we support and enable Linux, through our UP Community.

  • UP has a standard industrial PC operating temperature range of 32~104°F/0~60°C, which makes it flexible for many applications

  • UP is a computer board for makers and professional makers.

  • UP is a bridge between your hobby and your future business.



  • Form Factor: Credit Card size
  • Processor: SOC Intel Atom x5-Z8350
    2M Cache, 1.92 GHz, Quad Core CPU with 64-bit architecture
  • System Memory: On-board DDR3L-1066 memory, 01 / 02 / 04 GBytes
  • Ethernet: Gigabit Ethernet, 1x RJ-45
  • RTC: powered by battery
  • Expansion Interface: 40-pin General Purpose Bus
  • Power Requirement: only +5V DC, Power Jack
  • Power Consumption (Typical): 3A @ 5V
  • Board Size: 3.37" x 2.22" (85.6mm x 56.5mm)
  • Operation Temperature: 32°F ~ 140°F (0°C ~ 60°C)
  • Operation Humidity: 10% ~ 80% RH, non-condensing
  • Certificate: CE/FCC Class A, RoHS compliant


  • Graphic Engine: Intel HD 400 Graphics, 12 EU GEN 8, up to 500 MHz
  • Support:
    DX*11.1/12, Open GL*4.2, Open CL*1.2 OGL
    ES3.0, H.264, HEVC(decode), VP8
    HDMI 1.4b
  • Output Interface: DSI / eDP


  • Storage: eMMC, 16 / 32 / 64 GBytes
  • Serial Port: 1x UART on header
  • Universal Serial Bus:
    1x USB3.0 OTG (can also be converted to USB2.0)
    4x USB2.0 on connector
    2x USB2.0 on pin header (10 pins in total)
  • Digital I/O: 40-pin GP-Bus
  • Camera Interface: MIPI-CSI (4 Mega pixel)
  • Video & Audio: Full HDMI 1.4b
  Ordering Information
  • UP-CHT01-A10-0116 -- UP-Board, x5-8350, 64 bit, 1GB RAM, 16GB eMMC
  • UP-CHT01-A10-0216 -- UP-Board, x5-8350, 64 bit, 2GB RAM, 16GB eMMC
  • UP-CHT01-A10-0232 -- UP-Board, x5-8350, 64 bit, 2GB RAM, 32GB eMMC
  • UP-CHT01-A10-0432 -- UP-Board, x5-8350, 64 bit, 4GB RAM, 32GB eMMC
  • UP-CHT01-A10-0464 -- UP-Board, x5-8350, 64 bit, 4GB RAM, 64GB eMMC

Optional Accessories

  • UP-CHT01-COOLER-A01 -- Active coller (fan)
  • OPT-UP-CABLE-USB-001 -- USB 3.0 OTG Cable
  • OPT-UP-CABLE-USB-002 -- USB 2.0 Pin Header Cable
  • OPT-UP-PSU-002 -- DC Power Adapter (5V @ 4A)

Packing List

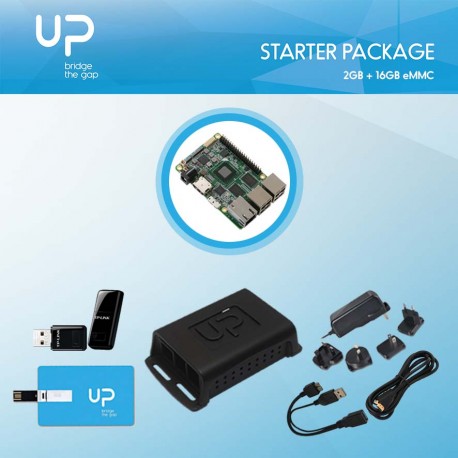

  • 1x UP-Board
  • 1x Quick Start Up Guide

Starter Package
Configurations, Options and prices
