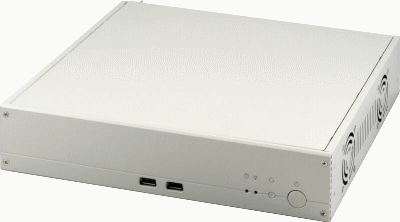

Click para ampliar a imagem TKS-T52
Chassis Kit for
Mini-ITX Boards
  • Two 5cm Cooling Fans
  • Built-in 80W DC-in Power Supply
  • Supports 2.5" Hard Disk Drive and CompactFlash™
  • Two PCI Slots or PCI Slot + PCI-E [x1] Slot (Optional)



  • CPU Board Support: EMB-852T / EMB-945T / EMB-9458T
  • Solid Storage Disk: Type II CompactFlash™ x 1
  • Hard Disk Storage: 2.5" Hard Disk Drive x 1
  • USB Port: USB Host Type A x 2 in front panel
  • Expansion Slot
    PCI slot x 2 or PCI slot + PCI-E [x1] slot (optional for EMB-945T & EMB-9458T)
  • System Control: Power switch x 1, Reset button x 1
  • LED Indicator: Power LED x 1, HDD LED x 1
  • Power Supply: ATX type, +12V DC Input, 80W AC Adapter
  • System Cooling: 5cm cooling fan x 2

          Mechanical & Environmental

  • Operating Temperature: 32oF ~ 104oF (0oC ~ 40oC)
  • Dimensions: 10.75" x 11.81" x 2.56" (273mm x 300mm x 65mm)
  • Construction: Heavy duty steel
  • Mounting: Desktop
  • Color: White/ Black
  • EMC: CE /FCC class A
  Ordering Information
  • TF-TKS-T52-852T-001-DX
    Chassis Kit, EMB-852T-A11 (White)
  • TF-TKS-T52-852T-002-DX
    Chassis Kit, EMB-852T-A11, Celeron® M 600MHz (White)
  • TF-TKS-T52-852T-003-DX
    Chassis Kit, EMB-852T-A11 (Black)
  • TF-TKS-T52-852T-004-DX
    Chassis Kit, EMB-852T-A11, Celeron® M 600MHz (Black)
  • TF-TKS-T52-945T-002-DX
    Chassis Kit, EMB-945T-B10 (White)
  • TF-TKS-T52-945T-003-DX
    Chassis Kit, EMB-945T-B10 (Black)
  • TF-TKS-T52-9458-001-DX
    Chassis Kit, EMB-9458T-A10 (White)
  • TF-TKS-T52-9458-002-DX
    Chassis Kit, EMB-9458T-A10 (Black)

           Optional Accessories:

  • TF-PER-R16P-A10
    PCI + PCI-E[x1] Riser Card (For TF-TKS-T52-9458-001/002-DX; TF-TKS-T52-945T-002/003-DX)
  • TF-PER-V03B-A10-01
    SDVO to DVI Module (For TF-TKS-T52-9458T-001/002-DX)
