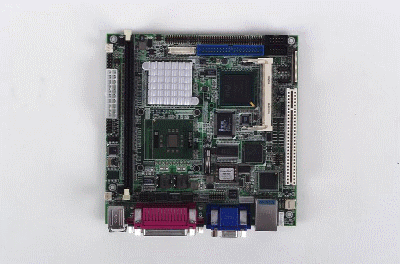

EMB-852T
Mini-ITX
Embedded Motherboard
with
Intel
Processors
Pentium M / Celeron M
|
|
|
|
 Features
- Intel® Pentium® M/ Celeron® M Processors Up to 2.0GHz
- Intel® 852GM +ICH4
- DDR 266 DIMM x 1, Up to 1GB
- 10/100Base-TX Ethernet x 1
- CRT, DVI, TV-out, Up to 24-bit Dual-channel LVDS (Emulated)
- AC97 5.1CH Audio
- Type II CompactFlash™x 1, EIDE x 1, Floppy Disk Drive x 1
- COM x 6, USB2.0 x 4, 8-bit Digital I/O x 1, Parallel x 1
- PCI x 1, Mini PCI x 1, PCMCIA Type II Slot x 2
- +5V Only Operation, AT, ATX
- 4/5/8 Wire Resistive Touch Screen Panel (Optional)
|
|
Introduction
The
EMB-852T is AAEON's first Mini-ITX CPU module. It adopts the Intel
852GM + ICH4 + ICP ULV 600MHz platform to provide a high performance
and low power solution. By the way, the ULV Celeron 600MHz processor
uses just 7W power consumption and in combination with the 852GM it can
be applied with high efficiency and in many different applications.
With one DIMM slot, up to 1GB of DDR memory module can be configured.
EMB-852T has the embedded VGA controller that shared memory up to
64MB with DVMT. LCD support permits the use of Dual LVDS 18/24/36/48bit
panels. CRT, TV-out, LVDS and TTL LCD panel interfaces are available to
support our customer's applications.
The Realtek ALC650 has a six channel, full duplex AC97 2.2
compatible stereo audio CODEC enabling a rich audio experience for PC
multimedia systems. S/PDIF audio input and output are available to
ensure the best audio transmission quality between other consumer
devices such as DVD players, home theater etc.
|
Specifications
Form Factor: Mini-ITX
Processor: Intel® Pentium® M/ Celeron® M processors, up to 2.0GHz, FSB 400MHz or onboard Intel® LV/ ULV Pentium® M/ Celeron® M processors
System Memory: 184-pin DDR DIMM x 1, Max. 1GB (DDR 333/400)
Chipset: Intel® 852GM + ICH4
I/O Chipset: ITE 8712 + Fintek F81216
Ethernet: Realtek 8100C ,10/100Base-TX Ethernet, RJ-45 x 1
BIOS: Award 512KB FLASH ROM
Wake On LAN: Yes
Watchdog Timer: Generates a time-out system reset
H/W Status Monitoring:
Supports power supply voltages, fan speed and temperature monitoring
Expansion Interface: Mini PCI x 1, PCI x 1, PCMCIA x 2
Battery: Lithium battery
Power Requirement: +5V/ AT/ATX
Power Consumption (Typical):
Pentium® M 2.0GHz, DDR 400 1GB
6.68A @ +5V
Board Size: 6.7"(L) x 6.7"(W) (170 mm x 170 mm)
Gross Weight: 1.1 lb (0.5 kg)
Operating Temperature: 32ºF ~ 140ºF (0ºC ~ 60ºC)
Storage Temperature: -40ºF ~ 176ºF (-40ºC ~ 80ºC)
Operating Humidity: 0% ~ 90% relative humidity, non-condensing
MTBF (Hours): 70,000
I/O
Storage: EIDE x 1 (UDMA 100 for two devices), Type II CompactFlash™ x 1, Floppy Disk Drive x 1
Serial Port: RS-232 x 5, RS-232/422/485 x 1
Parallel Port: SPP/ EPP/ ECP mode
USB: USB2.0 x 4
PS/2 Port: Keyboard x 1, Mouse x 1
Digital I/O: Supports 8-bit (Programmable)
IrDA: One IrDA Tx/Rx header
Audio: Mic-in, Line-in, Line-out, 5.1CH
Display:
Supports
CRT/LCD, CRT/TV, CRT/DVI, LCD/DVI and LCD/TV
simultaneous/ dual view displays
- Chipset: Intel® 852GM
- Memory: Shared memory up to 64MB with DVMT
- Resolutions:
Up to 1280 x 1024 @ 32 bpp colors for CRT
Up to 1280 x 1024 @ 24 bpp colors for LCD
- LCD Interface: Up to 24-bit dual-channel LVDS (Emulated)
- TV-out: Supports NTSC and PAL standard
|
Ordering Information
- TF-EMB-852T-A11
Mini-ITX, ULV Celeron® M 600, LCD-DVI, DDR, LAN, Audio, 6COM, 4USB2.0, CompactFlash™, Mini PCI, ATX, Rev. A1.1, Fanless
- TF-EMB-852T-A11-01
Mini-ITX, ULV Celeron® M 600, LCD-DVI, DDR, LAN, Audio, 6COM, 4USB2.0, CompactFlash™, Mini PCI, PCMCIA, ATX, Rev.A1.1, Fanless
- TF-EMB-852T-A11-02
Mini-ITX, Socket-478M, LCD-DVI-TV, DDR, LAN, Audio, 6COM, 4USB2.0, CompactFlash™, Mini PCI, ATX, Rev.A1.1
- TF-EMB-852T-A11-03
Mini-ITX, Socket-478M, LCD-DVI-TV, DDR, LAN, Audio, 6COM, 4USB2.0, Mini PCI, PCMCIA, ATX, Rev.A1.1
Optional Accessories
- 1702200201 - Conversion Cable for ATX to AT Power Supply
- TF-PER-C10L-A10 - Mini PCI 10/100Base-TX Ethernet Module with Realtek 8100C
- TF-PER-C10L-A10-01 - Mini PCI Gigabit Ethernet Module with Realtek 8110S
- TF-PER-C10L-A10-02 - Mini PCI 10/100Base-TX Ethernet Module with Intel® 82551QM
- TF-PER-C10L-A10-03 - Mini PCI Gigabit Ethernet Module with Intel® 82541GI
- TF-PER-C20S-A10 - Mini PCI 2-port SATA Module Rev.A1.0
- TF-PER-C30F-A10 - Mini PCI 3-port IEEE 1394a Module
- TF-PER-V30C-A11 - Mini PCI Single Channel Capture Module with Philips SAA7135
- TF-PER-C40C-A10 - Mini PCI 2-port RS-232 Module Rev. A1.0
- TF-PER-C40C-A10-01 - Mini PCI 4-port RS-232 Module Rev. A1.0
- TF-PER-1110-A10 - Riser Card for PCI, 2-slot
|
|
