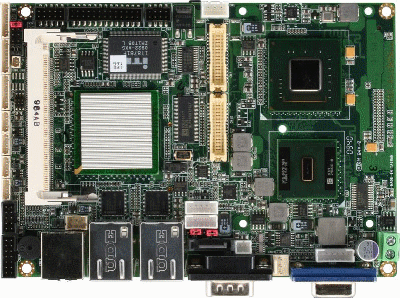

Click para visualizar melhor

GENE-9455 Rev.B
3.5" SubCompact Board with Onboard Intel Atom N270 Processor

Datasheet
GENE-9455B

    Features
  • Onboard Intel Atom N270 Processor With 1.6 GHz
  • Intel 945GSE + ICH7M
  • SODIMM DDR2 400/533, Max. 2 GB
  • Gigabit Ethernet x 2
  • CRT, Dual LVDS LCDs: 18-bit Dual-Channel LVDS LCD + 24-bit Dual-Channel LVDS LCD
  • AC97 2.3 Codec 2CH Audio
  • SATA 1.5Gb/s x 1, CompactFlash x 1
  • USB2.0 x 6, COM x 4, Parallel x 1, 8-bit Digital I/O
  • Mini PCI x 1, Mini Card x 1
  • +12V Only Operation
  • Onboard Trusted Platform Module (Optional)
    Specifications
    System

  • Form Factor: 3.5"
  • Processor: Onboard Intel Atom N270 Processor 1.6 GHz , FSB 533 MHz
  • System Memory: 200 pin DDR2 SODIMM x 1, Max. 2 GB (DDR2 400/533)
  • Chipset: Intel 945GSE + ICH7M
  • I/O Chipset: ITE8781
  • Ethernet: Intel 82574L, 10/100/1000Base-TX, RJ-45 x 2
  • BIOS: Award Plug & Play SPI BIOS - 2 MB Flash
  • Wake on LAN: Yes
  • Watchdog Timer: Generates a time-out system reset
  • H/W Status Monitoring:
    Supports power supply voltages and temperature monitoring
  • Expansion Interface: Mini PCI x 1, Mini Card x 1
  • Trusted Platform Module (TPM): Infineon SLB 9635 TT 1.2 (Optional)
  • Battery: Lithium battery
  • Power Requirement: +12V, AT/ATX
  • Power Consumption (Typical):
    Intel Atom N270, DDR2 533 2 GB
    1.55A @ +12V
  • Board Size: 5.75"(L) x 4"(W) (146mm x 101.6mm)
  • Gross Weight: 0.88lb (0.4kg)
  • Operating Temperature: 32°F ~ 140°F (0°C ~ 60°C)
  • Storage Temperature: -40°F ~ 176°F (-40°C ~ 80°C)
  • Operating Humidity: 0% ~ 90% relative humidity, non-condensing
  • MTBF (Hours): 70,000

    I/O

  • Storage: SATA 1.5Gb/s x 1, Type 2 CompactFlash? x 1
  • Serial Port: RS-232 x 3, RS-232/422/485 (auto flow) x 1
  • Parallel Port: SPP/EPP/ECP x 1
  • Universal Serial Bus: USB2.0 x 6
  • PS/2 Port: Keyboard x 1, Mouse x 1
  • Digital I/O: Supports 8-bit (Programmable)
  • Audio: Mic-in, Line-in, Line-out, CD-in

          Display: Supports CRT/LCD simultaneous/ dual view displays

  • Chipset: Intel 945GSE integrated
  • Memory: Shared system memory up to 224 MB/DVMT 3.0
  • Resolutions:
    Up to 1920 x 1440 for CRT
    Up to 1920x 1200 for LCD
  • LCD Interface:
    Dual LVDS LCDs: 18-bit Dual-Channel LVDS LCD + 24-bit Dual-Channel LVDS LCD
  Ordering Information
  • TF-GENE-9455-B10
    Intel Atom N270, Fanless, CRT+LVDS/LVDS+LVDS, 1st 2CH 18-bit, 2nd 2CH 24-bit,
    SATA x 1, CompactFlash x 1, Gigabit Ethernet x 2, USB x 6, RS-232 x 3,
    RS-232/422/485 x 1, Mini Card x 1, Mini PCI x 1, +12V/ AT/ATX, 0°C ~ 60°C
Optional Accessories
  • 1700050207 -- USB Cable, Length 20cm
  • 1701090150 -- COM Port Cable, Length 15cm
  • 1701260200 -- Parallel Port Cable, Length 20cm
  • 1709070500 -- SATA Cable, Length 50cm
  • 1709140181 -- Audio Cable, Length 18cm
  • 1702002010 -- Big Single row 4-Pin Power Input Cable for +12V Input, Length 10cm
  • 170220020B -- Conversion Cable for ATX Power Supply, Length 20cm
  • 1702150155 -- Power Cable for 2.5" SATA Hard Disk, Length 15cm
