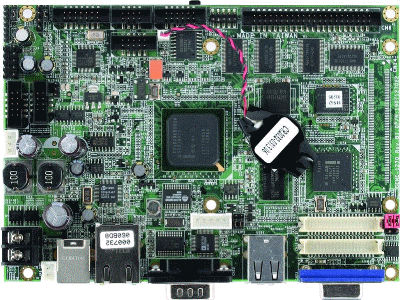

GENE-1270 Rev. B
3.5" SubCompact Board with Onboard RISC Marvell PXA270 Processor

• Features
• Specifications
• Ordering Information

    Specifications

System

• Form Factor: 3.5"
• Processor: Onboard Marvell® PXA270 520MHz Processor
• System Memory: Onboard 128MB SDRAM
• Ethernet Chipset: Davicom® DM9000AEP
• Ethernet Interface: 10/100Base-TX
• Boot Loader: Microsoft® Windows® CE or Linux
• Watchdog Timer: Generates a time-out system reset, setting via software
• Expansion Interface: SDIO, Type II CompactFlash™
• OS Support: Windows® CE 5.0/ Linux
• Power Requirement: +9V ~ +24V DC
• Power Consumption (Typical):
  520MHz, 128MB SDRAM
  +12V @ 0.29A
• Operating Temperature: 32ºF ~ 158ºF (0ºC ~ 70ºC)
• Board Size: 5.75" (L) x 4" (W) (146 mm x 101.6 mm)
• Gross Weight: 0.88 lb (0.4 Kg)
• Storage Temperature: -40ºF ~ 176ºF (-40ºC ~ 80ºC)
• Operating Humidity: 0% ~ 90% relative humidity, non-condensing
• MTBF (Hours): 100,000

  I/O


• Storage: SanDisk® mDOC 128MB, EIDE x 1
• Serial Port: RS-232 x 1, RS-232/485 x 1
• USB: USB1.1 host x 4, USB1.1 client x 1
• Digital I/O: Supports 10-bit (Programmable)
• Audio: Line-out, Stereo Amplifier included

          Display: Supports CRT & LCD

• Chipset: PXA270
• Resolutions: Up to 640 x 480 @ 16bpp colors
• LCD Interface: TTL TFT LCD
• Touch Screen: Supports 4-wire resistive touchscreen
