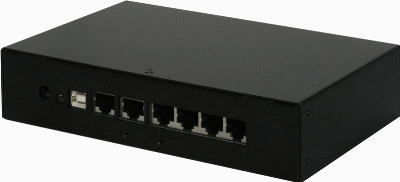

Chassis Kit for Single Board Computer GENE-1270B, Modelo TKS-G11

Gabinetes para SBC SBC - Tamanho Sub-Compacto
	TKS-G11
Features Specifications Ordering Information Datasheet	Fanless Chassis Kit for GENE-1270B
Features Fanless Design Supports CompactFlash™, SDIO RJ-45 x 1 for Ethernet COM x 1, USB Host x 2, USB Client x 1 Supports VGA Output +9V to +24V DC Input Desktop, Wallmount (Optional) or Bracket for VESA 75mm Mounting Holes of LCD Monitor (Optional)
Specifications System CPU Board Support: GENE-1270B Ethernet: RJ-45 x 1 Expansion Interface: Type II CompactFlash™, SDIO USB Port: USB Host Type A x 2, USB Client Type B x 1 Serial Port: D-Sub 9 x 1 VGA: D-Sub 15 x 1 Audio: Line out LED Indicator: Power LED x 1 Power Supply: +9V to +24V DC input Mechanical & Environmental Operating Temperature: 32^oF ~ 122^oF (0^oC ~ 50^oC) Vibration: 1g rms/ 5~500Hz/ random operation Dimensions: 7"(W) x 4.29"(D) x 1.57"(H) (178mm x 109mm x 40mm) Construction: Heavy duty steel Mounting: Bracket for 75mm x 75mm VESA mounting holes Color: Black EMC: CE /FCC class B
Ordering Information TF-TKS-G11-1270-001 Chassis Kit, GENE-1270-B10, PXA270-520MHz, 128MB RAM, 128MB Flash, WinCE 5.0 Pro TF-TKS-G11-1270-003 Chassis Kit, GENE-1270-B10, PXA270-520MHz, 128MB RAM, 128MB Flash, Linux Optional Accessories: 9761G11001 - Wallmount Kit 9761G11000 - Bracket for VESA 75mm Mounting Holes AP-LN9686666660- SDIO, 802.11 b/g, Wireless LAN Card (For TF-TKS-G11-1270-001)
