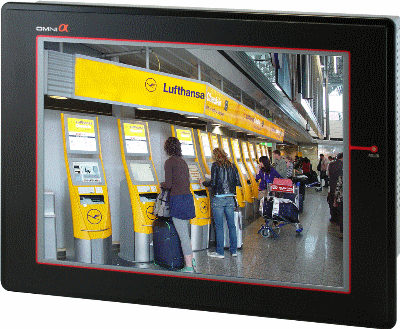

Click para ampliar a imagem AOP-9150

15" TFT LCD
Intel Atom
Processor-Based
Operator Panel PC
    Introduction

AOP-9150 operator panel PC is a high performance solution features all-in-one SBC with Intel® AtomTM N270 1.6 GHz processor. That is designed to serve as a human machine interface (HMI) and as a multimedia computer. It is a PC-based system with true-color and wide-view-angle TFT LCD display. Moreover, it equips one Mini-PCI slot for expansion. Onboard Ethernet controller, multi-COM port interfaces, and DVI. In addition, its "fit anywhere" design makes it very flexible and able to be used in many different kinds of installations. It can be wall mounted, panel mounted or stood upright on a desktop.


 For system integrators, this simple, complete, compact and highly integrated multimedia system let you easily build a panel PC into your applications. Common industrial applications include factory automation systems, precision machinery, and production process control. It is also suitable for many non-industrial applications, including interactive kiosk systems, entertainment management, and car park automation. Our panel PC is a reliable, cost-effective solution to your application's processing requirements.

    Features
  • 15" XGA TFT-LCD
  • Onboard Intel Atom Low Power Consumption Processor
  • Anti-Vibration Disk Drive Bay
  • Touch Screen Support
  • Windows XP Pro For Embedded, Windows XP Embedded, Windows 7 Support
  • Slim Type Panel PC With Fanless Solution

    Specifications

    System


  • Processor: Intel Atom N270 processor 1.6 GHz
  • System Memory: DDRII DIMM x 1,Max 2 G (DDRII 400/533 MHz)
  • LCD/CRT Controller: Intel 945GSE integrated
  • Ethernet: 10/100/1000Base-TX, RJ-45 x 2
  • I/O Port:
    RS-232 x 3, RS-232/422/485 x 1
    USB 2.0 x 4, Parallel x 1, VGA x 1, DVI x 1
    PS/2 keyboard x 1, PS/2 mouse x 1
    MIC-in, Line-out
  • Storage Disk Drive
    Slim CD-ROM / Combo / DVD
    Anti-vibration 2.5" Hard Disk Drive bay (SATA or IDE)
  • Expansion Slot: Mini-PCI slot x 1
  • OS Support: Windows® XP Pro for Embedded, Windows® XP Embedded, Windows® 7

          Mechanical

  • Construction: IP-65 Plastic Panel with metal back cover
  • Color: Black
  • Mounting: Panel Mount/VESA 100mm
  • Dimension: 16" (W) x 12.2" (H) x 2.6" (D) (407mm x 310.5mm x 67.2mm)
  • Carton Dimension: 20.67" (W) x 18.31" (H) x 9.1" (D) (525mm x 465mm x 230mm)
  • Gross Weight: 14.3 lb (6.5 Kg)
  • Net Weight: 12.1 lb (5.5 Kg)

          Environmental

  • Operating Temperature: 32oF ~ 104oF ( 0oC ~ 40oC)
  • Storage Temperature: -4oF ~ 122oF (-20oC ~ 50oC)
  • Operating Humidity: 10% to 90%@ 35oC, non-condensing
  • Vibration: Random operation 1 G, 5~500Hz
  • Shock: 15G peak acceleration (11 msec. Duration)
  • EMC: CE/ FCC Class A

          Power Supply

  • AC-DC Input: AC 100 ~230V
  • DC-DC Input: DC 9 ~30V

         LCD

  • Display: Type 15"
  • Max. Resolution: 1024 x 768
  • Max. Color: 16.7 Million
  • Dot Size: 0.297 x 0.297
  • Luminance (Typical): 250 nits
  • View Angle: 150o(H)/140o(V)
  • Back Light MTBF (Hours): 50,000

      Touchscreen

  • Type: 5-wire, Analog Resistive
  • Resolution: 2048 x 2048
  • Light Transmission: 80%
  • Lifetime: 35 million activations
  Ordering Information
  • TF-AOP-9150HT-A1-1010
    Fanless Operator Panel, Intel N270 1.6 GHz, 15" TFT, AC, R-TS
  • TF-AOP-9150HT-A2-1010
    Fanless Operator Panel, Intel N270 1.6 GHz, 15" TFT, DC, R-TS

           Optional Accessories:

  • 9741666646 -- Wireless LAN Kit, IEEE802.11b/g, with Antenna
  • ARM-WK075-0 -- Wallmount Kit with VESA 75/100mm Standards
  • ARM-LA0115 -- Swivel Arm with VESA 75/100mm Standards
  • 1702031802 -- Power Cord (US Type)
  • 1702031803 -- Power Cord (European Type)
  • 170203180E -- Power Cord (Japanese Type)
  • 9697C20012-DIP -- Card Reader
  • STAND-9150B0 -- Desktop Stand
  • Slim CD-ROM/Combo/DVD-ROM
  • 2.5" Hard Disk Drive
