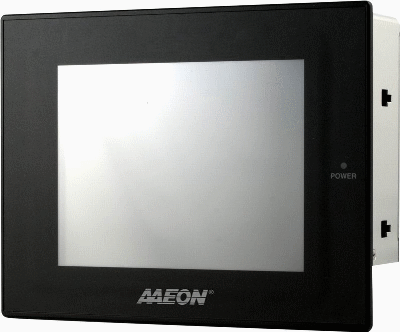

Click para ampliar a imagem AOP-8060XT

6" TFT-LCD
Windows XP Embedded
Operator Panel PC
    Introduction


The AOP-8060XT operator panel is a Intel 600MHz/ 1.3GHz processor computer that is designed to serve as a human machine interface (HMI). It is a PC-based system with 6.4" color TFT LCD display, on-board Ethernet controller, multi-COM port interfaces and an audio controller. With a built-in CompactFlash socket, the AOP-8060XT is as compact and user friendly as a multi-function computer. In addition, its "fit anywhere" design makes it very flexible and able to be used in many different kinds of installations. It can be wall mounted, panel mounted or DIN Rail mounted.



For system integrators, this simple, complete, compact and highly integrated system let you easily build an operator panel into your applications. Common industrial applications include factory automation systems, precision machinery, and production process control. It is also suitable for many non-industrial applications, including vending machine, and car park automation. Our operator panel is a reliable, cost-effective solution to your application's processing requirements.


    Features
  • Fanless Design
  • Onboard Intel® Celeron® M 600MHz Processor
  • 6.4" VGA Color TFT LCD Display
  • Slim, Fanless, Rugged Design
  • Touch Screen and CompactFlash™ Card Support
  • Windows® XP Embedded Support
  • 10/100Base-TX Ethernet
  • Dual Independent Displays

    Specifications

    System


  • Processor: Intel Celeron M 1.3G/ 600MHz
  • System Memory: Onboard 256MB
  • Storage Memory: 512 MB CompactFlash
  • LCD/CRT Controller: Intel 852GM + Chrontel7009
  • Ethernet: Intel 82562, 10/100Base-TX, RJ-45 x 1
  • I/O Port:
    RS-232 (DB-9) x 1
    USB2.0 x 2
    VGA x 1
    Audio Line out x 1
    PS/2 (keyboard + mouse Mini-Din port) x 1
  • Solid Storage Disk: Type II CompactFlash Open slot
  • Expansion Slot: Mini-PCI slot, CompactFlash? slot
  • OS Support: Windows XP, Windows XP Embedded

          Mechanical

  • Construction: Aluminum back cover
    IP-65 certified Plastic front panel
  • Color:
    Front Bezel: Black
    Back Cover: Silver
  • Mounting: VESA 75
  • Dimension: 7.8" x 6" x 2.05" (198mm x 152mm x 52mm)
  • Carton Dimension: 11.2" x 7.36" x 9" (284mm x 187mm x 228mm)
  • Gross Weight: 3.3 lb (1.5 kg)
  • Net Weight: 2.2 lb (1 kg)

          Environmental

  • Operating Temperature: 32oF ~ 104oF (0oC ~ 40oC)
  • Storage Temperature: -4oF ~ 140oF (-20oC ~ 60oC)
  • Storage Humidity: 10~90% @ 40oC, non-condensing
  • Vibration: Random Operation, 1G, 5~500Hz
  • Shock: 15G peak acceleration (11m sec. duration) / operation
  • EMC: CE/FCC Class A

          Power Supply

  • DC-DC Input, 25W
    Input: 5V DC

         LCD

  • Display Type: 6.4" color TFT LCD
  • Max. Resolution: 640 x 480
  • Max. Color: 262K
  • Dot Size: 0.204 x 0.204
  • Luminance: 250 cd/m2 (Typical)
  • View Angle: 130o(H)/ 110o(V)
  • Back Light MTBF (Hours): 20,000

      Touchscreen

  • Type: 4-wire, Analog Resistive
  • Resolution: 2048 x 2048
  • Light Transmission: > 79%
  • Lifetime: 1 million activations
  Ordering Information
  • TF-AOP-8060XT-P1-1110
    Intel® Celeron® M 1.3GHz Operator Panel with 6.4" LCD, 256 RAM, Touch Screen and Windows® XP Embedded (Eng) on 512MB CompactFlash™
  • TF-AOP-8060XT-P2-1110
    Intel® Celeron® M 600MHz Fanless Operator Panel with 6.4" LCD, 256 RAM, Touch Screen and Windows® XP Embedded (Eng) on 512 MB CompactFlash™

           Optional Accessories:

  • ARM-WK075-0 - Wallmount Kit with VESA75/100mm Standards
  • ARM-DR075-0 - DIN Rail Kit with VESA 75/100mm Standards
  • 1702031802 - Power Cord (Us Type)
  • 1702031803 - Power Cord (European Type)
  • 170203180E - Power Cord (Japanese Type)
  • 1757902500 - 25W AC Input Adapter (DC 5V output)
  • 1702021201 - DC Power Cable w/ lockable Connector
