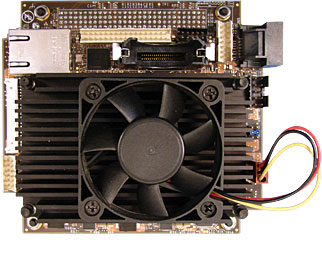

Wildcat
PCI-104 SBC with Intel Core 2 Duo processor



Very high-performance 2.27 GHz (commercial temp.) Intel Core 2 Duo processor
with up to 4 GB RAM, gigabit Ethernet, MiniBlade flash socket, and SPX expansion
Extended temperature version available

  Highlights
  • PCI-104 Form Factor
    Industry standard expandable, compact, highly rugged format.
  • Intel® Core™2 Duo Processor
    Up to 2.27 GHz performance.
  • High-performance Video
    3D video acceleration (Gen 5.0). Analog and LVDS flat panel outputs.
  • Network Support
    Gigabit Ethernet with remote boot support.
  • System RAM
    Up to 4 GB DDR3 RAM for system flexibility.
  • USB I/O
    Four USB 2.0 ports support keyboard, mouse, and other devices.
  • Device I/O
    Serial port, dual SATA interface, and HD audio support.
  • Flash Memory
    MiniBlade™ socket for high-reliability flash storage.
  • Extended Temperature Version
    -40° to +85°C operation for harsh environments.
  • MIL-STD-202G
    Qualified for high shock/vibration environments.
  • SPX™ Expansion
    Supports expansion with versatile SPX add-on I/O modules.
  • OS Compatibility
    Windows XP, Windows Embedded XPe/CE, Linux, VxWorks, QNX, DOS

Description

Overview
The Wildcat is an embedded single board computer (SBC) featuring an Intel 2nd generation Core 2 Duo processor. Based on the PCI-104 industry standard form factor, the Wildcat supports the PCI stackable expansion bus on a 4.21” by 3.78” footprint. With its combination of ultra-high performance (up to 2.27 GHz), mid-range power consumption (19.5W typ.), ruggedness, and compact size, the Wildcat is an ideal embedded computer solution for medical, security, defense, transportation, and industrial markets. Potential applications include flight navigation, guidance systems, and evolving applications that rely on fast on-board processing of large amounts of data.

Like all VersaLogic products, the Wildcat is designed to support OEM applications where high reliability and long-term availability are required. From application design-in to 5+ guaranteed years of production life, the Wildcat provides a durable embedded computer solution with an excellent cost of ownership. The Wildcat is manufactured and tested to the highest quality standards and is fully RoHS compliant. Customization is available, even in low OEM quantities.

Details
Driven by a 2nd generation Intel Core 2 Duo processor designed specifically for embedded applications, the Wildcat runs up to 2.27 GHz. Enhanced Intel SpeedStep® technology provides dynamic processor frequency scaling to meet instantaneous performance needs while minimizing power draw and heat dissipation. This allows users to fine-tune the balance of power conservation and performance to suit their application needs.

Intel’s GS45 + ICH9M chipset offers graphics core speeds up to 533 MHz for high-end graphics, advanced 3D rendering, high-definition video playback, and media acceleration for video CODECs. Analog VGA and LVDS flat panel video interfaces support flexible display configurations including Extended Desktop, Clone, and Twin display modes.

Wildcat’s standard on-board features include gigabit Ethernet, a SO-DIMM socket for up to 4 GB DDR3 RAM, four USB 2.0 ports, one serial port, dual SATA interface, support for HD audio, and a MiniBlade socket for removable flash storage. Support for keyboard, mouse, and other devices is provided via USB. VersaLogic’s SPX expansion interface creates additional access to cost-effective plug-in I/O solutions.

Available in both standard (0° to +60°C) and extended (-40° to +85°C) temperature versions; the Wildcat meets MIL-STD-202G specifications for shock and vibration. The Wildcat supports reliable field operation with transient voltage suppression (TVS) for electrostatic discharge (ESD) protection.

The Wildcat features an embedded BIOS with OEM enhancements from Phoenix Technologies. The field-reprogrammable BIOS supports custom defaults and the addition of firmbase applications for security processes, remote booting, and other pre-OS software functions. The Wildcat is compatible with a variety of popular operating systems including Windows, Windows Embedded, Linux, VxWorks, and QNX.

Ordering Information

Model Processor Speed Power Operating Temp. Cooling
VL-EPMp-34S Intel Core 2 Duo 2.27 GHz 19.5W (typ.) 0° to +60°C Fan
VL-EPMp-34E Intel Core 2 Duo 1.2 GHz 12.8W (typ.) -40° to +85°C Fan

Accessories

Part No. Description
VL-CBR-0401* 6.25” ATX to SATA power adapter cable
VL-CBR-0701* 19.75” SATA cable
VL-CBR-1008* ATX to 10-pin power cable
VL-CBR-1201* 12-pin 2 mm latching / 15-pin VGA adapter cable
VL-CBR-1401 Cable assembly for two SPX modules
VL-CBR-1402 Cable assembly for four SPX modules
VL-CBR-2010 20” 18-bit LVDS flat panel cable (Hirose)
VL-CBR-2011 20” 18-bit LVDS flat panel cable (JAE)
VL-CBR-2012 20” 24-bit LVDS flat panel cable (Hirose)
VL-CBR-2014 LVDS to VGA adapter board
VL-CBR-3406* I/O cable set and paddleboard
VL-CFA-2A CompactFlash adapter (SATA)
VL-CKR-WILD Development cable kit
VL-ENCL-5x Development enclosure
VL-F23-xxxx MiniBlade module (USB)
VL-HDS35-320 320 GB 3.5” SATA hard drive
VL-HDW-105* SUMIT standoff package (metric thread)
VL-HDW-106 SUMIT standoff package (English thread)
VL-MM7-xxxx DDR3 SDRAM module
VL-SPX-x SPX expansion modules

* Included in VL-CKR-WILD cable kit

Specifications

General Board Size PCI-104 compliant: 107 mm x 96 mm (4.21" x 3.78")
Processor Intel Core 2 Duo (SP9300). 1067 MHz FSB. 6 MB cache. Temperature protected.
Chipset GS45 + ICH9M
Power
Requirements
+5V running Windows XP with 1 GB RAM, keyboard, and mouse:
Idle Typical Max
VL-EPMp-34S 2.4A (12W) 3.9A (19.5W) 5.4A (27W)
VL-EPMp-34E 1.8A (9W) 2.6A (12.8W) 3.3A (16.5W)
System Reset &
Hardware Monitors
Watchdog timeout. VCC sensing (resets below 4.7V typ.).
Stackable Bus PCI: 3.3V signaling, +5V tolerant
Expansion VersaLogic SPX interface
RoHS RoHS (2002/95/CE) compliant
Environmental Storage Temperature -40° to +85°C
Airflow Requirements Free air from -40° to +85°C
Thermal Shock 5°C/min. over operating temperature
Humidity Less than 95%, noncondensing
Vibration, Sinusoidal Sweep MIL-STD-202G, Method 204, Modified Condition A: 2g constant acceleration from 5 to 500 Hz, 20 minutes per axis
Vibration, Random MIL-STD-202G, Method 214A, Condition A: 0.02g˛/Hz (5.35g rms), 15 minutes per axis
Mechanical Shock MIL-STD-202G, Method 213B, Condition J: 30g half-sine, 11 ms duration per axis
Memory System RAM One SO-DIMM socket. Up to 4 GB DDR3 SDRAM.
Video General Integrated high-performance video. Intel GMA 4500 MHD graphics core. Analog and flat panel video interfaces support Extended Desktop, Clone, and Twin display modes. Optional video adapter card converts LVDS output to VGA for dual VGA operation.
VRAM Up to 512 MB shared DRAM
Desktop Display Interface* Standard analog output (VGA)
OEM Flat Panel Interface 18/24-bit LVDS interface. CMOS-selectable TFT panel types.
Mass Storage Hard Drive Dual SATA interface (Revision 2.0)
Flash One MiniBlade socket (USB signaling)
Network Interface Ethernet* One autodetect 10BaseT/100BaseTX/1000BaseT port
Network Boot Option Intel boot agent (included): supports PXE protocol. Argon Managed Boot Agent (optional with royalty fee): supports PXE, RPL, NetWare, TCP/IP (DHCP, BOOTP) remote boot protocols.
Device I/O USB*‡ Four USB 2.0/1.1 ports
Serial* One RS-232/422/485 selectable port. 16C550 compatible. 460 Kbps.
Audio‡ Digital HD audio via external codec
Software BIOS Phoenix Technologies Embedded BIOS with OEM enhancements. Field reprogrammable. Support for USB keyboard/mouse and USB boot. User-configurable CMOS defaults.
Operating Systems Compatible with most x86 operating systems, including Windows, Windows Embedded, Linux, VxWorks, and QNX

*TVS protected port (enhanced ESD protection)
‡Power pins on this port are overload protected
Data represents standard operation at 25°C with 5V supply unless otherwise noted. Specifications are subject to change without notification. Intel and Core are trademarks of Intel Corp. MiniBlade is a trademark of the SFF-SIG. SPX is a trademark of VersaLogic Corp.
