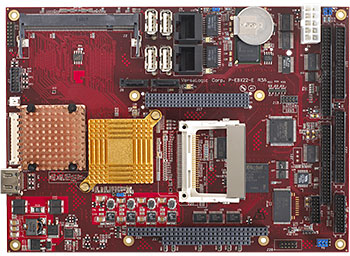

Sidewinder
VIA Eden 1.2 GHz
High Performance SBC
|
|
|
High performance, power efficient board with no moving parts.
|
|
Highlights
-
VIA Eden 1.2 GHz Processor
High performance, power efficient CPU.
-
Video
Integrated video with MPEG-2/4 and WMV9 video decoding/acceleration.
-
Ethernet Interface
Dual onboard 10/100 Ethernet provides easy network access and boot ROM support.
-
USB Ports
Six USB 2.0/1.1 ports provide flexible I/O options for external devices.
-
Digital and Analog I/O
32-line digital I/O port. 8-channel 12-bit analog input port.
-
CompactFlash Socket
Removable non-volatile media has no moving parts and is bootable.
-
Fanless Operation
Standard-temperature model has no moving parts.
-
Power Management
Suspend-to-RAM function allows extreme power savings during system standby.
-
Embedded BIOS
OEM embedded features and firmware support. Field-upgradeable. Customization available.
-
Cost Effective Expansion
PC/104, PC/104-Plus, and SPX™ expansion sites.
-
RoHS-compliant
Meets EU Directive 2002/95/EC.
- OS Compatibility: Windows CE/XP/XPe, Linux, VxWorks, QNX, DOS
|
|
Description
Overview
The EBX-compliant Sidewinder is a feature-packed single board
computer (SBC) that uses a VIA Eden 1.2 GHz processor, which offers
very high per-watt performance, excellent heat dissipation, and
outstanding cost of ownership. The platform incorporates dual 10/100
Ethernet, a CompactFlash socket, and integrated I/O including 8-channel
12-bit analog input, 32-channel digital I/O, and two counter/timers.
The Sidewinder design also supports PC/104, PC/104-Plus and SPX
expansion sites and incorporates six USB 2.0 ports to create a highly
reliable, cost-effective SBC. The RoHS-compliant Sidewinder is ideal
for new applications requiring higher performance coupled with lower
power consumption, rock solid reliability, and compatibility with
standard software applications and leading operating systems.
Details
The Sidewinder is powered by the VIA Eden 1.2 GHz processor, a very
high performance-per-watt processor. The companion digital media
chipset integrates the VIA UniChrome Pro II 2D/3D graphics core and an
array of high-end video technologies, including hardware MPEG-2/4 and
WMV9 video decoding acceleration. The Sidewinder can be configured for
use with either standard desktop-type displays or LVDS flat panels. For
cost-effective I/O expansion without the need for additional PC/104
modules, the Sidewinder includes VersaLogic’s new SPX interface. SPX
modules provide a low-cost flexible solution for adding additional I/O
such as analog and digital I/O, CANbus interface, relay switching, and
more. The use of SPX expansion modules can dramatically reduce both
development time and target system costs for most projects.
The Sidewinder features General Software’s Embedded BIOS with OEM
enhancements. This field-upgradeable BIOS supports custom defaults and
the addition of firmware and firmbase applications for security, remote
booting, and other pre-OS software functions. The Sidewinder is
compatible with a variety of popular operating systems, including
Windows XP/CE, QNX, VxWorks, and Linux. Dual Ethernet channels, USB 2.0
ports, RS-232 and RS-422 COM ports make the Sidewinder an ideal
solution for industrial control, medical devices, and other embedded
applications where high reliability and long-term availability are
required.
Like all VersaLogic products, this efficient SBC is designed from
the ground up for long-term availability. From application design-in to
5+ years of production life, the quality and longevity provide a
cost-effective, long-term solution. Customization is available on as
few as 100 pieces. The Sidewinder is manufactured and tested to the
highest quality standards, is compliant with RoHS regulations, and is
backed by a two year limited warranty.
|
|
Ordering Information
EBX-22g
… VIA Eden 1.2 GHz, Standard Operating Temp.
Accessories |
VL-CBR-2022* |
Power adapter cable, 10-pin (RoHS) |
VL-CBR-1201* |
Video adapter cable, 12-pin 2 mm latch VGA (RoHS) |
VL-CBR-5009* |
Utility I/O cable assembly (RoHS) |
VL-CBR-4405* |
44-pin 2 mm IDE adapter PCB (RoHS) |
VL-CBR-4406* |
IDE data cable 18" 44-pin latch IDE (RoHS) |
VL-CBR-0401 |
6.25" ATX to SATA power adapter cable (RoHS) |
VL-CBR-0701* |
19.75" SATA cable (RoHS) |
VL-HDW-101* |
Standoff Pkg, Metric Thread |
VL-CKR-SIDE |
Development cable kit (RoHS) |
VL-CBR-4004 |
I/O cable assembly and paddleboard (RoHS) |
VL-CBR-2003 |
20-pin 2 mm Fem D-sub LPT (RoHS) |
VL-CF-CLIP1 |
Retention clip for CompactFlash |
VL-CBR-2010 |
20" 18-bit LVDS Flat Panel, Hirose (RoHS) |
VL-CBR-2011 |
20" 18-bit LVDS Flat Panel, JAE (RoHS) |
VL-HDS35-320 |
320 GB 3.5” SATA hard drive |
VL-MM6D-xxx |
DDR2 PC2-4200 system memory |
VL-ENCL-5c |
Development enclosure |
VL-SPX-x |
SPX expansion modules (RoHS) |
VL-CBR-1401 |
Cable Assembly, for two SPX Modules (RoHS) |
VL-CBR-1402 |
Cable Assembly, for four SPX Modules (RoHS) |
VL-DEV-CD-L5 |
Debian Linux Board Support Package |
* Included in CKR-SIDE Cable Kit |
|
|
Specifications
General |
Processor |
VIA Eden 1.2 GHz |
Chipset |
VIA CX700M |
Power Requirements |
+5.0V±5%@2A (10W) typ. with 256 MB RAM, keyboard, mouse, running Windows XP |
System Reset and Hardware Monitors |
Watchdog timeout
Voltage rail monitoring |
Compatibility |
EBX: Mechanically compatible.
PC/104-Plus PCI expansion: 3.3V signaling, PCI 2.2 compatible.
PC/104 ISA expansion:
Limited support via LPC bridge
SPX: Compliant
RoHS: Compliant |
Mechanical |
Board Size |
5.75” x 8” (146 mm x 203 mm) |
Storage Temperature |
-40° to +85°C |
Operating Temperature |
0° to +60°C (EBX-22g) |
Thermal Shock |
5°C/min over operating temperature |
Vibration, Sinusoidal Sweep |
2g constant acceleration from 5 to 500Hz, 20 minutes per axis, MIL-STD-202G, Method 204, Modified Condition A |
Vibration, Random |
.02g²/Hz (5.35g rms) 15 minutes per axis, MIL-STD-202G, Method 214A, Condition A |
Mechanical Shock |
30g half-sine,
11 ms duration per axis, MIL-STD-202G, Method 213B, Condition J |
Humidity |
Less than 95%, noncondensing |
Memory |
System RAM |
One
200-pin SODIMM socket. Up to 1 GB of DDR2 PC2-4200 RAM. |
Flash Interface |
CompactFlash
socket |
Video |
General |
High-performance
video.
Up to 1280 x 1024 with 24-bit color.
2D/3D MPEG-2/4 |
Desktop Display Interface |
Analog output, 12-pin 2 mm connector.
Digital output, HDMI connector (video only).
|
OEM Flat Panel Interface |
18/24-bit single channel LVDS output on 20-pin 1.25 mm connector.
CMOS-selectable TFT panel types. |
Network
Interface |
Ethernet* |
Dual Autodetect 10BaseT / 100BaseTX ports. Vertical RJ-45 connectors. |
Network Boot Option |
Firmware-based Argon Managed Boot Agent. Supports PXE, RPL, NetWare, TCP/IP (DHCP, BOOTP) remote boot protocols. |
Device
I/O |
USB* ‡ |
Six USB 2.0/1.1 ports |
IDE Interface |
ATA 100
compatible. |
SATA
Interface |
Supports
two SATA drives, two vertical SATA connectors. |
COM 1 & 2 Interface* |
RS 232, 16C550 compatible, 115K baud max. |
COM 3 & 4 Interface* |
RS 232/422/485 selectable, 16C550 compatible, 460K baud max. |
LPT Interface* |
Bi-directional/EPP/ECP/floppy
mode compatible. |
Digital I/O |
32-line digital I/O port, 3.3V only. |
Analog Input |
8-channel 12-bit port. |
PWM Outputs and Tach Inputs |
3 PWM (pulse width modulation) outputs and tachometer inputs. |
SPX Interface ‡ |
Up to four SPX devices |
Audio |
AC`97 stereo line in, stereo line out |
AT Peripherals* ‡ |
Keyboard and PS/2 mouse port. |
Software |
Operating Systems |
Compatible with most x86 operating systems, including Windows 95/98/NT/CE/XP, QNX, VxWorks, and Linux. |
BIOS |
General
Software's Embedded BIOS with OEM enhancements. Field reprogrammable. |
*TVS protected port (Enhanced ESD protection).
‡ Power pins on this port are protected with a self-resetting fuse.
Data represents standard operation at 25°C with 5.0V supply unless
otherwise noted. Specifications are subject to change without notice.
PC/104 is a trademark of the PC/104 Consortium. SPX is a trademark of
VersaLogic Corporation. |
|
|
|
