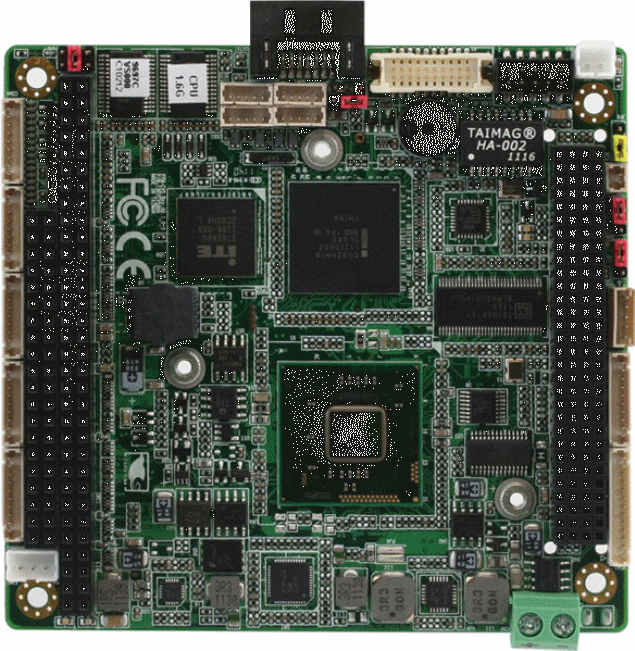

PFM-CVS
PC/104+ CPU Module with
Intel® Atom™ N2600 Processor

    Features
  • Intel Atom N2600 Dual Core 1.6GHz Processor
  • Intel Atom N2600 + NM10
  • 204-pin DDR3 800/1066MHz SODIMM x 1, Max. 2GB
  • 10/100/1000Base-TX Ethernet x 1
  • CRT, 18-bit Single Channel LVDS LCD
  • SATA 3.0Gb/s x 1
  • USB2.0 x 4, COM x 4
  • PC/104+ Slot, Half-Size mSATA x 1/ Mini Card (Optional)
  • +12V Only Operation
  • AAEON Hi-Safe SDK/Utility Supported
    Specifications
    System
  • Form Factor: PC/104
  • Processor: Intel Atom N2600 1.6GHz Processor
  • System Memory: DDR3 800/1066MHz SODIMM x 1, Max. 2 GB
  • Chipset: Intel Atom N2600 + NM10
  • I/O Chipset: FinTech F81866D
  • Ethernet: Realtek RTL8111E, 10/100/1000Base-TX x 1
  • BIOS: AMI BIOS – 32MB ROM
  • Wake on LAN: Yes
  • Watchdog Timer: Generates a time-out system reset
  • H/W Status Monitoring: Supports power supply voltage and temperature monitoring
  • Expansion Interface: PC/104+, mSATA/ Mini Card (optional) (for Half Size)
  • Battery: Lithium battery
  • Power Requirement: +12V, AT (Default)/ATX
  • Power Consumption (Typical):
    Intel Atom N2600, 1.6 GHz, DDR3 1066 2GB = 1.2A @ +12V
  • Board Size: 3.55" x 3.77" (90mm x 96mm)
  • Gross Weight: 0.35 lb (0.16 kg)
  • Operating Temperature: 32°F ~ 140°F (0°C ~ 60°C )
  • Storage Temperature: -40°F ~185°F (-40°C ~ 85°C )
  • Operating Humidity: 0%~90% relative humidity, non-condensing
  • MTBF (Hours): 70,000

    I/O

  • Storage: SATA 3.0Gb/s x 1, Half-Size mSATA x 1
  • Serial Port: RS-232 x 3, RS-232/422/485 x 1
  • Universal Serial Bus: USB 2.0 x 4
  • Digital I/O: 8-bit Digital I/O (Programmable)

    Display    : Supports CRT/ LCD simultaneous /dual view displays

  • Chipset: Intel Atom N2600 Processor integrated graphic
  • Resolutions:
    Up to 1920 x 1200 @ 60Hz for for VGA
    Up to 1366 x 768 (18-bit)@ 60Hz for LVDS
  • LCD Interface: 18-bit, single channel LVDS
  Ordering Information
  • TF-PFM-CVS-A10-10
    Intel Atom N2600, SODIMM, Fanless, SATA x 1, mSATA x 1 (Half size), CRT + LVDS,
    1CH 18-bit LVDS, GbE x 1, USB x 4, RS-232 x 3, RS-232/422/485 x 1, PC/104+,
    +12V, AT/ATX, 0°C ~ 60°C

      Optional Accessories

  • 9681CVS000: (TF) Cable Kit for PFM-CVS-A10-10

            Cable Kit
           1702002010   (TF)Power Cable, 1 x 2P Pitch=5.0mm Housing, 10cm (12V only) x 1
           1709150151   (TF)CRT Cable, 1 x 13P Pitch=1.25mm Housing,15cm x 1
           1701010150   (TF)FLAT Cable, 1 x 10P Pitch=1.25mm Housing, 15cm x 1
           1700100201   (TF)LAN Cable, RJ45 10P 2.0mm Housing, 20cm x 1
           1705050153   (TF)Inverter Cable, 1 x 5P Pitch=1.5mm Housing, 15cm x 1
           1700050207   (TF)USB Cable, 1 x 5P Pitch=1.25mm Housing, 20cm x 4
           1701090150   (TF)Flat Cable, D-Sub 9(M), 9P Housing, 9P 1.25mm pitch Housing, 15cm x 4
           1709070500   (TF)SATA Cable, 7P Pitch 1.27mm, 50cm x 1
           1702150155   (TF)Power Cable, 15P SATA (F), 2P 2.0mm Housing (PH), 15cm x 1
           1701010150   (TF)Flat Cable, 1 x 10P Pitch=1.25mm Housing, 15cm x 1
           1701100155   (TF)Flat Cable, Front Panel 10P, Pitch=1.25mm Housing, 15cm x 1
           1703020156   (TF)Buzzer Cable, 2P, Pitch=1.25mm Housing, 15cm x 1

      Packing List

  • 9657666600: Jumper Cap
  • Product CD: PFM-CVS with Heatsink
