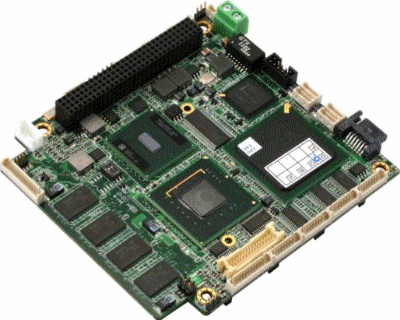

PFM-945C
PCI/104 CPU Module with Onboard
Intel Atom N270
Processor

    Features
  • Onboard Intel® Atom™N270 Processor
  • Intel® 945GSE + ICH7M
  • Onboard DDRII 400/533 Memory Up to 1GB
  • 10/100Base-TX Ethernet x 1
  • CRT & Up to 18-bit Dual-Channel LVDS
  • AC97 2.3 Codec Audio
  • SATA x 1, CompactFlash™ x 1
  • USB2.0 x 4, COM x 4
  • PCI/104-Express Expansion
  • +12V Only Operation, AT/ATX Power Type
    Specifications
    System

  • Form Factor: PC/104
  • Processor: Onboard Intel® Atom™ N270 (1.6GHz) Processor
  • System Memory: Onboard DDR2 400/533 Memory 512 MB/ 1 GB
  • Chipset: Intel® 945GSE + ICH7M
  • I/O Chipset: SMSC SCH3114
  • Ethernet: Intel® 82551ER, 10/100Base-TX x 1
  • BIOS: Award Plug & Play BIOS - 2MB ROM
  • Wake on LAN: -
  • Watchdog Timer: Generates a time-out system reset
  • H/W Stauts Monitoring: Supports power supply voltages and temperature monitoring
  • Expansion Interface: PCI/104-Express (PCI-104 + PCe/104)
  • Battery: Lithium battery
  • Power Requirement: +12V, AT/ATX
  • Power Consumption (Typical):
    Intel Atom N270 1.6GHz, DDRII 533 -- 1.56A @ +12V
  • Board Size: 4.05" (L) x 3.77" (W) (102.8mm x 96mm)
  • Gross Weight: 0.33 lb (0.15 Kg)
  • Operating Temp.: 32oF ~ 140oF (0oC ~ 60oC)
  • Storage Temp.: -40oF ~ 176oF (-40oC ~ 80oC)
  • Operating Humidity: 0% ~ 90% relative humidity, non-condensing
  • MTBF (Hours): 52,000

    I/O

  • Storage: SATA x 1, CompactFlash™ x 1
  • Serial Port: RS-232 x 3, RS-232/422/485 x 1
  • USB: USB2.0 x 4
  • PS/2 Port: Keyboard+Mouse x 1
  • Digital I/O: N/A
  • Audio: Line-in, Line-out, Mic-in & CD-in

    Display
    : Supports CRT/ LCD simultaneous / dual view display

  • Chipset: Intel® 945GSE + ICH7M
  • Memory: Shared system memory up to 254MB
  • Resolutions:
    Up to 1920 x 1440 @ 24bpp colors for CRT
    Up to 1600 x 1200 @ 24bpp colors for LCD
  • LCD Interface: Up to 18-bit Dual-channel LVDS
  Ordering Information
  • TF-PFM-945C-A10
    PC/104 Board, Intel Atom N270 1.6GHz, 512MB, DDR II, LAN, Audio, 4 COM, 4 USB, CompactFlash, PCI-104, ATX/AT, Rev. A1.0
  • TF-PFM-945C-A10-01
    PC/104 Board, Intel Atom N270 1.6GHz, 1G, DDR II, LAN, Audio, 4 COM, 4 USB, CompactFlash, PCI/104-E, ATX/AT, Rev. A1.0 (Full Cable Kit)

Optional Accessories

  • TF-PFM-P13DW2-A10-01 - PC/104 Board, Power Supply Module with +5V & +12V Output
    PCI-104 RevA1.0, WiTAS II
  • 1702150121 -- SATA Power Cable
  • 1700100200 -- LAN Cable
  • 1700050207 -- USB Cable
  • 1701090150 -- COM Cable
  • 1709140303 -- Audio Cable
  • 1705050153 -- LCD Inverter Cable
