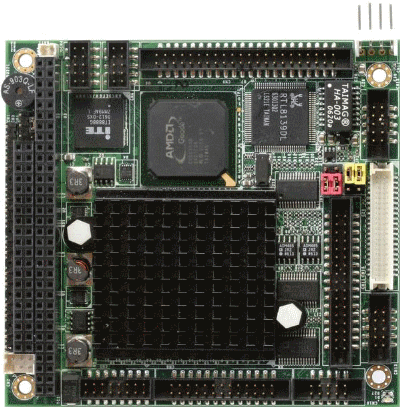

PFM-540I Rev. A
PC/104 CPU Module with
AMD Geode LX800 Processor
|
|
|
Features
- Onboard AMD Geode™ LX800 Processor
- AMD LX800 + CS5536
- SODIMM x 1, DDR333 Up to 1 GB, DDR400 Up To 512 MB
- 10/100Base-TX Ethernet x 1
- 18/24-bit TTL LCD Support
- EIDE x 1, CompactFlash™ x 1
- USB2.0 x 4, COM x 2 And Parallel x 1
- PC/104 Expansion
- +5V Only Operation, AT Power Type
- Low Power Consumption
|
Specifications
Form Factor:
PC/104
Processor:
Onboard AMD Geode™ LX800 (500 MHz) Processor
System Memory:
200-pin DDR SODIMM x 1, Max. 512 MB
(Only supports memory chips on upper side, not both sides)
Chipset:
AMD LX800 + CS5536
I/O Chipset:
ITE IT8712F-A
Ethernet:
Realtek RTL 8139DL, 10/100Base-TX
BIOS:
Award 512 KB FLASH ROM
Watchdog Timer:
Generates a time-out system reset
H/W Status Monitoring:
Supports power supply voltages and temperature monitoring
Expansion Interface:
PC/104 socket x 1
Power Requirement:
+5V/AT
Power Consumption (Typical):
AMD Geode™ LX800 500 MHz, DDR400 512 MB =
1.53A @ +5V
Battery:
Lithium battery
Board Size:
3.55” (L) x 3.775” (W) (90mm x 96mm)
Gross Weight:
0.25 lb (0.11 kg)
Operating Temperature:
32oF ~ 140oF (0oC ~ 60oC)
Storage Temperature:
-40oF ~ 176oF (-40oC ~ 80oC)
Operating Humidity:
0% ~ 90% relative humidity, non-condensing
MTBF (Hours):
100,000
I/O
Storage:
EIDE x 1 (UDMA 33 for one device),
Type 1 CompactFlash™ x 1,
Floppy Disk Drive x 1
Serial Port: RS-232 x 1, RS-232/422/485 x 1
Parallel Port:
SPP/ EPP/ ECP mode
USB:
USB2.0 x 4
PS/2 Port:
Keyboard + Mouse x 1
IrDA:
One IrDA Tx/Rx header
Display: Supports CRT/
LCD simultaneous display
Chipset:
AMD LX800
Memory:
Shared system memory up to 254 MB
Resolutions:
Up to 1600 x 1200 @ 32bpp for CRT
Up to 1024 x 768 @ 24bpp for LCD
LCD Interface:
18/24-bit TTL TFT LCD
|
Ordering Information
- TF-PFM-540I-A10 (Fanless)
PC/104 Board, AMD LX800, LCD, DDR, LAN, 2 COM, 4 USB, CompactFlash™,
PC/104, AT, Rev A1.0
Optional Accessories
- TF-PCM-3538T-A10 --
TTL to LVDS Transmitter Module Rev. A1.0
|
|
