Single Board Computer, Embedded System, CPU Intel 3rd Gen i3/i5/i7, Modelo PCM-QM77

SBC - Tamanho Compacto/EBX

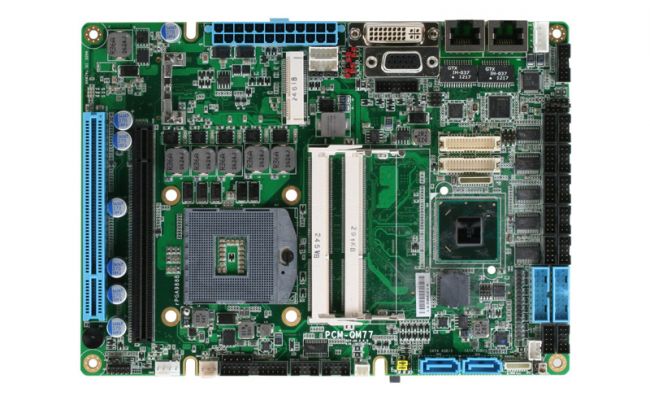

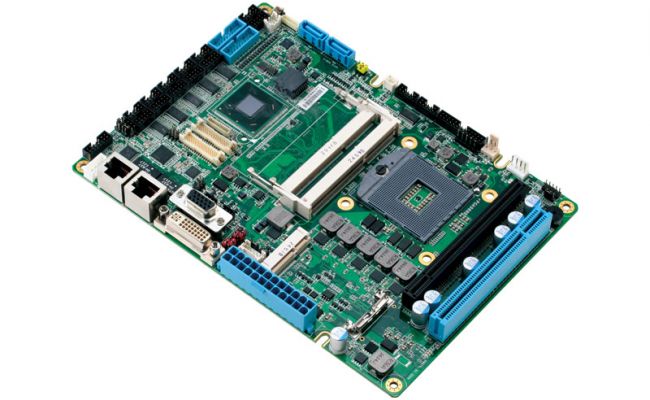

	PCM-QM77 5.25" Compact Board with 3rd Generation Intel Core i7/i5/i3 Mobile Processor
Features Introduction Specifications Ordering Information	Data Sheet
Features Intel® 3rd Generation Core™ i Series i7/i5/i3/Celeron® PGA Processor Intel 3rd Core i Series + QM77/HM76 204-pin SODIMM DDR3 1333/1600MHz x 2 up to 16GB Intel® 82579LM x 1/ Intel® 82583V x 1 10/100/1000Base-TX LANs, RJ-45 X 2 Up to 24-bit Dual Channel LVDS x 2, CRT, DVI 2CH HD Audio SATA 6.0Gb/s x 2, mSATA x 1, CFast™ x 1 USB 3.0 x 4, USB2.0 x 4, COM x 10, 16-bit Digital I/O Mini Card x 1, PCI-104, Touch, TPM (Optional), PCI, PCI-E〔x16〕 AT/ATX Power Input Supports iAMT8.0 and RAID 0,1 for QM77 Chipset Supports AAEON Hi-Safe/Hi-Manager SDK & Utility
Introduction PCM-QM77 is a 203mm x 146mm (8" x 5.75") Compact Form Factor Board that features Intel® 3rd Generation Core™ i Series i7/i5/i3/Celeron® PGA Processors. Designed for the latest 3rd Generation Multi-core Intel Core iSeries processors and complemented by the Intel QM77 or HM76 chipset, the PCM-QM77 boards offer superb graphic performance via Intel InTru 3D Technology and Clear Video HD Technology, rich connectivity, dual independent Full HD displays, remote management through iAMT 8.0 and Rapid Storage Technology. With a lower thermal envelop, it is a clear first choice when designing high performance and embedded devices at the advent of the Cloud era. The PCM-QM77 Compact Board supports SODIMM DDR3/L 1333/1600 with a maximum of 16GB memory. It features a rich array of I/O interfaces and extensions, with two Gigabit Ethernet ports, one CRT (or DVI-I optional), two 18/24-bit dual-channel LVDS interfaces, 2-channel High Definition Audio, two SATA 6.0Gb/s (support of RAID 0,1), one CFast™, four USB3.0, four USB2.0, ten COM, a programmable 16-bit Digital I/O, one Mini Card slot, onboard 4/5/8-wire Resistive Touch Screen controller (Optional) and onboard TPM support for security conscious applications. Furthermore, PCM-QM77 supports AAEON’s Hi-Safe/Hi-Manager SDK & Utility, which enables customers to expedite Smart Remote Device Management and Monitoring.
Specifications System Form Factor: 5.25" Processor: Intel® 3rd Generation Core™ i7/i5/i3/Celeron®Mobile processor System Memory: 204-pin SODIMM DDR3/L 1333/1600 MHz x 2, up to 16GB Chipset: Intel 3rd Generation Core i Series + QM77/HM76 I/O Chipset: Fintek 81866D & F81216D Ethernet: Intel® 82579LM x 1/Intel® 82583V x 1, 10/100/1000Base LANs, RJ-45 x 2 BIOS: UEFI Wake On LAN: Yes Watchdog Timer: Programmable 255 level System Reset H/W Status Monitoring: Supports Power Supply Voltages, Fan Speed and Temperature Monitoring Expansion Interface: Mini Card, PCI, PCI-E [x16], SIM Battery: Lithium battery Power Requirement: AT/ATX (default) Power Consumption (Typical): Intel® Core™ i7-3610QE, 2.3GHz, DDR3 1600 8G 3.29A @ +12.24V, 2.98A @ +4.95V Board Size: 8" (L) x 5 .75" (W) (203mm x 146mm) Gross Weight: 1.2 lb (0.5 kg) Operating Temperature: 32^oF ~ 140^oF (0^oC ~ 60^oC) Storage Temperature: -40^oF ~ 176^oF (-40^oC ~ 80^oC) Operating Humidity: 0% ~ 90% relative humidity, non-condensing MTBF (Hours): 84,000 I/O Storage: SATA 3 x 2, mSATA x 1, CFast™ x 1 Serial Port: RS-232 x 8, RS-232/422/485 x 2(COM2/6) Parallel Port: SPP/EPP/ECP x 1 USB: USB 3.0 x 4, USB 2.0 x 4 PS/2 Port: Keyboard + Mouse x 1 Digital I/O: Supports 16-bit (Programmable) Touch Screen: Supports 4/5-wire resistive touch screen (optional) Audio: Mic-in, Line-in, Line-out Display: Supports CRT/LCD/DVI Simultaneous/ Dual View Displays Chipset: Intel® QM77/HM76 integrated Resolutions: Up to 2048 x 1536 for CRT, Up to 1920 x 1200 for DVI, Up to 1920 x 1080 for LCD LCD Interface: Up to 24-bit Dual channel LVDS x 2
Ordering Information PCM-QM77-A10 Socket 989P/B (QM77), Fan, CRT+DVI/CRT+LVDS/DVI+LVDS, SATA X 2, MSATA X 1, 2CH 24-Bit LVDS, GbE X 2, USB3.0 X 4, USB2.0 X 4, RS-232 X 8, RS-232/422/485 X 2, PCI-Express X16, PCI X 1, Mini Card X 1, The 2nd Mini Card, SIM Card X 1, AT/ATX, 0°C ~ 60°C Optional Accessories 1701100260 -- COM Port Cable 20cm 1700190450 -- USB3.0 Cable 45cm 1709100201 -- USB2.0 Cable 20cm 1700060152 -- PS2 KB/MS Cable 15cm 1709070500 -- SATA Cable 50cm 1702150155 -- SATA HDD Power Cable 15cm 1700140510 -- Audio Cable 51cm 1701160201 -- VGA Cable 20cm 1701260200 -- Parallel Port Cable 20cm Packing List Jumper Cap CPU Cooler FAN + Heatsink Product CD PCM-QM77
