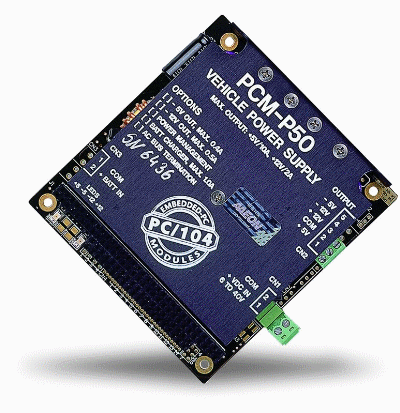

PCM-P50 |
|
|
PC/104
Vehicle Power Supply |
 Features
- 50W Output
- +6V to +40V DC Input Range
- PCM-P50: +5V & +12V Output
- PCM-P50N: ±5V & ±12V Output
- PCM-P50N-AC: ±5V & ±12V Output with AC Bus Termination
- PC/104 Compliant
|
|
Specifications
- Input Voltage: +6 to +40V DC input range
- Output Voltage: 10.0A @ +5V, 2.0A @ +12V, 0.4A @ -5V, 0.5A @ -12V
- Peak to Peak Ripple: <20mV
- Load Regulation: <60mV
- Line Regulation: <40mV
- Output Ripple: 20mV
- Quiescent Current: 2mA
- Efficiency: up to 95%
- Operating Temperature: -40ºF ~ 185ºF (-40ºC ~ 85ºC )
|
Ordering Information
- PCM-P50
PC/104 Vehicle Power Supply with +5V & +12V Output
- PCM-P50N
PC/104 Vehicle Power Supply with ±5V & ±12V Output
- PCM-P50N-AC
PC/104 Vehicle Power Supply with ±5V & ±12V Output and AC Bus Termination
|
