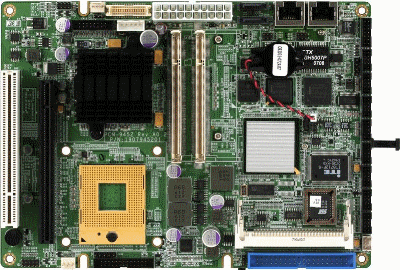

PCM-9452
5.25" Compact Board with
Intel
Processors
Core 2 Duo /
Core Duo / Celeron M


    Features
  • Intel Core 2 Duo (Merom)/ Core Duo/ Celeron M (Yonah) Processors
  • DDRII 400/533/667 SODIMM Memory Up to 4GB
  • 18-bit Dual-channel LVDS TFT LCD, TV-Out
  • Dual Gigabit Ethernet (Optional 10/100 LAN)
  • Mic-in/ Line-in/ Line-out, Stereo Amplifier
  • PCMCIA and CompactFlash Type II Slot, SATA x 2 (Optional RAID 0 & RAID 1)
  • Digital I/O 8-bit, USB 2.0 x 6, COM x 4
  • PCI-Express [x16] ,PCI x 1, Mini PCI x 1
  • Optional TPM 1.2

    Introduction


The PCM-9452 supports Intel Core 2 Duo (Merom)/ Core Duo/ Celeron M processors offering a wide range of performance, price and power.  Memory support for up to 4GB of DDRII 400/533/667 is available through two 200-pin SODIMM sockets.  Dual Ethernet connectivity is achieved by employing Intel 82573L 10/100/1000Base-TX Ethernet controllers.  To meet demanding expansion requirements the PCM-9452 offers Mini PCI, PCI and PCI-Express[x16].  In addition, the PCM-9452 features six USB2.0 ports, 8-bit digital I/O (programmable) and four COM ports.  With all of the available I/O connections and bus expansion, the PCM-9452 is an excellent solution for an integrated system.



The display interface of the PCM-9452 supports CRT/LCD, CRT/TV, LCD/TV in simultaneous and dual view configurations. The LCD interface is 18-bit dual channel LVDS. Paired with a dual core CPU, the integrated graphics engine provides exceptional 3D graphic performance. For higher end graphic applications the PCM-9452 offers expandability through the PCI-Express[x16] slot. Whether your application utilizes the integrated graphics or uses an add-on card for more demanding multimedia applications the PCM-9452 is a solid performer.


    Specifications
    System

  • Form Factor: 5.25"
  • Processor:
    Intel Core 2 Duo (Merom)/ Core Duo/ Celeron M (Yonah) Processors
  • System Memory: 200-pin SODIMM x 2, DDRII 400/533/667 up to 4GB
  • Chipset: Intel 945GM + ICH7M (DH optional for RAID)
  • I/O Chipset: ICH7M + ITE8712F-KX
  • Ethernet: Intel 82573L, 10/100/1000Mbps, RJ-45 x 2, optional 10/100 LAN
  • BIOS: Award Plug & Play BIOS – 1 MB ROM
  • Wake On LAN: Yes
  • Watchdog Timer: Generates a time-out system reset
  • H/W Status Monitoring:
    Supports Power Supply Voltages, Fan Speed and Temperature Monitoring
  • Expansion Interface: Mini PCI x 1, PCI x 1, PCI-Express [x1] or [x16] x 1
  • Battery: Lithium battery
  • Power Requirement: ATX
  • Power Consumption (Typical):
    T7400 2.16 GHz, DDR II 667 2 GB
    +12V@2.96A , +5V@ 3.72A
  • Board Size: 8" (L) x 5 .75" (W) (203mm x 146mm)
  • Gross Weight: 1.2 lb (0.5 kg)
  • Operating Temperature: 32oF ~ 140oF (0oC ~ 60oC)
  • Storage Temperature: -40oF ~ 176oF (-40oC ~ 80oC)
  • Operating Humidity: 0% ~ 90% relative humidity, non-condensing
  • MTBF (Hours): 60,000

    I/O

  • Storage:
    EIDE x 1 (UDMA 100), SATA II x 2, PCMCIA x 1, Type II CompactFlash™x 1
  • Serial Port: RS-232 x 3, RS-232/422/485 x 1
  • USB: USB2.0 x 6
  • PS/2 Port: Keyboard + Mouse x 1
  • Digital I/O: Supports 8-bit (Programmable)
  • IrDA: One IrDA Tx/Rx header
  • Audio: Mic-in, Line-in, Line-out, CD-in, Stereo Amplifier included

          Display: Supports CRT/LCD, CRT/TV, LCD/TV,
                           Simultaneous/ Dual View Display

  • Chipset: Intel 945GM
  • Memory: Shared system memory up to 224MB w/DVMT3.0
  • Resolutions:
    Up to 2048x1536 @ 32bpp for CRT
    Up to 1280 x 1024 @ 36bpp for LCD
  • LCD Interface: 18-bit dual-channel LVDS TFT LCD
  • TV-out: Supports NTSC and PAL standard, S-Terminal and Composite Video
  Ordering Information
  • TF-PCM-9452-A10
    5.25" board, Socket-478M, LVDS-TV, 10/100 & GbE, Audio, 4COM, 6USB, CompactFlash™, Mini-PCI, PCI-E[x16], PCMCIA, Rev.A1.0

          Optional Accessories

  • TF-PER-K001
    Cable Kit for PCM-9452
  • TF-PER-C10L-A10
    Mini PCI 10/100 Base-TX Ethernet Module with Realtek 8100C
  • TF-PER-C10L-A10-01
    Mini PCI 10/100/1000 Base-TX Ethernet Module with Realtek 8110S
  • TF-PER-C10L-A10-02
    Mini PCI 10/100 Base-TX Ethernet Module with Intel® 82551QM
  • TF-PER-C10L-A10-03
    Mini PCI 10/100/1000 Base-TX Ethernet Module with Intel® 82541GI
  • TF-PER-C30F-A10
    Mini PCI 3-port IEEE 1394a Module
  • TF-PER-V30C-A11
    Mini PCI Single Channel Capture Module with Philips SAA7135
  • TF-PER-C40C-A11
    Mini PCI 2-port RS-232 Module Rev. A1.0
  • TF-PER-C40C-A10-01
    Mini PCI 4-port RS-232 Module Rev. A1.0
  • TF-PER-1110-A10
    Riser Card for PCI 2-slot
  • TF-PER-V05V-A10
    Mini PCI VGA Card
  • TF-PER-K001
    Cable Kit for PCM-9452
