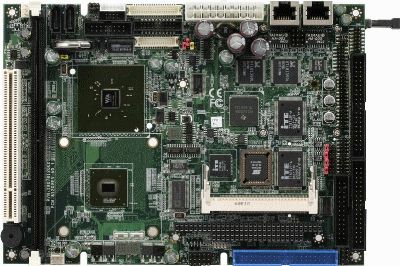

PCM-8120
5.25" Compact Board with
VIA C7 / Eden (V4 Bus)
Series Processors


    Features
  • Onboard VIA C7/ Eden (V4 Bus) Series Processors
  • One DIMM DDR II 400/533 up to 1GB
  • Dual Channel LVDS, DVI and TV-out
  • MPEG-4 Accelerator
  • Dual 10/100Base-TX Ethernet
  • PCI, Type III Mini PCI, PC/104 & Type II PCMCIA
  • IDE, RS-232/422/485, Parallel
  • HD Audio 5.1 CH
  • SATA II x 2, USB2.0 x 6, 16-bit Digital I/O, IrDA
    Specifications
    System

  • Form Factor: 5.25"
  • Processor: VIA C7/ Eden (V4 Bus) series processors up to 2.0GHz with FSB 400MHz
  • System Memory: 240-pin DDRII DIMM x 1, max 1GB (DDR-400/533)
  • Chipset: VIA C7/ Eden (V4 Bus) + CX700M
  • I/O Chipset: ITE IT8712 + IT8888G
  • Ethernet: Realtek RTL 8139DL, 10/100Base-TX , RJ-45 x 2
  • BIOS: AWARD 512KB Flash ROM
  • Wake On LAN: Yes
  • Watchdog Timer: Generates a time-out system reset
  • H/W Status Monitoring: Supports power supply voltages, fan speed, and temperature monitoring
  • Solid Storage Disk: Type II CompactFlash slot x 1
  • Expansion Interface: Mini PCI x 1, PCI x 1, PC/104 x 1 & PCMCIA x 1
  • Battery: Lithium battery
  • Power Requirement: AT / ATX
  • Power Consumption:
    VIA C7 2.0GHz, DDRII 533 512MB:
    5.63A @ 5V - 0.04A @ 12V - 0.03A @ 3.3V
    VIA Eden 1.0GHz, DDRII 533 512MB: 2.69A @ 5V - 0.03A @ 12V - 0.02A @ 3.3V
  • Board Size: 8" (L) x 5.72" (W) (203mm x 146mm)
  • Gross Weight: 1.2 lb (0.5 kg)
  • Operating Temperature: 32oF~ 140oF (0oC ~ 60oC)
  • Storage Temperature: -40oF~176oF (-40oC~80oC)
  • Operating Humidity: 0% ~ 90% relative humidity, non-condensing

    I/O
  • MIO: EIDE x 1 (UDMA-100) SATA II x 2, Floppy Disk Drive x 1, Keyboard+Mouse x 1,
    RS-232 x 3, RS-232/422/485 x 1, Parallel x 1
  • IrDA: One IrDA Tx/Rx header
  • Audio: MIC-in, Line-in, Line-out, CD-IN S/P DIF In/Out, 5.1 CH
  • USB: Two 5x2 box headers support six USB2.0 ports
  • Digital: I/O Supports 16-bit (Programmable)

          Display: Supports CRT/LVDS, LVDS/TV or CRT/TTL, CRT/DVI, TV/TTL, TV/DVI simultaneous/ Dual view display. Supports MPEG-4 accelerator

  • Chipset: VIA CX700M integrated
  • Memory: Shared system memory up to 128MB
  • Resolutions:
    Up to 1600x1200 @ 32bpp for CRT
    Up to 1280 x 1024 @ 24bpp for LCD
  • LCD Interface: Up to 48-bit Dual channel LVDS TFT LCD, up to 24-bit TTL TFT LCD
  • TV-out: Supports NTSC and PAL standard, S-Terminal and Composite Video
  • DVI: Yes
  Ordering Information
  • TF-PCM-8120-A10
    5.25"Board, Eden 1G, LVDS-TV, DDRII, LAN, 4COM, USB2.0, CF, Mini PCI, PCI, PC/104, PCMCIA, Rev.A1.0
  • TF-PCM-8120-A10-01
    5.25"Board, Eden 1G, TTL-DVI-TV, DDRII, LAN, 4COM, USB2.0, CF, Mini PCI, PCI, PC/104, PCMCIA, Rev.A1.0
  • TF-PCM-8120-A10-02
    5.25"Board, C7 2G, LVDS-TV, DDRII, LAN, 4COM, USB2.0, CF, Mini PCI, PCI, PC/104, PCMCIA, Rev.A1.0
  • TF-PCM-8120-A10-03
    5.25"Board, C7 2G, TTL-DVI-TV, DDRII, LAN, 4COM, USB2.0, CF, Mini PCI, PCI, PC/104, PCMCIA, Rev.A1.0
