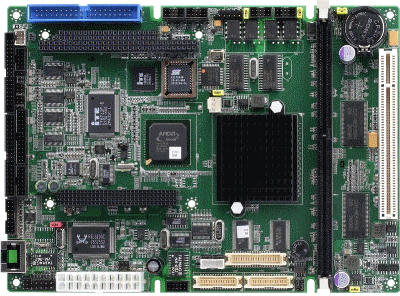

PCM-5895B
5.25" Compact Board with
AMD Geode LX Series


    Features
  • AMD Geode LX800 Processor
  • DDR 333/400 DIMM Memory Up to 1 GB, or Onboard Memory 256MB
  • Up to 24-bit LVDS TFT Panel, TTL/ LVDS LCD, CRT
  • Dual 10/100 Base-TX Ethernet
  • PCI x 1 (Optional), PC/104+ (ISA + PCI)
  • CompactFlash Type II Slot
  • CAN Bus x 2 (Optional)
  • 8-bit Digital I/O x 1/ USB x 4/ COM x 4

    Introduction


PCM-5895 Rev.B adopts an onboard AMD Geode LX 800/900 processor.  The AMD LX series processors are ideal for applications that require low power consumption and stable performance.  The system memory features 184-pin DDR DIMM up to 1GB.  Moreover, the PCM-5895 Rev.B supports PCI, PCI-104 and PC/104 for flexible expansion.  Customers are always eager to find a low-priced, multi-functional product.  The PCM-5895 Rev.B is definitely your best choice.

Regarding the multimedia performance of PCM-5895 Rev.B, it features CRT/LCD simultaneous display.  The LVDS/TTL TFT LCD is up to 24-bit and the rich audio I/O interface that PCM-5895 Rev.B possesses supports MIC-in, Line-in, Line-out and CD-in functions.  In addition, PCM-5895 Rev.B deploys 4 COM ports--three RS-232 ports (COM3, 4 only support Tx, Rx) and one RS-232/422/485 port.  Four USB2.0, 8-bit Digital I/O and IrDA ports make PCM-5895 Rev.B more flexible for the expansion of system device.  Moreover, another key feature of PCM-5895 Rev.B is the two CANBus ports that are an optional feature to enrich device connections.



    Specifications
    System

  • Form Factor: 5.25"
  • Processor: Onboard AMD Geode LX800 (900 optional) Processor
  • System Memory:
    184-pin DDR DIMM x 1, max 1GB (DDR-333/400), or onboard memory 256 MB
  • Chipset: AMD Geode LX + CS5536
  • I/O Chipset: ITE IT8712 + IT8888G
  • Ethernet: Realtek RTL8139DL, 10/100Base-TX x 2, RJ-45 x 1 & pin header x 1
  • BIOS: AWARD 1MB Flash ROM
  • Wake On LAN: Yes
  • Watchdog Timer: Generates a time-out system reset
  • H/W Status Monitoring:
    Supports power supply voltages, temperature monitoring
  • Expansion Interface: Mini PCI x 1, PCI x 1, PC/104+
  • Battery: Lithium battery
  • Power Requirement: +5V/ AT/ ATX
  • Power Consumption (Typical):
    AMD LX900 (600MHz) DDR400 1GB
    +5V @ 2.40A
  • Board Size: 8"(L) x 5.75"(W) (203mm x 146mm)
  • Gross Weight: 1.2lb (0.5KG)
  • Operating Temperature: 32oF ~ 140oF (0oC ~ 60oC)
  • Storage Temperature: -40oF~176oF (-40oC~80oC)
  • Operating Humidity: 0% ~ 90% relative humidity, non-condensing
  • MTBF (Hours): 80,000

    I/O

  • Storage: EIDE x 1 (UDMA 100), Type II CompactFlash™ x 1
  • Serial Port: RS-232 x 3, RS-232/422/485 x 1
  • Parallel Port: SPP/ EPP/ ECP mode
  • USB: USB2.0 x 4
  • PS/2 Port: Keyboard + Mouse x 1
  • Digital I/O: Supports 8-bit (Programmable)
  • IrDA: One IrDA Tx/Rx header
  • Audio: Mic-in, Line-in, Line-out, CD-in
  • CAN Bus: Supports two ports

          Display: Supports CRT/ LCD and CRT/ TV simultaneous display

  • Chipset: AMD Geode
  • Memory: Shared system memory up to 254MB
  • Resolutions:
    Up to 1920 x 1440 @ 24bpp for CRT
    Up to 1600 x 1200 @ 24bpp for LCD
  • LCD Interface: Up to 24-bit LVDS TFT LCD
  Ordering Information
  • TF-PCM-5895-B10
    5.25" Board, LX800 500MHz, 18-bit LVDS, DDR, 2LAN, 4COM, 6USB, CompactFlash, Rev.B1.0
  • TF-PCM-5895-B10-01
    5.25" Board, LX800 500MHz, 24-bit LVDS, DDR, 2LAN, 4COM, 6USB, CompactFlash, Rev.B1.0
  • TF-PCM-5895-B10-02
    5.25" Board, LX800 500MHz, 18-bit LVDS, DDR, 256MB onboard, 2LAN, 4COM, 6USB, CompactFlash , PC/104+, 2CAN, Rev.B1.0
  • TF-PCM-5895-B10-03
    5.25" Board, LX800 500MHz, 24-bit LVDS, DDR, 256MB-down, 2LAN, 4COM, 6USB, CompactFlash, PC/104+, 2CAN, Rev.B1.0

          Optional Accessories

  • TF-PER-K004
    Cable Kit for PCM-5895 Rev.B
  • TF-PCM-5600
    PC/104 56K Fax/Modem Module
  • TF-PCM-3660B
    PC/104 Ethernet Module
  • PCM-3794-A10
    PC-104 Board Plus 2 PCMCIA Module
  • TF-PCM-FA00-A10
    PC/104 Board Plus to Mini PCI Module Converter
