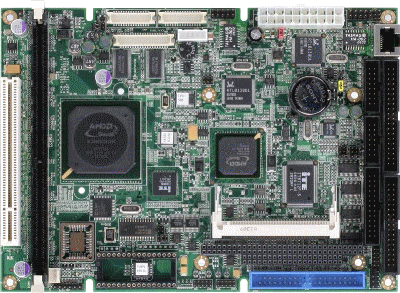

PCM-5895A
5.25" Compact Board with
AMD Geode LX Series

    Features
  • Onboard AMD Geode LX 800 (LX700/900 Optional)Processors
  • One DIMM DDR 333 up to 1GB/DDR 400 up to 512MB
  • Up to 24-bit, two LVDS
  • Dual 10/100Base-TX Ethernet
  • Mini PCI, PCI and PC/104
  • IDE, RS-232/422/485, Parallel
  • AC97 2 Channel
  • USB2.0 x 4, 16-bit Digital I/O, IrDA
  • CAN Bus (Optional)
    Specifications
    System

  • Form Factor: 5.25"
  • Processor: Onboard AMD Geode LX800 (LX 700/ 900 optional) Processors
  • System Memory: 184-pin DDR DIMM x 1, max 1GB (DDR-333/400)
  • Chipset: AMD Geode LX + CS5536
  • I/O Chipset: ITE IT8712 + IT8888G
  • Ethernet: Realtek RTL8139DL, 10/100Base-TX x 2, RJ-45 x 1 & pin header x 1
  • BIOS: AWARD 512KB Flash ROM
  • Wake On LAN: Yes
  • Watchdog Timer: Generates a time-out system reset
  • H/W Status Monitoring: Supports power supply voltages, temperature monitoring
  • Solid Storage Disk: Type II CompactFlash slot x 1, DiskOnChip x 1
  • Expansion Interface: Mini PCI x 1, PCI x 1, PC/104 x 1
  • Battery: Lithium battery
  • Power Requirement: +5V / AT / ATX
  • Power Consumption (Typical):
    AMD LX800 500MHz, DDR400 1GB
    ATX Power = 1.43A @ 5V
    AT Power = 1.23A @ 5V
  • Board Size: 8" (L) x 5.72" (W) (203mm x 146mm)
  • Gross Weight: 1.2lb (0.5KG)
  • Operating Temperature: 32oF~ 140oF (0oC ~ 60oC)
  • Storage Temperature: -40oF~176oF (-40oC~80oC)
  • Operating Humidity: 0% ~ 90% relative humidity, non-condensing

    I/O

  • MIO: EIDE x 1 (UDMA-33 x 1), Floppy Disk Drive x 1, Keyboard+Mouse x 1,
    RS-232 x 3, RS-232/422/485 x 1, Parallel x 1
  • IrDA: One IrDA Tx/Rx header
  • Audio: MIC-in, Line-in, Line-out, CD-IN
  • USB: Two 5 x 2 box headers support 4 USB2.0 ports
  • Digital I/O: Supports 16-bit (programmable)
  • CAN Bus> Supports one port (optional)

          Display: Supports CRT/ LCD, CRT/ TV, LCD/LCD, and LCD/TV simultaneous display

  • Chipset: AMD Geode + TI SN75LVDS83
  • Memory: Shared system memory up to 254MB
  • Resolutions:
    Up to 1920 x 1440 @ 24bpp for CRT
    Up to 1600 x 1200 @ 24bpp for LCD
  • LCD Interface: Up to 24-bit LVDS TFT LCD
  Ordering Information
  • TF-PCM-5895-A10
    5.25"Board, LX800 500MHz, 18-bit LVDS, DDR, LAN, 4COM, USB2.0, CF&DOC, PC/104, Mini PCI, PCI, Rev.A1.0
  • TF-PCM-5895-A10-01
    5.25"Board, LX800 500MHz, 24-bit LVDS, DDR, LAN, 4COM, USB2.0, CF&DOC, PC/104, Mini PCI, PCI, Rev.A1.0
