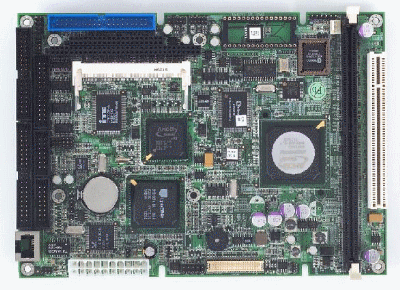

PCM-5893
5.25" Compact Board with
AMD Geode GX Processors

• Features
• Specifications
• Ordering Information

    Specifications

System

• Form Factor: 5.25"
• Processor: Onboard AMD Geode GX 466/ 500 (optional)/ 533 processor
• System Memory: 184-pin DDR SDRAM DIMM x 1, Max. 512MB (DDR 266)
• Chipset: AMD Geode GX + CS5535
• I/O Chipset: ITE IT8712
• Ethernet: Realtek RTL 8100BL, 10/100Base-TX, RJ-45 connector x 1
• BIOS: AWARD 256KB FLASH ROM
• Wake On LAN: Yes
• Watchdog Timer: Generates a time-out system reset
• H/W Status Monitoring:
  Supports power supply voltages, fan speed and temperature monitoring
• Solid Storage Disk: Type II CompactFlash slot x 1, DiskOnChip x 1
• Expansion Interface: Mini PCI x 1, PCI x 1, PC/104 x 1
• Battery: Lithium battery
• Power Requirement: 5V/ AT/ATX
• Power Consumption (Typical):
  AMD Geode GX 333MHz & 400MHz, DDR400 256MB
  ATX Power
  For 333MHz: 2.04A @ 5V, 0.30A @ 12V
  For 400MHz: 3.03A @ 5V, 0.17A @ 12V
  AT Power
  For 333MHz: 2.33A @ 5V, 0.15A @ 12V
  For 400MHz: 2.74A @ 5V, 0.14A @ 12V
• Board Size: 8" (L) x 5.75" (W) (203mm x 146mm)
• Gross Weight: 1.2 lb (0.5 kg)
• Operating Temperature: 32^oF~ 140^oF (0^oC ~ 60^oC)
• Storage Temperature: -40^oF~176^oF (-40^oC~80^oC)
• Operating Humidity: 0% ~ 90% relative humidity, non-condensing
• MTBF (Hours): 93,520

  I/O


• MIO: EIDE x 1 (UDMA66 x 1), Floppy Disk Driver x 1, Keyboard + Mouse x 1,
  RS-232 x 3, RS-232/422/485 x 1, Parallel x 1
• IrDA: One IrDA Tx/Rx header
• Audio: MIC-in, Line-in, Line-out, CD-in
• USB: Two 5 x 2 pin headers support 4 USB1.1 ports
  (Does not support Wake-up function)
• Digital I/O: Supports 8-bit (Programmable)
• CAN Bus: Supports one port

  Display: Supports CRT/ LCD simultaneous/ dual view display


• Chipset: SMI SM 712
• Memory: Built-in 4MB SDRAM
• Resolutions:
  Up to 1280 x 1024@24bpp colors for CRT
  Up to 1024 x 768@24bpp colors for LCD
  Up to 800 x 600@24-bit for DSTN
