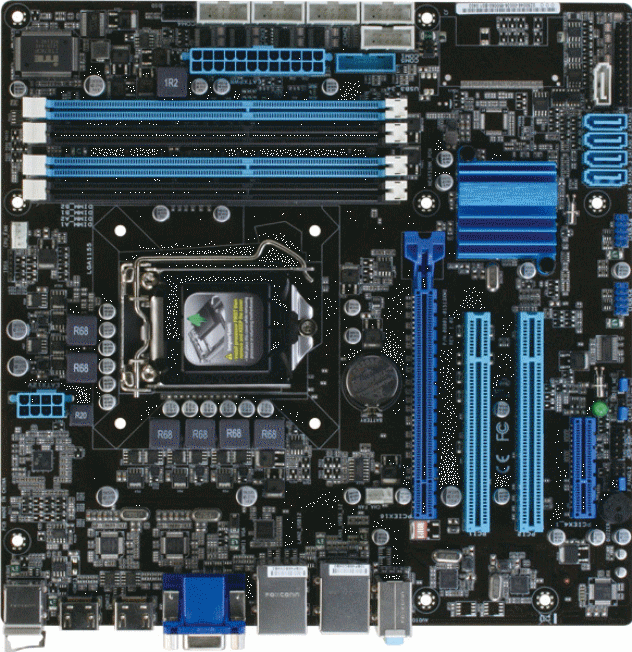

IMBM-B75A
Micro-ATX Industrial Motherboard
With Intel 2nd/3rd Generation
Core i7/i5/i3/Pentium Processor

    Features
  • Intel 2nd/3rd Generation Core i7/ i5/ i3/ Processors
  • Intel B75
  • DDR3 1600/1333/1066 MHz DIMM x 2, Max. 16GB
  • Dual/Three Independent Display: VGA, HDMI x 3
  • Gigabit Ethernet x 2
  • Onboard TPM Infineon SLB9635 TT 1.2
  • SATA 6.0Gb/s x 1, SATA 3.0Gb/s x 4
  • USB3.0 x 4, USB2.0 x 6

    Introduction

    Specifications

System

  • Form Factor: Micro ATX
  • Processor: Intel 2nd/3rd Generation Core i7/ i5/ i3/ Processors
  • System Memory:
    Dual-Channel DDR3 1066/1333 DIMM x 4(Up to 32GB) Un-buffered Memory
  • Chipset: Intel B75
  • I/O Chipset: ITE IT8783F
  • Ethernet: Realtek 8111F, Gigabit Ethernet, RJ-45 x 2
  • BIOS: AMI BIOS SPI flash ROM - 64Mb
  • Wake On LAN: Yes
  • Watchdog Timer: 1~255 steps, can be set with software on Super I/O
  • TPM: Infineon SLB9635 TT 1.2
  • H/W Status Monitoring:
    Temperature Monitor on CPU/Chassis
    Voltage Monitor on Vcore /5V/3.3V/12V
    Fan Monitor on CPU/Chassis
  • Expansion Interface: PCIe [x16] x 1, PCIe [x4] x 1, PCI x 2
  • Battery: Lithium battery
  • Power Requirement: ATX Standard 24-pin connector x 1, 8-pin +12V connector x 1
  • Power Consumption:
  • Board Size: 9.6" x 9.6" (244 mm x 244 mm)
  • Gross Weight: 1.76 lb (0.8 Kg)
  • Operation Temperature: 32°F ~ 140°F (0°C ~ 60°C)
  • Storage Temperature: -40°F ~ 185°F (-40°C ~ 85°C)
  • Operation Humidity: 0% ~ 90%RH, non-condensing
  • MTBF (Hours):

Display

  • Graphic Engine: Intel Graphics Media Accelerator
  • Resolution:
    VGA: 1920 x 1200 @75Hz
    HDMI: 1920 x1080 @60Hz
  • Output Interface: VGA x 1, HDMI x 3

I/O

  • Storage: SATA 6.0 Gb/s x 1, SATA 3.0 Gb/s x 4
  • Serial Port:
    COM 1: RS-232/422/485 x 1(external DB-9)
    COM 2~5: RS-232 x 4(Box header)
  • Parallel Port: SPP/EPP/ECP Mode
  • USB: USB3.0 x 4, USB2.0 x 6
  • Digital I/O: 8-bit programmable (4-in / 4-out)
  • PS/2 Port: PS/2 Port x 2 (Keyboard & Mouse)
  • Audio: Line-in, Mic-in, Line-out
  Ordering Information
  • IMBM-B75A-A10-G2
    Socket, DIMM, Fan, VGA, HDMI x 3, SATA 2 x 4, SATA 3 x 1, GbE x 2, USB2.0 x 6, USB3.0 x 4,
    RS-232 x 4, RS-232/422/485 x 1, PCI-E [x16] x 1, PCI-E [x4] x 1, PCI x 2, ATX, 0°C ~ 60°C

Optional Accessories

  • CPU Cooler
  • 1709070800 -- SATA Cable
  • 1701100302 -- COM Port Cable
  • LPT Cable
  • USB2.0 Cable
  • 1700190450 -- USB3.0 Cable

Packing List

  • SATA Cable
  • COM Port Cable
  • I/O Shield
  • Product CD
  • IMBM-B75A
