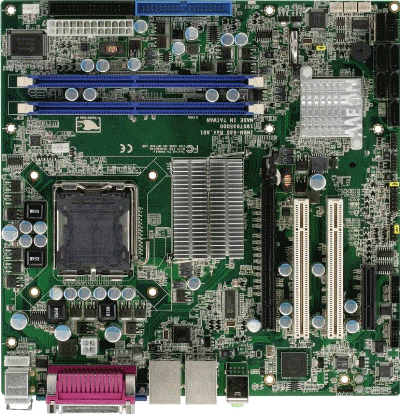

IMBM-935
Micro-ATX Industrial Motherboard
With Intel Core 2 Quad/ Core 2 Duo
Processors

    Features
  • Intel Core 2 Quad/ Core 2 Duo LGA775 CPU, FSB 800/1066/1333 MHz
  • Intel Q35 Chipset
  • DDRII 800/667 MHz Memory Support Up To 4 GB
  • 10/100Base-TX Ethernet & Gigabit Ethernet x 2 (Optional)
  • Integrated Intel® Enhanced Graphics Core, VGA Support
  • 2CH Audio
  • SATA II x 5
  • USB2.0 x 8, RS-232/422/485 x 1, RS-232 x 3, Parallel x 1, IrDA x 1
  • PCI-E [x16] x 1, PCI-E [x4] x 1, PCI x 2 Expansions
  • Watchdog Function 1~255 Sec.
  • ATX 2.1

    Introduction

    Specifications
    System

  • Form Factor: uATX Motherboard Board
  • Processor:
    Intel® Core™ 2 Quad/ Core™ 2 Duo LGA775 CPU
    FSB 800/1066/1333 MHz
  • System Memory:
    240-pin DIMM Socket x 2, up to 4 GB DDR II 667/800 Dual- channel Support
  • Chipset: Intel® Q35 + ICH9R (ICH9DO optional)
  • Ethernet:
    PCI-Express [x1] 10/100Base-TX & 10/100/1000Base-TX (optional), RJ-45 x 2
    LAN1: Dual Footprint support option
    Intel® 82566 10/100/1000Base-TX
    Intel® 82562 10/100Base-TX
    LAN2: Intel® PCI-E controller 82573
  • BIOS: Award Plug & Play SPI Flash BIOS – 16 Mb ROM
  • H/W Status: Monitoring CPU Fan, temperature, PSU voltage
  • Expansion Interface: PCI x 2, PCI-Express [x4] x 1, PCI-Express [x16] x 1
  • Watchdog Timer: 1~255 step, can be set with software on Super I/O
  • RTC: Internal RTC
  • Battery: Lithium Battery
  • Power Requirement: ATX 2.1
  • Power Consumption (Typical): 65W w/Intel® E6400 CPU
  • Operating Temperature: 32°F~ 140°F (0°C ~ 60°C)
  • Board Size: 9.6" (L) x 9.6" (W) (244mm x 244mm)
  • Gross Weight: 0.66 lb (0.3 Kg)
  • MTBF (Hours): 50,000

    I/O:
    Winbond 83627

  • Storage:
    IDE x 1 with JMicron JM20330,
    SATA II x 5 (RAID optional)
    Standard FDD x 1, supports one floppy device only
  • Serial Port:
    COM x 4: (Internal Pin Header x 3, External D-sub x 1)
    COM 1,3,4: RS-232
    COM 2: RS-232/422/485
  • Parallel Port: Supports SPP/EPP/ ECP modes
  • Universal Serial Bus:
    USB2.0 x 8,
    5x2 pin-header for internal x 2, TYPE-A Connector onboard x 4

          Display: Intel® Q35

  • VGA Controller: Enhanced Integrated Graphics 3100
  • Memory: Shared memory up to 256 MB
  • Resolutions: Up to 2048 x 1536 at 85MHz for CRT
  • LCD Interface:
  Ordering Information
  • TF-IMBM-935-A10-VE
    Industrial uATX Motherboard, LGA775, Core™ 2 Quad/ Core™ 2 Duo CPU, VGA,
    1 10/100Base-TX, CompactFlash™, 2 PCI, 1 PCI-E [x4], 4 SATA II, RAID, Rev A1.0
  • TF-IMBM-935-A10-VG
    Industrial uATX Motherboard, LGA775, Core™ 2 Quad/ Core™ 2 Duo CPU, VGA,
    1 Gigabit Ethernet, CompactFlash™, 2 PCI, 1 PCI-E [x4], 4 SATA II, RAID, Rev A1.0
  • TF-IMBM-935-A10-G2
    Industrial uATX Motherboard, LGA775, Core™ 2 Quad/ Core™ 2 Duo CPU, VGA,
    2 Gigabit Ethernet, CompactFlash™, 2 PCI, 1 PCI-E [x4], 4 SATA II, RAID, Rev A1.0

          Optional Accessories

  • 1759200169 -- CPU Cooler Fan for LGA 775 CPU, Top 95W, 2~4U
  • 1759200335 -- CPU Cooler Fan for LGA 775, 65W, 1U

          Chassis Options

  • TF-AMC-280M-W
    Wallmount 8-slot Chassis Bare for Motherboard, PS2 Power, PS_SW (ATX), Color: White
  • TF-ARC-645M
    Rackmount 4U Chassis Bare, for Motherboard, PS2 Power, PS_SW (ATX), Black
