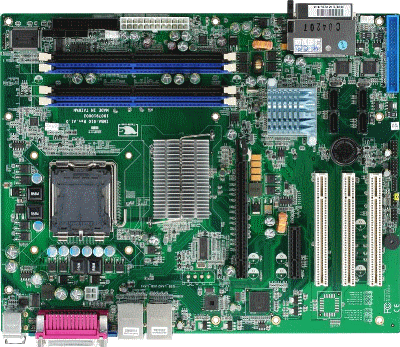

IMBA-910
ATX Industrial Motherboard
With Intel Core 2 Duo Processor

    Features
  • Intel Core 2 Duo Processor, FSB 533/800/1066 MHz
  • Intel Q965 Chipset
  • DDR II 533/667/800 MHz Memory Support Up To 8 GB
  • PCI-Express [x1] 10/100Base-TX & Gigabit Ethernet x 2 (Optional)
  • Integrated Intel Enhanced Graphics Core, VGA Support
  • CompactFlash Type II x 1, SATA II x 4 (RAID Optional)
  • USB2.0 x 8, COM x 2, Parallel x 1, IrDA x 1
  • PCI-Express [x16] x 1, PCI-Express [x4] x 1, PCI x 3 Expansions
  • ATX 2.1

    Introduction

    Specifications
    System

  • Form Factor: ATX Motherboard
  • Processor:
    Intel® Core™ 2 Duo Processor, Pentium® 4 Processor,
    FSB: 533/800/1066 MHz
  • System Memory:
    240-pin 1.8V DDRII DIMM Socket x 4, up to 8 GB
    DDR II 533/667/800 MHz Dual-channel Support
  • Chipset: Intel® Q965 + ICH8R/ ICH8 DO optional
  • Ethernet:
    PCI-E [x1] 10/100Base-TX & 10/100/1000Base-TX, RJ-45 x 2 (optional)
    LAN1: Intel® 82566/ 82562
    LAN2: Intel® LAN controller (PCI-E) – 82573L
  • BIOS: Award Plug & Play SPI BIOS – 16 Mb ROM
  • H/W Status: Monitoring CPU Fan speed, temperature, PSU voltage
  • PCI Interface: PCI-E [x16] x 1, PCI-E [x4] x 1, 32 bit/ 33 MHz PCI x 3
  • Expansion Interface: PCI, PCI-Express
  • Watchdog Timer: 1~255 step, can be set with software on Super I/O
  • RTC: Internal RTC
  • Battery: Lithium battery
  • Power Requirement: ATX 2.1
  • Power Consumption (Typical): 65W, w/Intel® E6400 CPU
  • Operating Temperature: 0°C ~ 60°C (32°F~140°F)
  • Board Size: 12" (L) x 9.6" (W) (304.8mm x 243.8mm)
  • Gross Weight: 0.66 lb (0.3 Kg)
  • MTBF (Hours): 55,000

    I/O:
    Winbond 83627

  • Storage:
    SATA II x 4 (RAID optional) / IDE x 1 (SATA to IDE)
    CompactFlash™ Type II Connector ( SATA to CompactFlash™) x 1
    Standard FDD x 1, supports up to two floppy devices
  • Serial Port:
    COM x 2: (Internal Pin Header x 1, External D-sub x 1)
    COM 1: RS-232; COM 2: RS-232/422/485
  • Parallel Port: Supports SPP/ EPP/ ECP modes
  • Universal Serial Bus:
    USB2.0 x 8, 5 x 2 pin-header for internal x 4
    TYPE-A connector onboard x 4
  • PS/2 Port: Keyboard x 1; Mouse x 1
  • Digital I/O: 4 in and 4 out
  • Audio (Daughter Board):
    Audio pin header (PER-U01H audio board optional, A1.1 only)
  • IrDA: IrDA Tx/Rx header x 1

          Display

  • VGA Controller: Enhanced Intel® Q965 Integrated Graphics 3000
  • Memory: Shared memory 224 MB
  • Resolutions: 2048 x 1536 at 85 Hz for CRT
  Ordering Information
  • TF-IMBA-910-A10-VE
    Industrial ATX Motherboard, LGA775, Core™ 2 Duo/ Pentium® 4, VGA,
    1 10/100Base-TX Ethernet,
    CompactFlash™, 1 PCI-E [x4], 1 PCI-E [x16], 4 SATA, Rev A1.0
  • TF-IMBA-910-A10-G2
    Industrial ATX Motherboard, LGA 775, Core™ 2 Duo/ Pentium® 4, VGA,
    2 Gigabit Ethernet,
    CompactFlash™, 1 PCI-E [x4], 1 PCI-E [x16], 4 SATA, Rev A1.0

          Optional Accessories

  • 1759200169 -- CPU Cooler Fan for LGA 775 CPU, Top 95W, 2~4U
  • 1759200335 -- CPU Cooler Fan for LGA 775, 65W, 1U

          Chassis Options

  • TF-AMC-280M-W
    ATX/Micro ATX, Wallmount, Bare Chassis, for PS2 Power, PS_SW (ATX), Color: White
  • TF-ARC-645M
    Rackmount, 4U Chassis Bare for Motherboard, PS2 Power, PS_SW (ATX) , Color: Black
