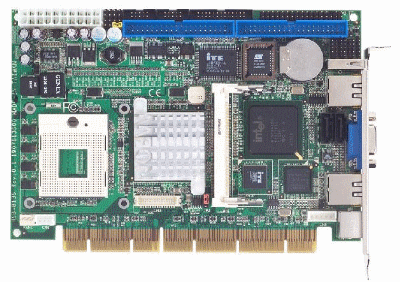

HSB-813S


Intel Pentium
M / Celeron M BGA / Socket
PCISA Half-size SBC

    Features
  • Onboard Intel Pentium-M Socket 479
  • DDR333 Memory Supports Up To 2GB
  • Integrated AGP 4X 2D/3D Graphics Accelerator, LVDS Support
  • 10/100/1000Base-TX Ethernet x 2 (10/100 & GbE Optional)
  • Integrated AC97 Codec Audio (Daughter Board Optional)
  • Mini PCI, Type III Socket
  • USB 2.0 x 5/ RS-232 x 1, RS-232/422/485 x 1/ Parallel x 1/ IrDA Port x 1
  • Ultra ATA100 & CompactFlash™ Type-II & SATA-I Port x 2
  • Watchdog Function 1~255 Sec.

    Introduction



    Specifications

    System


  • Form Factor: PCISA, Half-size SBC
  • Processor: Intel Pentium M/ Celeron M CPU, FSB: 400MHz, Onboard 600MHz/ non-cache, on Board or Socket type
  • System Memory: 200-pin 2.5V DDR SODIMM Socket x 2, total up to 2 GB, Support DDR memory (DDR266/333)
  • Chipset: Intel 82855GME + Intel 82801DB (ICH4)
  • Ethernet: 10/100Mb or 10/100/1000Mb LAN x 2 (optional), RJ-45 X 2, Intel 82562EZ /82551QM/ 82541GI controller
  • BIOS: Award Plug & Play ISA BIOS - 4Mb ROM
  • IDE Interface: ATA-100 (Support four ATAPI devices) x 2, SATA-I Port x 2
  • SSD: CFD type II Connector x 1
  • Expansion Interface: PCISA Interface / Mini PCI Type III socket / ISA bridge ITE8888G
  • Watchdog Timer: 1~255 sec. can be set with software on Super I/O
  • RTC: Internal RTC
  • Battery: Lithium battery
  • Power Requirement: Standard ATX Power Connector ATX12V, 5V/12V use only
  • Operating Temperature: 32oF~140oF (0oC ~ 60oC)
  • Board Size: 7.3" (L) x 4.8" (W) (185 mm x 122 mm)
  • Gross Weight: 0.7 lb (0.3 kg)
  • MTBF (Hours): 99,680
  • Power Consumption (Typical): 20W, with Pentium 4 1.4GHz/ FSB 400MHz/ 2MB L2 Cache

          I/O: ICH4 + ITE 8712F

  • Serial Port: COM port x 2: (Internal Pin Header, External D-sub x 2), COM 1: RS-232, COM 2: RS-232/422/485 (jumpless selection)
  • Parallel Port: Parallel port supports SPP/ EPP/ ECP mode x 1
  • Universal Serial Bus: USB 2.0 port x 5, Internal 5 x 2-pin header supports up to 2 USB ports x 2, Type-A connector onboard x 1
  • Floppy Drive Interface: Standard Floppy Disk Drive x 1
  • Keyboard and Mouse: Mini-DIN PS/2 keyboard and mouse connector x 1, Internal keyboard pin header x 1
  • IR Interface: IrDA header x 1
  • Audio (Daughter Board): AC97 Codec, MIC-in/ Line-in/ Line-out/ CD-in

          Display: Supports CRT & LCD simultaneous display

  • VGA Controller: Integrated on Intel 82855GME, AGP 4X, dual display support and LVDS output
  • Memory: Share system memory up to 128M
  • Resolutions: 1280x1024 @ 32bpp colors for CRT, 1280x1024 @ 24bpp colors for LCD
  • LCD Interface: Integrated Intel®82855GME up to 48-bit dual display LVDS
  Ordering Information
  • TF-HSB-813S-A11-VE
    Half-size PCISA, Socket 479 Pentium-M Processor CPU Card, VGA/LVDS, 10/100 LAN, 5 USB, CF, AC97 Audio, Mini PCI, Rev. A1.1
  • TF-HSB-813S-A11-E2
    Half-size PCISA, Socket 479 Pentium-M Processor CPU Card, VGA/LVDS, 2 x 10/100 LAN, 5 USB, CF, AC97 Audio, Mini PCI, Rev. A1.1
  • TF-HSB-813S-A11-VG
    Half-size PCISA, Socket 479 Pentium-M Processor CPU Card, VGA/LVDS, 10/100/Gigabit Ethernet, 5 USB, CF, AC97 Audio, Mini PCI, Rev. A1.1

          Optional Accessories:

  • TF-PER-U00A
    AC97 Audio Daughter Board
  • 1701400802
    Flat Cable, 40P-40P-40P (UL: 2651, 15cm + 65cm), 80 cm for ATA33
  • 1701400800
    Flat Cable, 40P-40P-40P (UL: 20674, 15cm + 65cm), 80 cm for ATA100
  • 1701400702
    Flat Cable, 40P ATA-100 2.54 mm, BLUE/GRAY/BLACK 70cm for Hard Disk Drive
  • 1703300351
    LCD Cable, 30-pin to 20-pin, 35cm, for Hyundai HT12X11-200 12.1"/ 1024*768/ 3.3V LVDS Panel
  • 1703300352
    LCD Cable, 30-pin to 30-pin, 35cm, for Hyundai HT17E11-300 17"/ 1280*1024/ 3.3V LVDS Panel, Samsung LTM150XH-L04 15.1"/ 1024*768/ 3.3V LVDS Panel
