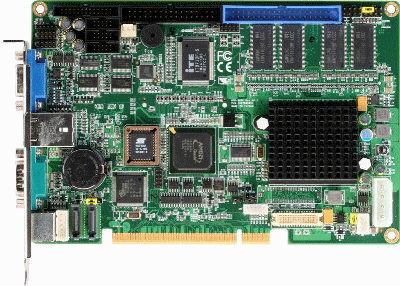

Click para ampliar a imagem

HSB-800P


AMD LX800
PCI Half-size SBC

    Features
  • AMD Geode LX 800 Processor
  • AMD Geode LX 800 + CS5536
  • Onboard 256 MB DDR400 Memory
  • 10/100Base-TX x 1
  • Integrated 2D Graphics Accelerator, VGA/LVDS Support
  • AC97 Audio Codec (Optional)
  • Ultra ATA33 x 1, SATA I x 2, CompactFlash™ Type II x 1
  • USB2.0 x 4, RS-232 x 3, RS-232/422/485 x 1, Parallel x 1, Digital I/O
  • PCI Expansion
  • +5V, +12V Operation, ATX Support

    Introduction

    Specifications

    System


  • Form Factor: PCI Half-Size SBC
  • Processor: AMD Geode™ LX800
  • System Memory: Onboard 256 MB DDR400 Memory
  • Chipset: AMD Geode™ LX 800 + CS5536
  • Ethernet: PCI 10/100Base-TX, RJ-45 x 1
    Realtek 8100C controller
  • BIOS: Award Plug & Play FWH BIOS-8 Mb ROM
  • Expansion Interface: PCI
  • Watchdog Timer: 1~255 step, can be set with software on Super I/O
  • RTC: Internal RTC
  • Battery: Lithium battery
  • Power Requirement: ATX 5V,12V, 4-Pin power connector
  • Operating Temperature: 32°F ~ 140°F (0°C ~ 60°C)
  • Board Size: 7.3" (L) x 4.8"(W)(185mm x 121mm)
  • Gross Weight: 0.61 lb (0.3 kg)
  • MTBF (Hours): 78,000
  • Power Consumption (Typical): 7.6W

          I/O: CS 5536 + ITE IT8712F

  • Storage
    ATA33 (Slave) x 1
    Standard FDD port x 1
    CompactFlash™ Type II connector (Master) x 1
    Onboard SATA I x 2
  • Serial Port: COM Port x 4 (Internal Pin Header x 3; Rear I/O x 1)
    COM 1 (Rear I/O), COM 3, COM 4 : RS-232
    COM 2 : RS-232/422/485
  • Parallel Port: Supports SPP/EPP/ECP mode
  • Universal Serial Bus: USB2.0 x 4 (pin header x 4)
  • PS/2 Port
    Mini-DIN PS/2 x 1, Keyboard & Mouse connector (Rear I/O)
    Internal keyboard Box header x 1
  • Audio (Daughter Board): AC 97 Codec

          Display: Supports CRT & LCD simultaneous display

  • VGA Controller: LX 800
  • Memory: Shared memory up to 16 MB
  • Resolutions
    1600 x 1200@32bpp at 100 MHz for CRT
    1600 x 1200@24bpp for LVDS
  • LCD Interface: Up to 24-bit, LVDS LCD Support
  Ordering Information
  • TF-HSB-800P-A10-VE
    Half-Size PCI CPU Card, AMD Geode™ LX800, VGA, 1 10/100Base-TX Ethernet,
    4 USB, CompactFlash™, ATX, Rev1.0

          Passive Backplane Options:

  • BP-204SP-P3-A11
    Wallmount, 4-slot Backplanes, 3 PCI, Single Segment, AT/ATX PCI (3/0/1) AT/ATX
  • BP-205SP-P4-A12
    Wallmount, 5-slot Backplanes, 4 PCI, Single Segment, AT/ATX PCI (4/0/1) AT/ATX
  • BP-206SP-P4-A10
    Wallmount, 6-slot Backplanes, 4 PCI, Single Segment, AT/ATX PCI (4/0/2) AT/ATX

          Optional Accessories:

  • TF-PER-U00A -- AC 97 Codec Daughter Board
