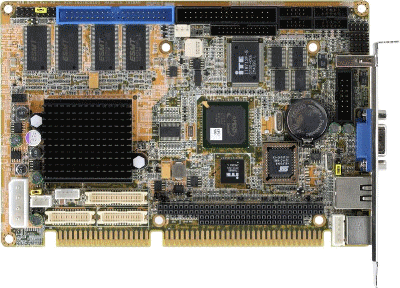

Click para ampliar a imagem

HSB-800I


AMD LX800
ISA Half-size SBC

    Features
  • AMD LX800 Processor
  • Onboard 128MB DDR400 Memory
  • Integrated 2D/3D Graphics Accelerator, VGA Support CRT/TFT
  • 10/100/1000Base-TX Ethernet x 1 (10/100 & GbE Optional)
  • USB 2.0 x 4/ RS-232 x 3; RS-232/422/485 x 1/ Parallel x 1/ IrDA Port x 1
  • Ultra ATA 33 x 1
  • Digital I/O; AC97; PC/104
  • CompactFlash Type II Socket
  • Watchdog Function 1~255 Sec.

    Introduction



AAEON releases the economic half-size Single Board Computer (SBC) – HSB-800I, which is designed to target the industrial control and automation market.  HSB-800I is based on AMD LX800 processor, which features the low power consumption and faster heat spreading to ensure the performance of the product.



HSB-800I supports onboard DDR400 system memory up to 128MB and the chipset of HSB-800I is AMDLX800 +CS5536. For the display function, the VGA controller is integrated to the AMD LX 800 processor that supports CRT and LCS simultaneous display.  Moreover, 2D/3D graphics accelerator has been integrated to provide higher performance to graphic processing.  The LCD interface is up to 24-bit and support LVDS/TTL LCD.

HSB-800I targets the common industrial applications include factory automation systems and production process control devices.   If you are looking for a cost-effective and reliable solution for your essential application, HSB-800I definitely is your first choice.


    Specifications

    System


  • Form Factor: ISA
  • Processor: AMD LX800
  • System Memory: Onboard 128MB DDR400 Memory
  • Chipset: AMD LX800 + CS 5536
  • Ethernet:
    PCI 10/100Mb or 10/100/1000Mb LAN x 1 (optional), RJ-45 x 1 , Realtek 8100C/8110S controller optional
  • BIOS: Award Plug & Play FWH BIOS – 8Mb ROM
  • IDE: Interface ATA-33 x 1 channel
  • SSD: CFD type II Connector x 1
  • Expansion Interface: ISA / PC/104
  • Watchdog Timer: 1~255 step, can be set with software on Super I/O
  • RTC: Internal RTC
  • Battery: Lithium Battery
  • Power Requirement: AT 5V , 12V
  • Operating Temperature: 0oC ~ 60oC
  • Board Size: 7.3" (L) x 4.8" (W) (185 mm x 121 mm)
  • Gross Weight: 0.71 lb (0.3 kg)

          I/O: CS 5536

  • Serial Port:
    COM port x 4: (Internal Pin Header x 4)
    COM 1, COM 3, COM 4: RS-232
    COM 2: RS-232/422/485
  • Parallel Port: Supports SPP/ EPP/ ECP mode
  • Universal Serial Bus
    USB 2.0 port x 4
    5 x 1 pin header x 3
    Type A Connector x 1
  • Floppy Drive Interface:
    Standard FDD port x 1, support up to one floppy devices
  • Keyboard and Mouse
    Mini-DIN PS/2 K/B and Mouse connector x 1
    Internal keyboard pin header x 1
  • IrDA: Supports One IrDA header
  • Audio: Realtek ALC203 AC97 Codec / MIC-in / Line-in / Line-out / CD-in

          Display: Supports CRT & LCD simultaneous display

  • VGA Controller: LX800
  • Memory: Shared memory up to 16M
  • Resolutions:
    1600 x 1200 @ 32bpp at 100MHz for CRT; 1600 x 1200 @ 24bpp for LCD
  • LCD Interface: Up to 24-bit, LVDS/TTL LCD Support
  Ordering Information
  • TF-HSB-800I-A10-VE
    Half-Size ISA CPU Card, AMD LX800,VGA,1 LAN, 4 USB, CompactFlash, PC/104, Digital I/O, AC97, AT, Rev.A1.0
  • TF-HSB-800I-A10-VG
    Half-Size ISA CPU Card, AMD LX800,VGA,1 Gbe, 4 USB, CompactFlash, PC/104, Digital I/O, AC97, AT, Rev.A1.0

          Passive Backplane Options:

  • TF-BP-204SI-A13
    Wallmount, ISA 4-slot Backplane, 4 ISA Single Segment, AT, Rev.A1.3
  • TF-BP-206SI-A11
    Wallmount, ISA 6-slot Backplane, 6 ISA Single Segment, AT/ATX, Rev.A1.1
  • BP-208SI-A00
    Wallmount, ISA 8-slot Backplane, 8 ISA Single Segment, AT, Rev.A0.0
  • BP-214SI-V61
    Wallmount, ISA 14-slot Backplane, 14 ISA Single Segment, AT, Rev.A0.0
