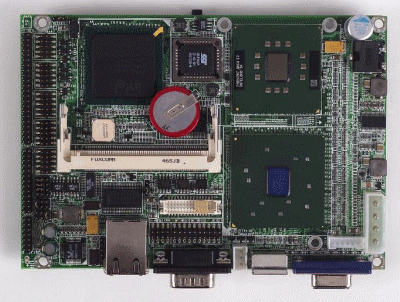

GENE-8310
3.5" SubCompact Board with
Onboard Intel Celeron M
Processors


    Features
  • Onboard Intel Celeron M 1.3GHz/ Intel Celeron M Processors at 600MHz & 1GHz
  • Up to 48-bit Dual Channel LVDS TFT LCD
  • 10/100Base-TX Fast Ethernet
  • AC97 2 Channel Audio
  • Supports Type II CompactFlash
  • COM x 2/ USB2.0 x 4/ TV-out/ DVI/ Digital I/O Ports
  • +5V Only Operation
    Specifications
    System

  • Form Factor: 3.5"
  • Processor: Onboard Intel Celeron M Processor 1.3GHz/ Intel Celeron M Processors at 600MHz & 1GHz
  • System Memory: 200-pin DDR SODIMM x 1, Max. 1GB (DDR266)
  • Chipset: Intel 852GM + ICH4
  • I/O Chipset: ITE IT8712
  • Ethernet: Intel 82562, 10/100Base-TX, RJ-45 connector x 1
  • BIOS: AWARD 512KB FLASH ROM
  • Wake On LAN: Yes
  • Watchdog Timer: Generates a time-out system reset
  • H/W Status Monitoring: Supports power supply voltages, fan speed and temperature monitoring
  • Solid Storage Disk: Type II CompactFlash slot x 1
  • Expansion Interface: Mini PCI x 1
  • Battery: Lithium battery
  • Power Requirement: +5V/ AT/ ATX
  • Power Consumption (Typical):
    Intel ULV Celeron 600MHz & 1.3GHz, DDR333 256MB
    AT Power
    For 600MHz: 1.78A @ 5V
    For 1.3GHz: 3.45A @ 5V
  • Board Size: 5.75"(L) x 4"(W) (146mm x 101.6mm)
  • Gross Weight: 0.88 lb (0.4 kg)
  • Operating Temperature: 32oF~ 140oF (0oC ~ 60oC)
  • Storage Temperature: -40oF~176oF (-40oC~80oC)
  • Operating Humidity: 0% ~ 90% relative humidity, non-condensing
  • MTBF (Hours): 76,894

    I/O

  • MIO: EIDE x 1 (UDMA33 x 1), Keyboard + Mouse x 1,
    RS-232 x 1, RS-232/422/485 x 1, Parallel x 1
  • IrDA: One IrDA Tx/Rx header
  • Audio: MIC-in, Line-in, Line-out, CD-in
  • USB: Two 5x2 pin headers support 4 USB 2.0 ports
    (does not support Wake-up function )
  • Digital I/O: Supports 8-bit (Programmable)

    Display:
    Supports CRT/ LCD, CRT/ TV, CRT/ DVI, LCD/ DVI and LCD/ TV Simultaneous/ dual view displays

  • Chipset: Intel 852GM + Chrontel 7009
  • Memory: Shared system memory up to 64MB with DVMT
  • Resolutions:
    Up to 1600x1200 @ 32bpp colors for CRT
    Up to 1280x1024 @ 24bpp colors for LCD
  • LCD Interface: Up to 48-bit dual channel LVDS
  • TV-out: Supports NTSC and PAL standard, S-Terminal and Composite Video
  • DVI: Yes
  Ordering Information
  • TF-GENE-8310-A11
    3.5" Board, LV Celeron M 600, LCD-DVI-TV, DDR, LAN, 2 COM, USB2.0, CF, Mini PCI, AT/ATX, Rev. A1.1
  • TF-GENE-8310-A11-01
    3.5" Board, Celeron M 1.3G, LCD-DVI-TV, DDR, LAN, 2 COM, USB2.0, CF, Mini PCI, AT/ATX, Rev. A1.1
  • TF-GENE-8310-A11-02
    3.5" Board, UV Celeron M 1.0G, LCD-DVI-TV, DDR, LAN, 2 COM, USB2.0, CF, Mini PCI, AT/ATX, Rev. A1.1
