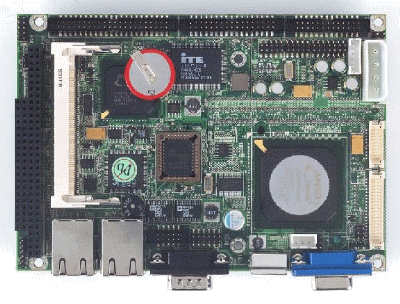

GENE-5312
3.5" SubCompact Board with
AMD Geode GX Series

• Features
• Specifications
• Ordering Information

    Specifications

System


• Form Factor: 3.5"
• Processor: Onboard AMD Geode GX 466/500 (optional)/533 CPU
• System Memory: 200-pin DDR SODIMM x 1, Max. 512MB (DDR 266)
• Chipset: AMD Geod + CS5535
• I/O Chipset: ITE IT8712
• Ethernet: Realtek RTL 8100, 10/100Base-TX, RJ-45 connector x 2
• BIOS: AWARD 256KB FLASH ROM
• Wake On LAN: Yes
• Watchdog Timer: Generates a time-out system reset
• H/W Status Monitoring:
  Supports power supply voltages and temperature monitoring
• Solid Storage Disk: Type II CompactFlash slot x 1
• Expansion Interface: Mini PCI x 1, PC/104 x 1
• Battery: Lithium battery
• Power Requirement: 5V/AT/ATX
• Power Consumption (Typical): 1.29A @ 5V
• Board Size: 5.75" (L) x 4" (W) (146 mm x 101.6 mm)
• Gross Weight: 0.8 lb (0.4 kg)
• Operating Temperature: 32^oF~ 140^oF (0^oC ~ 60^oC)
• Storage Temperature: -40^oF~176^oF (-40^oC~80^oC)
• Operating Humidity: 0% ~ 90% relative humidity, non-condensing
• MTBF (Hours): 88,532

  I/O


• MIO: EIDE x 1(UDMA 33 x 1), Floppy Disk Drive x 1, Keyboard+Mouse x 1,
  RS-232 x 1, RS-232/422/485 x 1, Parallel x 1
• IrDA: One IrDA Tx/Rx header
• Audio: MIC-in, Line-in, Line-out, CD-in
• USB:
  One 5 x 2 pin header supports 2 USB1.1 ports (does not support Wake-up function)
• Digital I/O: Supports 8-bit (Programmable)

  Display


• Chipset: AMD Geode GX
• Memory: Shared System Memory up to 16MB
• Resolutions:
  Up to 1280x1024@24bpp colors for CRT
  Up to 1024x768@24bpp colors for LCD
• LCD Interface: Up to 24-bit TTL/ LVDS TFT/ LCD
