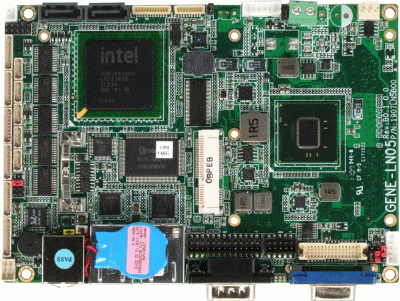

Click para visualizar melhor

GENE-LN05
3.5" SubCompact Board with
Intel Atom N455/D525 Processor
 Extended temperature version available

Datasheet
GENE-LN05B

    Features
  • Intel Atom N455/D525 Processor
  • Intel ICH8M
  • DDR3 800 SODIMM, Max. 4 GB For Intel Atom D525
  • DDR3 800 SODIMM, Max. 2 GB For Intel Atom N455
  • Gigabit Ethernet x 2
  • CRT, 18/24-bit Single Channel LVDS LCD
  • 2CH HD Audio
  • SATA 3.0Gb/s x 2 (Optional RAID 0 & 1), CompactFlash x 1
  • USB2.0 x 7, COM x 6, Parallel x 1, 8-bit Digital I/O
  • Onboard 4/5/8-wire Resistive Touch Screen Controller
  • Mini Card x 1
  • +12V or +5V (Optional)
  • Onboard Trusted Platform Module (Optional)
    Specifications
    System

  • Form Factor: 3.5"
  • Processor: Intel Atom N455/D525 1.8 GHz Processor
  • System Memory:
    204-pin DDR3 SODIMM x 1, Max. 4 GB (DDR3 800) for IntelR Atom? D525
    204-pin DDR3 SODIMM x 1, Max. 2 GB (DDR3 800) for IntelR Atom? N455
  • Chipset: Intel ICH8M
  • I/O Chipset: Nuvoton W83627DHG-P, Fintek F81216DG
  • Ethernet: Intel 82567V & 82583V, 10/100/1000Base-TX, RJ-45 x 2
  • BIOS: AMI Plug & Play SPI BIOS - 2MB Flash
  • Wake on LAN: Yes
  • Watchdog Timer: Generates a time-out system reset
  • H/W Status Monitoring:
    Supports power supply voltages and temperature monitoring
  • Expansion Interface: Mini Card x 1, LPC bus
  • Trusted Platform Module (TPM): Infineon SLB 9635 TT 1.2 (Optional)
  • Battery: Lithium battery
  • Power Requirement: +12V or +5V (optional), AT/ATX
  • Power Consumption (Typical):
    Intel Atom D525, DDR3 1GB
    1.29A @ +12V
  • Board Size: 5.75"(L) x 4"(W) (146mm x 101.6mm)
  • Gross Weight: 0.88lb (0.4kg)
  • Operating Temperature:
    32°F ~ 140°F (0°C ~ 60°C),
    -4°F ~ 158°F (-20°C ~ 70°C) for WiTAS 1
  • Storage Temperature: -40°F ~ 176°F (-40°C ~ 80°C)
  • Operating Humidity: 0% ~ 90% relative humidity, non-condensing
  • MTBF (Hours): 66,000

    I/O

  • Storage: SATA 3.0Gb/s x 2, CompactFlash? x 1
  • Serial Port: RS-232 x 5, RS-232/422/485 (auto flow) x 1
  • Parallel Port: SPP/EPP/ECP x 1
  • Universal Serial Bus: USB2.0 x 7
  • PS/2 Port: Keyboard x 1, Mouse x 1
  • Digital I/O: Supports 8-bit (Programmable)
  • Audio: Line-in, Line-out, Mic-in
  • Touch Screen: Supports 4/5/8-wire resistive touch screen

          Display: Supports CRT/LCD simultaneous/ dual view display

  • Chipset: Intel N455/D525 integrated
  • Memory: Shared system memory up to 224MB/DVMT 4.0
  • Resolutions:
    Up to 1920 x 1440 for CRT (D525)
    Up to 1280 x 1024 for CRT (N455)
    Up to 1366 x 768 or 1280 x 800 for LCD
  • LCD Interface: 18/24-bit single channel LVDS LCD
  Ordering Information
  • TF-GENE-LN05-B10
    Intel Atom D525, FAN, CRT + LVDS, 1CH 18/24-bit LVDS, SATA x 2,
    CompactFlash x 1, Gigabit Ethernet x 2, USB x 7, RS-232 x 5, RS-232/422/485 x 1,
    Mini Card x 1, +12V/ AT/ATX, 0°C ~ 60°C
  • TF-GENE-LN05-B10-01
    Intel Atom N455, Fanless, CRT + LVDS, 1CH 18/24-bit LVDS, SATA x 2,
    CompactFlash x 1, Gigabit Ethernet x 2, USB x 7, RS-232 x 5, RS-232/422/485 x 1,
    Mini Card x 1, +12V/ AT/ATX, 0°C ~ 60°C
  • TF-GENE-LN05W1-B10-01 (-20°C ~ 70°C)
    Intel Atom N455, Fanless, CRT + LVDS, 1CH 18/24-bit LVDS, SATA x 2,
    CompactFlash x 1, Gigabit Ethernet x 2, USB x 7, RS-232 x 5, RS-232/422/485 x 1,
    Mini Card x 1, +12V/ AT/ATX, WiTAS1 -20°C ~ 70°C

Optional Accessories

  • 1700050207 -- USB Cable, Length 20cm
  • 1701090150 -- COM Port Cable, Length 15cm
  • 1709100254 -- Audio Cable, Length 25cm
  • 1709070500 -- SATA Cable, Length 50cm
  • 1701260200 -- Parallel Port Cable, Length 20cm
  • 1702002010 -- Big 4P Power Input Cable for +12V Input, Length 10cm
  • 1702150155 -- Power Cable for 2.5" SATA Hard Disk, Length 15cm
  • 170220020B -- Conversion Cable ATX Power Supply, Length 20cm
  • 170204010P -- Big Single row 4-Pin Power Input Cable for +5V Input, Length 10cm
  • 1700060157 -- KB/Mouse Cable
