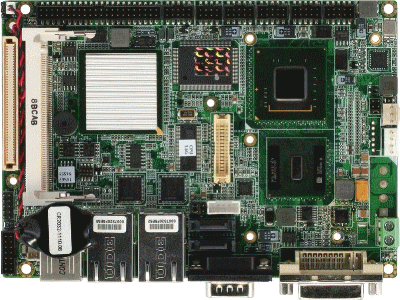

GENE-9455 Rev.A
3.5" SubCompact Board with Onboard Intel Atom N270 Processor

Datasheet
GENE-9455A

    Features
  • Onboard Intel Atom N270 Processor With 1.6 GHz
  • Intel 945GSE + ICH7M
  • SODIMM DDR2 400/533, Max. 2 GB
  • Gigabit Ethernet x 2
  • CRT or DVI, 18-bit Dual-channel LVDS LCD
  • AC97 2.3 Codec 2CH Audio
  • SATA 1.5Gb/s x 2, EIDE x 1 & CompactFlash? x 1
  • USB2.0 x 4, COM x 4, 8-bit Digital I/O
  • Mini PCI and ECX Proprietary Expansion
  • +8.5V to +19V Wide DC Input Range or +5V Only Operation
  • 4/5/8-wire Touch Screen Controller (Optional)
    Specifications
    System

  • Form Factor: 3.5"
  • Processor: Onboard Intel Atom N270 Processor 1.6 GHz , FSB 533 MHz
  • System Memory: 200-pin DDR2 SODIMM x 1, Max. 2 GB (DDR2 400/533)
  • Chipset: Intel 945GSE + ICH7M
  • I/O Chipset: ITE8781
  • Ethernet: Intel 82574L, 10/100/1000Base-TX, RJ-45 x 2
  • BIOS: Award Plug & Play SPI BIOS - 2 MB Flash
  • Wake On LAN: Yes
  • Watchdog Timer: Generates a time-out system reset
  • H/W Status Monitoring:
    Supports power supply voltages and temperature monitoring
  • Expansion Interface: Mini PCI x 1 & ECX Proprietary Expansion x 1
  • Battery: Lithium battery
  • Power Requirement:
    +8.5V to +19V Wide DC Input Range (AT only) or +5V only (AT/ATX)
  • Power Consumption (Typical):
    Intel Atom N270, DDR2 667 2 GB
    2.89A @ +5V
  • Board Size: 5.75" (L) x 4" (W) (146mm x 101.6mm)
  • Gross Weight: 0.88 lb (0.4 kg)
  • Operating Temperature: 32°F ~ 140°F (0°C ~ 60°C)
  • Storage Temperature: -40°F ~ 176°F (-40°C ~ 80°C)
  • Operating Humidity: 0% ~ 90% relative humidity, non-condensing
  • MTBF (Hours): 70,000

    I/O

  • Storage:
    EIDE x 1 (UDMA-100 for two devices), SATA 1.5Gb/s x 2, Type 2 CompactFlash x 1
  • Serial Port: RS-232 x 3, RS-232/422/485 (auto flow) x 1
  • USB: USB2.0 x 4
  • PS/2 Port: Keyboard x 1, Mouse x 1
  • Digital I/O: Supports 8-bit (Programmable)
  • Audio: Line-in, Line-out, Mic-in & CD-in
  • Touch Screen (optional): Supports 4/5/8-wire resistive touch screen

          Display: Supports CRT/LCD simultaneous/ dual view displays

  • Chipset: Intel 945GSE integrated
  • Memory: Shared system memory up to 224 MB/ DVMT3.0
  • Resolutions:
    Up to 2048 x 1536 for CRT
    Up to 1024 x 768 for LCD
  • LCD Interface: Up to 18-bit dual-channel LVDS
  • DVI (optional): DVI x 1
  Ordering Information
  • TF-GENE-9455-A11
    Intel Atom N270, FAN, DVI + LVDS, 2CH 18-bit, EIDE x 1, SATA x 2,
    CompactFlash x 1, Gigabit Ethernet x 2, USB x 4, RS-232 x 3, RS-232/422/485 x 1,
    Mini PCI x 1, ECX Proprietary Expansion x 1, +8.5V ~ 19V DC, 0°C ~ 60°C
  • TF-GENE-9455-A11-01
    Intel Atom N270, FAN, DVI + LVDS, 2CH 18-bit, EIDE x 1, SATA x 2,
    CompactFlash x 1, Gigabit Ethernet x 2, USB x 4, RS-232 x 3, RS-232/422/485 x 1,
    Mini PCI x 1, ECX Proprietary Expansion x 1, +5V DC, 0°C ~ 60°C
  • TF-GENE-9455-A11-02
    Intel Atom N270, FAN, CRT + LVDS, 2CH 18-bit, EIDE x 1, SATA x 2,
    CompactFlash x 1, Gigabit Ethernet x 2, USB x 4, RS-232 x 3, RS-232/422/485 x 1,
    Mini PCI x 1, ECX Proprietary Expansion x 1, +8.5V ~ 19V DC, 0°C ~ 60°C
  • TF-GENE-9455-A11-03
    Intel Atom N270, FAN, CRT + LVDS, 2CH 18-bit, EIDE x 1, SATA x 2,
    CompactFlash x 1, Gigabit Ethernet x 2, USB x 4, RS-232 x 3, RS-232/422/485 x 1,
    Mini PCI x 1, ECX Proprietary Expansion x 1, +5V DC, 0°C ~ 60°C
  • TF-GENE-9455-A11-04
    Intel Atom N270, Fanless, DVI + LVDS, 2CH 18-bit, EIDE x 1, SATA x 2,
    CompactFlash x 1, Gigabit Ethernet x 2, USB x 4, RS-232 x 3, RS-232/422/485 x 1,
    Mini PCI x 1, ECX Proprietary Expansion x 1, +8.5V ~ 19V DC, 0°C ~ 60°C
  • TF-GENE-9455-A11-05
    Intel Atom N270, Fanless, DVI + LVDS, 2CH 18-bit, EIDE x 1, SATA x 2,
    CompactFlash x 1, Gigabit Ethernet x 2, USB x 4, RS-232 x 3, RS-232/422/485 x 1,
    Mini PCI x 1, ECX Proprietary Expansion x 1, +5V DC, 0°C ~ 60°C
  • TF-GENE-9455-A11-06
    Intel Atom N270, Fanless, CRT + LVDS, 2CH 18-bit, EIDE x 1, SATA x 2,
    CompactFlash x 1, Gigabit Ethernet x 2, USB x 4, RS-232 x 3, RS-232/422/485 x 1,
    Mini PCI x 1, ECX Proprietary Expansion x 1, +8.5V ~ 19V DC, 0°C ~ 60°C
  • TF-GENE-9455-A11-07
    Intel Atom N270, Fanless, CRT + LVDS, 2CH 18-bit, EIDE x 1, SATA x 2,
    CompactFlash x 1, Gigabit Ethernet x 2, USB x 4, RS-232 x 3, RS-232/422/485 x 1,
    Mini PCI x 1, ECX Proprietary Expansion x 1, +5V DC, 0°C ~ 60°C
  • TF-GENE-9455-A11-08
    Intel Atom N270, FAN, CRT + LVDS, 2CH 18-bit, EIDE x 1, SATA x 2,
    CompactFlash x 1, Gigabit Ethernet x 1, USB x 4, RS-232 x 3, RS-232/422/485 x 1,
    Mini PCI x 1, ECX Proprietary Expansion x 1, +8.5V ~ 19V DC, 0°C ~ 60°C
  • TF-GENE-9455-A11-09
    Intel Atom N270, FAN, CRT + LVDS, 2CH 18-bit, EIDE x 1, SATA x 2,
    CompactFlash x 1, Gigabit Ethernet x 1, USB x 4, RS-232 x 3, RS-232/422/485 x 1,
    Mini PCI x 1, ECX Proprietary Expansion x 1, +5V DC, 0°C ~ 60°C
  • TF-GENE-9455-A11-10
    Intel Atom N270, Fanless, CRT + LVDS, 2CH 18-bit, EIDE x 1, SATA x 2,
    CompactFlash x 1, Gigabit Ethernet x 1, USB x 4, RS-232 x 3, RS-232/422/485 x 1,
    Mini PCI x 1, ECX Proprietary Expansion x 1, +8.5V ~ 19V DC, 0°C ~ 60°C
  • TF-GENE-9455-A11-11
    Intel Atom N270, Fanless, CRT + LVDS, 2CH 18-bit, EIDE x 1, SATA x 2,
    CompactFlash x 1, Gigabit Ethernet x 1, USB x 4, RS-232 x 3, RS-232/422/485 x 1,
    Mini PCI x 1, ECX Proprietary Expansion x 1, +5V DC, 0°C ~ 60°C
Optional Accessories
  • 1709100208 -- USB Cable, Length 20cm
  • 1701100206 -- COM Port Cable, Length 20cm
  • 1709140181 -- Audio Cable, Length 18cm
  • 1709070500 -- SATA Cable, Length 50cm
  • 1702151200 -- SATA Power Cable, Length 12cm
  • TF-PER-T061-A10 -- ECX Expansion Board, LVDS, 2 SATA, 4 COM,1 USB, Rev. A1.0
  • TF-PER-T099-A10 -- ECX Extension Board, LVDS, PCI-Express, 2 COM, Rev. A1.0
  • TF-PER-T099-A10-01 -- ECX Extension Board, LVDS, Mini Card, 2 COM, Rev. A1.0
