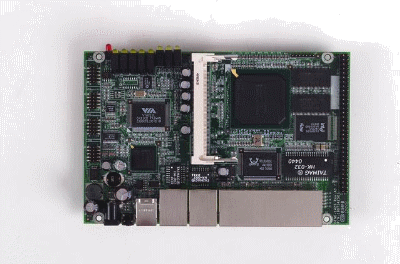

GENE-1425
3.5" SubCompact Board with Onboard RISC Intel XScale IXP420/422/425 Network Processor


    Features
  • Intel XScale® IXP420/422/425 Network Processor
  • Onboard 32/64/128MB SDRAM
  • WAN Port x 2, LAN Port x 4
  • Onboard 16MB StrataFlash®
  • COM Port x 2, USB 2.0 Host x 2, USB1.1 Client x 1
  • Type III Mini PCI Slot x 2
  • MontaVista Linux Pre-installed In Onboard Flash Memory
  • +9V to +24V DC Input
    Specifications
    System

  • Form Factor: 3.5"
  • Processor:
    Onboard Intel XScale® IXP420/422/425 266/533MHz Network Processor
  • System Memory: Onboard 32/64/128MB SDRAM
  • Ethernet:
    Realtek RTL8305SC for one WAN port and four LAN ports
    Intel® 82551QM for an additional WAN port 10/100Base-TX, RJ-45 x 6
  • Boot Loader: RedBoot
  • Watchdog Timer: Generates a time-out system reset, setting via software
  • Expansion Interface: Type III Mini PCI socket x 2, Expansion bus
  • Power Requirement: +9V ~ +24V
  • Power Consumption (Typical):
    266MHz, 32MB SDRAM
    +12V @ 0.39A
  • Board Size: 6.14" (L) x 4" (W) (156 mm x 101.6 mm)
  • Gross Weight: 0.88 lb (0.4 kg)
  • Operating Temperature: 32ºF ~ 140ºF (0ºC ~ 60ºC)
  • Storage Temperature: -40ºF ~ 176ºF (-40ºC ~ 80ºC)
  • Operating Humidity: 0% ~ 90% relative humidity, non-condensing
  • MTBF (Hours): 90,000

    I/O

  • Storage: Intel® StrataFlash® 16MB, Type II CompactFlash™
  • Serial Port: RS-232 x 2 (Tx, Rx, CTS, RTS only)
  • USB: USB 2.0 host x 2, USB1.1 client x 1
  • Digital I/O: Supports 8-bit (programmable)
  Ordering Information
  • TF-GENE-1425-A10
    RISC, IXP420, 32MB RAM, 4 LAN, 2 WAN, 2 COM, USB 2.0, 16MB Flash, CompactFlash™, 2 Mini PCI, Rev. A1.0
