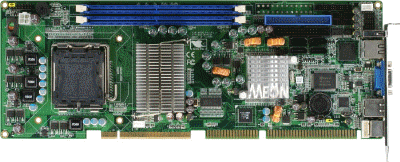

Intel Core 2 Duo LGA775 PICMG 1.0 Full-size Single Board Computer, Modelo FSB-945G

Full-size CPU Cards Micro Industriais
	FSB-945G
Features Introduction Specifications Ordering Information Datasheet	Intel Core 2 Duo LGA775 PICMG 1.0 Full-size SBC
Features Intel Core 2 Duo/ Pentium 4/ Celeron D LGA775 CPUs, FSB 533/800 MHz Intel 945GC + Intel ICH7 DDRII 400/533/667 Memory Up To 4 GB Integrated Intel Enhance Graphics Core, VGA Support PCI-Express [x1] 10/100/1000Base-TX Ethernet x 2 Ultra ATA100 x 1, SATA-II Port x 4 USB2.0 x 7, COM x 2, Parallel x 1, IrDA Port x 1 ISA, PCI, Expansions ATX 2.1
Introduction
Specifications System Form Factor: PICMG1.0 Full-Size SBC Processor Intel® Core™ 2 Duo/ Pentium® 4 /Celeron® D LGA775 CPUs, FSB 533/800 MHz System Memory: 240-pin 1.8V DDR II DIMM Socket x 2 up to 4 GB, Support Dual-channel DDR II memory (DDR II 400/533/667 MHz) Chipset: Intel® 945GC + Intel® ICH7 Ethernet: PCI Express [x1] 10/100Mb & 10/100/1000Mb LAN optional, RJ-45 x 2 LAN1: Intel® 82562GZ / 82573L (co-Lay) LAN2: Intel® 82574L BIOS: Award Plug & Play SPI Flash – 8 Mb ROM Expansion Interface: ISA/PCI connector Watchdog Timer: 1~255 step, can be set with software on Super I/O RTC: Internal RTC Battery: Lithium Battery Power Requirement: ATX2.1 Board Size (L x W): 13.3" x 5" (338.6mm x 126.4mm) Gross Weight: 1.2lb (0.5kg) Operating Temperature: 32°F ~ 140°F (0°C ~ 60°C) MTBF (Hours): 60,000 I/O: Winbond 83627EHG Storage: IDE Slot x 1, SATAII x 4, Standard Floppy Port x 1 Serial Port: COM Port x 2: (Internal Pin Header x 2) COM1: RS-232 COM2: RS-232/422/485 Parallel: Supports SPP/EPP/ ECP mode Universal Serial Bus: USB2.0 x 7 Internal 5x2-pin header x 3, up to USB x 6 Type A connector onboard x 1 PS/2 Port: Keyboard x 1, Mouse x 1 Audio (Daughter board): AC97 Audio Codec, MIC-in/ Line-in/ Line-out/ CD-in IrDA: Supports One IrDA header Display VGA Controller: Integrated VGA on Intel® 945GC Memory: Shared memory up to 256 MB Resolution: Up to 2048 x 1536@32bpp for CRT
Ordering Information TF-FSB-945G -A10-VE Full-Size PICMG1.0 CPU Card, LGA775 Core™ 2 Duo CPUs, VGA, 1 x 10/100 LAN, 7 USB, Audio, 4 SATA, Rev A1.0 TF-FSB-945G-A10-G2 Full-Size PICMG1.0 CPU Card. LGA775 Core™ 2 Duo CPUs, VGA, 2 x GbE LAN, 7 USB, Audio, 4 SATA, Rev A1.0 Passive Backplane Options: TF-BP-213RG-P4 Rackmount, PICMG, 13-slot R.PCI Backplane, 4 PCI/7 ISA, Single Segment, AT/ATX PICMG 4/8/2 (PCI/ ISA/ PICMG) AT, ATX, 3-pin ATX extend TF-BP-214SG-P4 Rackmount, PICMG, 14-slot Backplane, 4 PCI/ 8 ISA, Single Segment, AT/ATX PICMG 4/9/2 (PCI/ ISA/ PICMG) AT, ATX, 3-pin ATX extend TF-BP-214SG-P7 Rackmount, PICMG, 14-slot Backplane, 7 PCI/ 5 ISA, Single Segment, AT/ATX PICMG 7/6/2 (PCI/ ISA/ PICMG) AT, ATX, 3-pin ATX extend TF-BP-214SG-P12 Rackmount, PICMG, 14-slot Backplane, 12 PCI/1 ISA Single Segment, AT/ATX PICMG 12/2/2 (PCI/ ISA/ PICMG) AT, ATX, 3-pin ATX extend TF-BP-208SG-P4 Wallmount, PICMG, 8-slot Backplane, 4 PCI/ 2 ISA, Single Segment, AT/ATX PICMG 4/3/2 (PCI/ ISA/ PICMG) AT, ATX, 3-pin ATX extend TF-BP-208SG-P7 Wallmount, PICMG, 8-slot Backplane, 7 PCI/ 0 ISA, Single Segment, AT/ATX PICMG 7/0/1 (PCI/ ISA/ PICMG) AT, ATX, 3-pin ATX extend TF-BP-206VG-P4 Rackmount, PICMG, 6-slot Backplane, 4 PCI/ 0 ISA, Single Segment, AT/ATX PICMG 4/0/1 (PCI/ ISA/ PICMG) AT, ATX, 3-pin ATX extend TF-BP-206VG-P2 Rackmount, PICMG, 6-slot Backplane, 2 PCI/ 3 ISA, Single Segment, ATX PICMG 2/3/1 (PCI/ ISA/ PICMG) AT, ATX, 3-pin ATX extend TF-BP-206SG-P4 Wallmount, PICMG, 6-slot Backplane, 4 PCI, 2 ISA, Single Segment, ATX PICMG 4/2/2 (PCI/ ISA/ PICMG) AT, ATX, 3-pin ATX extend TF-BP-206SG-P3 Wallmount, PICMG, 6-slot Backplane, 3 PCI, 3 ISA, Single Segment, ATX PICMG 3/3/2 (PCI/ ISA/ PICMG) ATX, 3-pin ATX extend Optional Accessories: TF-PER-C101 -- Dual PCI-E Gigabit Ethernet Card w/Broadcom BCM 5789/5751/5721 TF-PER-C102 -- Dual PCI-E Gigabit Ethernet Card w/Marvell® 88B8036/53 TF-PER-U00A -- 5.1 Channel Audio 4 USB Connectors 1703030501 -- ATX Power from Backplane to CPU Card 1702030301 -- ATX Power Simulation AT Power Switch Wire 1701400800 -- P-ATA100 Cable 80cm 1709070780 -- SATA Cable 78cm 1702043000 -- ATX 12V Extension Cable 1701260307 -- 1 Serial Port + 1 Parallel Port with Bracket 1701100305 -- 1 Serial port with Bracket 1998666611 -- P-ATA IDE Removable Frame-Black 1998666612 -- P-ATA IDE Removable Frame-White 1998666613 -- SATA IDE Removable Frame-Black 1998666614 -- SATA IDE Removable Frame-White
