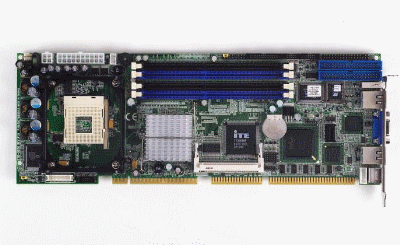

Click para ampliar imagem

FSB-865G


Intel Pentium 4 Socket 478

PICMG Full-size SBC
    Features
  • Intel Pentium 4 CPU up to 3.6GHz
  • DDR400 Memory Supports up to 4GB
  • Integrates AGP 8X 2D/3D Graphics Accelerator, VGA Support
  • Dual 10/100/1000Base-TX Ethernet
  • Integrates AC97 Codec Audio (Daughter Board Optional)
  • USB 2.0 Port x 7/ RS-232 x 1, RS-232/422/485 x 1/ Parallel x 1/ IrDA Port x 1
  • Ultra ATA100 & SATA & CompactFlash Type-II Storage
  • Watchdog Function 1 ~ 255 Sec.

    Introduction



Introducing AAEON's new FSB-865G, powered by Intel
Pentium 4/Prescott processors, a full size form factor single board computer
(SBC) with an onboard VGA, 10/100/1000Mb LAN optional and seven
USB 2.0 ports.

The FSB-865G successfully employs Intel's  advanced 82865GV chipset,
which supports CPU frequencies up to 3.2 GHz with a front side bus
running at 400/533/800MHz. FSB-865G supports Intel Hyper-Threading
Technology which gives you the best overall Pentium 4/Prescott processor
performance available. FSB-865G also provides high memory capacity up to
4 GB DDR DRAM (DDR 200/266/333/400) and supports Dual-channel
(128 bits wide) DDR memory interface.


In addition to its powerful computing engine, the full functional design of
the board includes features such as i82865GV on-chip integrated 2D/3D
graphics engine, built-in USB 2.0 and an onboard CompactFlash Type II
socket. FSB-865G delivers super graphic performance without additional
cost by using the integrated Intel 82865GV chipset, and utilizes the unique Intel
Extreme Graphics architecture to maximize VGA performance capability.
Seven USB 2.0 ports provide an expandable, Plug and Play serial interface
that ensures a standard low-cost connection for peripheral devices.


Industrial applications will benefit from the seven USB 2.0 by three
pin-headers and one Type A connector onboard, offering 480Mbps
high-speed efficiency and value without compromising performance.


Moreover, FSB-865G can also be equipped with Dual Intel Ethernet controllers.
One of these options provides superior 1 Gbps networking access ability for
high speed networking applications such as gateway, VPN, and Mini server.
In short, this product is a versatile Pentium 4/ Prescott full-size CPU card
with the best cost-performance ratio for CTI, networking and mini-server
markets.



    Specifications

    System


  • Form Factor: PICMG Full-size SBC

  • Processor: Intel Pentium 4/ Celeron CPUs, FSB: 400/533/800 MHz , supports up to 3.6GHz, does not support Prescott processors

  • System Memory: 184-pin 2.5V DDR DIMM Socket x 4, total up to 4 GB, Supports Dual Channels DDR memory (DDR 266/333/400)

  • Main Chipset: Intel 865GV + Intel 82801EB/ER (ICH5/ICH5R optional)

  • Ethernet: 10/100Mb or 10/100/1000Mb LAN optional, RJ-45 x 2, Intel 82562EZ/ 82547GI/ 82551QM /82541GI controller

  • BIOS: Award Plug & Play Firmware Hub BIOS - 4Mb ROM

  • IDE Interface: ATA-100 x 2 channels (Supports two ATAPI devices), SATA-I x 2 (Supports two SATA devices, Raid function optional)

  • SSD: Supports CF Type II Connector

  • Expansion Interface: ISA/ PCI/ Mini PCI Type III

  • Watchdog Timer: 1 ~ 255 Sec., can be set with software on Super I/O

  • RTC: Internal RTC

  • Battery: Lithium battery

  • Power Requirement: ATX, ATX12V

  • Operating Temperature: 32oF ~ 140oF (0oC ~ 60oC )

  • Board Size: 13.3"(L) x 4.8"(W) (338mm x 122mm )

  • Gross Weight: 1.2 lb (0.5 kg)

  • MTBF (Hours): 66,027

  • Power Consumption (Typical): 53W, with Pentium 4 2.4GHz/ FSB 533MHz/ 512KB L2 Cache

          I/O: I/O Chip /W83627HF

  • Serial Port: COM port x 2: (Internal Pin Header, External D-sub x 2), COM 1: RS-232, COM 2: RS-232/ RS-422/ RS-485
  • Parallel Port: Supports SPP/ EPP/ ECP mode
  • Universal Serial Bus: USB 2.0 port x 7, 5 x 2 pin headers for internal x 3, TYPE-A connector onboard x 1
  • Floppy Drive Interface: Standard Floppy Disk Drive port x 1, supports up to two floppy devices
  • Keyboard and Mouse: Mini-DIN PS/2 Keyboard and Mouse connector x 1, Internal keyboard pin header x 1
  • IR Interface: Supports IrDA header x 1
  • Audio (Daughter Board): Realtek ALC655 AC97 Codec, MIC-in/Line-in/Line-out/CD-in (optional)

          Display: Supports CRT & LCD simultaneous display

  • VGA Controller: Integrates on Intel 865GV, AGP 8X, Core frequency up to 266MHz
  • LCD Controller: Chrontel CH7017A supports TV-out And LVDS output
  • Memory: Shared memory up to 64MB
  • Resolutions: Up to 2048 x 1536 @ 32bpp for CRT, Up to 1600 x 1200 @ 24-bit for LCD
  • LCD Interface: 18/24-bit LVDS, supports 36/48-bit
  Ordering Information
  • TF-FSB-865G-A11-V
    Full-size CPU Card, Socket 478 for Pentium 4, VGA,7 USBs, CF, AC97, SATA, ATX, Rev. A1.1
  • TF-FSB-865G-A11-VE
    Full-size CPU Card, Socket 478 for Pentium 4, VGA, 1 LAN, 7 USBs, CF, AC97, SATA, ATX, Rev. A1.1
  • TF-FSB-865G-A11-VG
    Full-size CPU Card, Socket 478 for Pentium 4, VGA, 1GbE LAN, 7 USBs, CF, AC97, SATA, ATX, Rev.1.1
  • TF-FSB-865G-A11-E2
    Full-size CPU Card, Socket 478 for Pentium 4, VGA, 2 LANs, 7 USBs, CF, AC97, SATA, ATX, Rev. A1.1
  • TF-FSB-865G-A11-EG
    Full-size CPU Card, Socket 478 for Pentium 4, VGA,1 LAN, 1 GbE LAN, 7 USBs, CF, AC97, SATA, ATX, Rev. A1.1
  • TF-FSB-865G-A11-G2
    Full-size CPU Card, Socket 478 for Pentium 4, VGA, 2 GbE LANs, 7 USBs, CF, AC97, SATA, ATX, Rev.1.1
  • TF-FSB-865G-A11-F
    Full-size CPU Card, Socket 478 for Pentium 4, VGA, LVDS, TV-out, 2 GbE LANs, 7 USBs, CF, Mini PCI, AC97, SATA, ATX, Rev. A1.1
  • TF-FSB-865G-A11-RF
    Full-size CPU Card, Socket 478 for Pentium 4, VGA, LVDS, TV-out, 2 GbE LANs, 7 USBs, CF, Mini PCI, AC97, SATA, RAID, ATX, Rev. A1.1

          Optional Accessories:

  • TF-PER-U00A
    AC97 Audio Daughter Board
  • 1759200155
    (TF) CPU Cooler Fan, for Socket 478,Pentium 4 3.2G, 3P, 12V
  • 1759200332
    (TF) CPU Cooler Fan + Heat Sink, Socket 478, 3P, 12V, 1U Low Profile
  • 1701400802
    Flat Cable, 40P-40P-40P(UL:2651, 15cm + 65cm), 80cm for ATA33
  • 1701400800
    Flat Cable, 40P-40P-40P(UL:20674, 15cm + 65cm), 80cm for ATA100
  • 1701400702
    Flat Cable, 40P ATA-100 2.54mm, BLUE/GRAY/BLACK 70cm for Hard Disk Drive
  • 1703300351
    LCD Cable, 30-pin to 20-pin, 35cm, for Hyundai HT12X11-200 12.1"/ 1024 x 768/ 3.3V LVDS Panel
  • 1703300352
    LCD Cable, 30-pin to 30-pin, 35cm, for Hyundai HT17E11-300 17"/ 1280 x 1024/ 3.3V LVDS Panel, Samsung LTM150XH-L04 15.1"/ 1024 x 768/ 3.3V LVDS Panel
