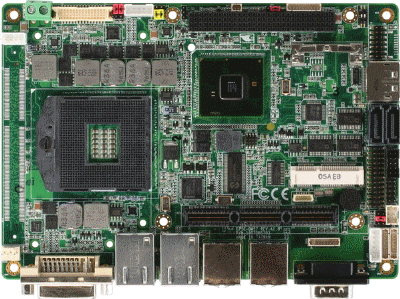

EPIC-QM57
EPIC Express Board with
Intel Core i7/ i5/ Celeron(32nm)
Processor




Datasheets
EPIC-QM57

    Features
  • Intel Core i7/ i5/ Celeron (32nm) Processor
  • Intel QM57
  • SODIMM DDR3 800/1066 Memory, Max. 4 GB, 8 GB (Optional)
  • Gigabit Ethernet x 2
  • Up to 18/24-bit Dual-channel LVDS LCD, CRT, DVI, DisplayPort (Optional)
  • 2CH HD Audio
  • SATA 3.0Gb/s x 2, Type 2 CompactFlash?
  • USB2.0 x 6, COM x 4, 8-bit Digital I/O
  • PCI/104-Express (PCI-104 + PCIe/104)
  • Expansion: Mini Card x 1
  • Supports iAMT6.0, RAID 0 & 1 (Optional)
  • +12V Only Operation
    Specifications
    System

  • Form Factor: EPIC Express Board
  • Processor: Intel Core i7/ i5/ Celeron (32nm) (Socket-988)
  • System Memory: 204-pin SODIMM DDR3 800/1066 Memory, Max. 8 G
  • Chipset: Intel QM57
  • I/O Chipset: ITE8781
  • Ethernet:
    10/1000/1000Base-TX x 2 (Intel 82577LM and Intel 82574L respectively), RJ-45 x 2
  • BIOS: AMI Plug & Play BIOS – 8 MB Flash
  • Wake On LAN: Yes
  • Watchdog Timer: Generates a time-out system reset
  • H/W Status Monitoring:
    Supports Power Supply Voltage, Fan Speed and Temperature Monitoring
  • Expansion Interface: PCI-104, PCIe/104 connector, Mini Card
  • Battery: Lithium battery
  • Power Requirement: +12V
  • Power Consumption (Typical):
    Intel i7-620M, DDR3 1066MHz, 1 GB
    4.02A @ +12V
  • Board Size: 4.5" x 6.5" (115mm x 165mm)
  • Gross Weight: 1.2 lb (0.5 Kg)
  • Operating Temperature: 32°F ~ 140°F (0°C ~ 60°C)
  • Storage Temperature: -40°F ~ 176°F (-40°C ~ 80°C)
  • Operating Humidity: 0% ~ 90% relative humidity, non-condensing
  • MTBF (Hours): 70,000

    I/O

  • Storage: SATA 3.0Gb/s x 2 (RAID 0,1 optional), Type 2 CompactFlash? x 1
  • Serial Port: RS-232 x 3, RS-232/422/485 x 1
  • Parallel: SPP/EPP/ECP Mode
  • USB: USB2.0 x 6
  • PS/2 Port: Keyboard x 1, Mouse x 1
  • Digital I/O: Supports 8-bit (Programmable)
  • Audio: Line-in/ Line-out/ CD-in & MIC-in
  • Touch Screen (Optional): Supports 4/5/8-wire resistive touch screen

          Display: Supports CRT/ LCD/ DVI simultaneous/ dual view display

  • Chipset: Intel CPU integrated
  • Memory: Shared system memory up to 512 MB
  • Resolutions:
    Up to 1920 x 1440 @ colors for CRT
    Up to 1920 x 1200 for DVI/LCD
  • LCD Interface: 18/24-bit dual-channel LVDS
  Ordering Information
  • TF-EPIC-QM57-A11
    Socket-988, FAN, DVI+LVDS, 24-bit 2CH LVDS, SATA x 2, CompactFlash x 1,
    Gigabit Ethernet x 2, USB x 6, RS-232 x 3, RS-232/422/485 x 1,
    PCI/104-Express x 1, Mini Card x 1, DC12V, 0°C ~ 60°C
Optional Accessories
  • 1700290150 -- DVI-I to DVI + VGA Cable, Length 15cm
  • 1700060157 -- KB/Mouse Cable
  • TF-PER-C41C-A10 -- 4 COM Ports Mini Card
