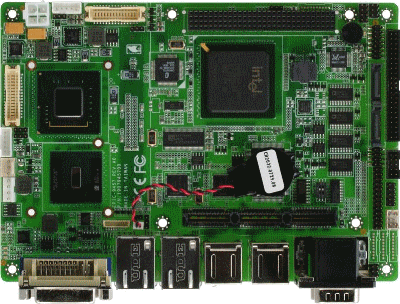

EPIC-9457 Rev.A
EPIC Board with
Onboard Intel Atom N270
Processor
Extended temperature version available




Datasheets
EPIC-9457
EPIC-9457W1

    Features
  • Onboard Intel Atom N270 Processor
  • Intel 945GSE + ICH7M
  • SODIMM DDR2 400/533, Max. 2 GB
  • Gigabit Ethernet x 2, RJ-45 x 2
  • Up to 24-bit Dual-channel LVDS, CRT, DVI (Optional)
  • AC97 2.3 Codec Audio
  • CompactFlash x 1, EIDE x 1, SATA 1.5Gb/s x 2
  • USB2.0 x 6, COM x 4, 8-bit Digital I/O
  • PCI/104-Express (PCI-104 + PCIe/104) Expansion
  • Wide DC Voltage Input: +12V ~ +19V
  • 4/5-wire Touch Screen Controller
  • Optional RAID 0 & 1
  • Operation Temperature:
    0oC ~ 60oC --> EPIC-9457
    -20oC ~ 70oC --> EPIC-9457W1
    Specifications
    System

  • Form Factor: EPIC Express Board
  • Processor: Onboard Intel® Atom™ N270 Processor 1.6GHz, FSB: 533/667MHz
  • System Memory: 200-pin DDRII SODIMM x1, Max. 2GB (DDRII 400/533)
  • Chipset: Intel® 945GSE + ICH7M
  • I/O Chipset: ITE8781
  • Ethernet: Intel® 82574L for 10/100/1000Base-TX, RJ-45 x 2
  • BIOS: Award Plug & Play SPI BIOS - 2MB ROM
  • Wake On LAN: Yes
  • Watchdog Timer: Generates a time-out system reset
  • H/W Status Monitoring:
    Supports power supply voltages and temperature monitoring
  • Expansion Interface:
    PCI/104-Express (PCI-104 + PCIe/104)
  • Battery: Lithium battery
  • Power Requirement: +12V ~ 19V
  • Power Consumption (Typical):
    Intel® Atom™ N270 1.6 GHz, DDRII 2 GB
    1.6A @ 12V
  • Board Size: 4.5" x 6.5" (115mm x 165mm)
  • Gross Weight: 1.1 lb (0.5KG)
  • Operation Temperature:
    EPIC-9457 = 32oF ~ 140oF (0oC ~ 60oC)
    EPIC-9457W1 = -4oF ~ 158oF (-20oC ~ 70oC)
  • Storage Temperature: -40oF ~ 176oF (-40oC ~ 80oC)
  • Operation Humidity: 0% ~ 90% relative humidity, non-condensing
  • MTBF (Hours): 60,000

    I/O

  • Storage: EIDEx1 (UDMA-33 for two devices), SATA 1.5Gb/s x 2,
    CompactFlash™ x 1
  • Serial Port: RS-232 x 3, RS-232/422/485 x 1
  • Parallel Port: SPP/EPP/ECP Mode
  • USB: USB2.0 x 6
  • PS/2 Port: Keyboard+Mouse x 1
  • Digital I/O: Supports 8-bit (programmable)
  • Audio: Line-in, Line-out, Mic-in & CD-in
  • Touch Screen: Supports 4/5/8-wire resistive touch screen

          Display:
          Supports CRT / LCD simultaneous / Dual view displays

  • Chipset: Intel® 945GSE integrated
  • Memory: Shared system memory up to 224MB with DVMT3.0
  • Resolutions:
    Up to 1920x1440 for CRT,
    Up to 1600x1200 for LCD
  • LCD Interface: 24-bit dual-channel LVDS
  • DVI: DVI-I x 1 (optional)
  Ordering Information
  • TF-EPIC-9457-A11
    Intel Atom N270, Fanless, CRT + LVDS/ DVI + LVDS, 24-bit 2CH LVDS, SATA x 2,
    IDE x 1, CompactFlash x 1, Gigabit Ethernet x 2, USB x 6, RS-232 x 3,
    RS-232/422/485 x 1, PCI/104-Express x 1, +12V ~ +19V, 0°C ~ 60°C
  • TF-EPIC-9457W1-A10 (Fanless)
    Intel® Atom™ N270 1.6 GHz, DVI, 18-bit LVDS, DDR2, Gigabit Ethernet, Audio,
    4 COM, 6 USB2.0, CompactFlash™, PCI-104, Rev. A1.0,
    WiTAS 1
  • TF-EPIC-9457W1-A10-01 (Fanless)
    Intel® Atom™ N270 1.6 GHz, 24-bit LVDS, DDR2, Gigabit Ethernet, Audio,
    4 COM, 6 USB2.0, CompactFlash™, PCI-104, Rev. A1.0,
    WiTAS 1
Optional Accessories
  • 1702040151 -- Power Cable, Big 4P to ATX-12V, Length 15cm
  • 1709100201 -- USB Cable, Length 20cm
  • 1701090150 -- COM Port Cable, 15cm
  • 1700140510 -- Audio Cable, RCA Jack, Length 51cm
  • 1702150152 -- SATA Power Cable, Length 15cm
  • 1709070500 -- SATA Cable, 50cm
  • 1701440500 -- IDE Cable for 3.5" HDD
  • 1701440350 -- IDE Cable, for 2.5" HDD
  • 1702040109 -- Power Output Cable, Length 10cm
  • 1701260308 -- LPT Cable, Length 30cm
  • 1700060152 -- Keyboard/ Mouse Cable

Packing List

  • 1709070500 -- SATA Cable
  • 1700060152 -- KB/Mouse Cable
  • 9657666600 -- Jumper Cap
  • Product CD
  • EPIC-9457 Rev. A With Heatsink
