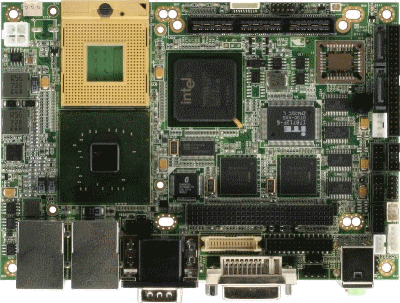

EPIC-9456
EPIC Board with Socket 478/
Onboard Intel Core 2 Duo/
Core Duo/ Celeron M (65nm)
Processors


    Features
  • Intel® Core™ 2 Duo/ Core™ Duo/ Celeron® M (65nm) Processors
  • Intel® 945GME + ICH7M
  • SODIMM DDR II 400/533/667 Max. 2GB
  • Gigabit Ethernet x 2
  • Up to 24-bit Dual-channel LVDS LCD, CRT, TV-out, LVDS & DVI
  • AC97 2.3 3D Surround 5.1CH Audio
  • Type II CompactFlash™x 1, EIDE x 1, SATA II x 2
  • Parallel x 1, COM x 5, USB2.0 x 8, 8-bit Digital I/O
  • PCI-104 Expansion Interface
  • +12V Only Operation
    Specifications
    System

  • Form Factor: EPIC
  • Processor:
    Socket 478/ onboard Intel® Core™ 2 Duo/ Core™ Duo/ Celeron® M (65nm)
    Processors up to 2.16GHz, FSB: 533/667MHz
  • System Memory: 200-pin DDRII SODIMM x 1, Max 2GB (DDRII 400/533/667MHz)
  • Chipset: Intel® 945GME+ICH7M
  • I/O Chipset: IT8712F KX + Fintek F81216DG
  • Ethernet: Intel® 82573L, 10/100/1000Base-TX, RJ-45 x 2
  • BIOS: Award Plug & Play BIOS - 1MB ROM
  • Wake On LAN: Yes
  • Watchdog Timer: Generates a time-out system reset
  • H/W Status Monitoring:
    Supports Power Supply Voltages, Fan Speed and Temperature Monitoring.
  • Expansion Interface: PCI-104
  • Battery: Lithium battery
  • Power Requirement: +12V, AT/ATX
  • Power Consumption (Typical):
    Intel® Core™ 2 Duo T7400 2.16GHz, DDRII 667 2GB
    3.02A @ +12V
  • Board Size: 4.53" x 6.50" (115 mm x 165 mm)
  • Gross Weight: 1.2lb (0.5KG)
  • Operation Temperature: 32ºF ~ 140ºF (0ºC ~ 60ºC)
  • Storage Temperature: -40ºF ~ 176ºF (-40ºC ~ 80ºC)
  • Operation Humidity: 0% ~ 90% relative humidity, non-condensing
  • MTBF (Hours): 60,000

    I/O

  • Storage:
    EIDE x 1 (UDMA 100 for two devices), SATA II x 2, Type II CompactFlash™ x 1
  • Serial Port: RS-232 x 3, TTL only/ GPS x 1, RS-232/422/485 x 1
  • Parallel: SPP/ EPP/ ECP mode
  • USB: USB2.0 x 8
  • PS/2 Port: Keyboard + Mouse x 1
  • Digital I/O: Supports 8-bit (Programmable)
  • Audio:
    Mic-in, Line-in, Line-out, CD-in, S/PDIF in/out, 5.1CH, Low frequency effect out

          Display:
          Supports CRT / LCD, CRT / DVI, CRT/TV simultaneous / Dual view displays

  • Chipset: Intel® 945GME integrated + CH7307 + CH7308
  • Memory: Shared system memory up to 224MB w/ DVMT 3.0
  • Resolutions:
    Up to 2048 x 1536 for CRT
    Up to 1600 x 1200 @ 24-bit for LCD
    Up to 1600 x 1200 for DVI
  • LCD Interface: Up to 24-bit dual-channel LVDS TFT LCD
  • TV-out: Supports NTSC and PAL standard, S-Terminal and Composite Video
  • DVI: DVI-I x 1
  Ordering Information
  • TF-EPIC-9456-A10
    EPIC, Socket-478, LCD-DVI-TV, DDRII, Gigabit Ethernet, Audio, 5COM, USB2.0, CompactFlash™, PC/104+, Rev.A1.0
Optional Accessories
  • TF-PCM-3794-A10 - PCI-104 Board plus 2 PCMCIA Module
  • 1700080180 - TV-Out Cable
  • 1703030102 - Audio Cable (Line-in)
  • 1709030150 - S/P DIF Cable
  • 1702040151 - AT Power cable
  • 1700060153 - Audio Cable (Line-out)
  • 1701260200 - Parallel Cable
  • 1701100206 - COM Cable
  • 1709100208 - USB Cable
  • 1702040109 - Power output cable
  • 175011901C - Battery cable
