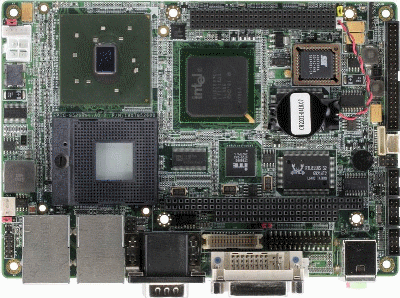

EPIC-8526
EPIC Board with
Socket 478 Intel Pentium M
and
Onboard Pentium M/ Celeron M Processors
|
|
|
Features
- Intel® Embedded Pentium® M/ Celeron® M Processors Up To 2.0GHz
- Intel® 852GM + ICH4
- SODIMM DDR 266 Max. 1GB
- 10/100Base-TX Ethernet x 2 (Optional Gigabit LAN x 1)
- Up to 24-bit Dual-channel LVDS LCD, CRT, TV-out, LVDS and DVI
- AC97 2.0 CODEC 2CH Audio
- EIDE x 1, Type II CompactFlash™ x 1
- Parallel x 1, COM x 5, USB2.0 x 6, 8-bit Digital I/O
- PC/104+ Socket Expansion
- +12V Only Operation
|
Specifications
Form Factor: EPIC
Processor:
Socket 478 based Intel® Pentium® M Processor and onboard Pentium® M / Celeron® M up to 2.0GHz with FSB 400MHz
System Memory: 200-pin DDR SODIMM x 1, Max. 1GB (DDR 266)
Chipset: Intel® 852GM+ICH4
I/O Chipset: ITE8712F-A/IX + Fintek F81216DG
Ethernet: Realtek 8100C, 10/100Base-TX, RJ-45 x 2, (Optional RTL 8110S Gigabit LAN.) BIOS Award Plug & Play BIOS - 1MB ROM
Wake On LAN: Yes
Watchdog Timer: Generates a time-out system reset
H/W Status Monitoring:
Supports power supply voltages, Fan speed and temperature monitoring
Expansion Interface: PC/104+ (PC/104 + PCI-104)
Battery: Lithium battery
Power Requirement: +12V, AT/ATX
Power Consumption (Typical): Pentium® M 2.0GHz, DDR333 1GB 3.31A @ +12V
Board Size: 4.53" (L) x 6.5" (W) (115mm x 165mm)
Gross Weight: 1.2lb (0.5KG)
Operation Temperature: 32ºF~ 140ºF (0ºC ~ 60ºC)
Storage Temperature: -40ºF~176ºF (-40ºC~80ºC)
Operation Humidity: 0% ~ 90% relative humidity, non-condensing
MTBF (Hours): 60,000
I/O
Storage: EIDE x 1 (UDMA 100 for two devices), Type II CompactFlash™ x 1
Serial Port: RS-232 x 3, TTL only/ GPS x 1, RS-232/422/485 x 1
Parallel: SPP/ EPP/ ECP mode
USB: USB2.0 x 6
PS/2 Port: Keyboard + Mouse x 1
IrDA: One IrDA Tx/Rx header
Audio: Line-In, Line-Out & MIC-In
Display:
Supports CRT/ LCD & CRT/ DVI simultaneous / dual view displays
- Chipset: Intel® 852GM integrated
- Memory: Shared system memory up to 64MB w/DVMT
- Resolutions:
Up to 1600 x 1200 @ 32bpp for CRT Up to 1600 x 1200 @ 18-bit for LCD Up to 1280 x 1024 @ 24-bit for LCD Up to 1600 x 1200 for DVI
- LCD Interface:
Up to 24-bit dual-channel LVDS TFT LCD (Emulated 24-bit dual-channel)
- TV-out: Supports NTSC and PAL standard, S-Terminal and Composite Video
- DVI: DVI-I x 1
|
Ordering Information
- TF-EPIC-8526-A10
EPIC, ULV Celeron® M 600MHz, LCD-DVI-TV, DDR, LAN, Audio, 5COM, USB2.0, CompactFlash™, PC/104+, Rev.A1.0 , (Fanless)
- TF-EPIC-8526-A10-01
EPIC, ULV Celeron® M 1.0GHz, LCD-DVI-TV, DDR, LAN, Audio, 5COM, USB2.0, CompactFlash™, PC/104+, Rev.A1.0, (Fanless)
- TF-EPIC-8526-A10-02
EPIC, Celeron® M 1.5GHz, LCD-DVI-TV, DDR, LAN, Audio, 5COM, USB2.0, CompactFlash™, PC/104+, Rev.A1.0
- TF-EPIC-8526-A10-03
EPIC, Socket-478M, LCD-DVI-TV, DDR, LAN, Audio, 5COM, USB2.0, CompactFlash™, PC/104+, Rev. A1.0
Optional Accessories
- TF-PCM-5600 - PC/104 56K Fax/Modem Module
- TF-PCM-3660B - PC/104 Ethernet Module
- PCM-3794-A10 - PCI-104 Board Plus 2 PCMCIA Module
- TF-PCM-FA00-A10 - PC/104 Board Plus to Mini PCI Module converter
- 1702040151 - Power Cable, Big 4P TO ATX-12V, length 15cm
- 1701100206 - COM Port Cable, 9P DB Male, length 20cm
- 1700080180 - TV-Out Cable, length 18cm
- 1703030102 - Audio Cable, Audio Jack, length 10cm
- 1702040109 - Power output Cable, length 10cm
- 1709100208 - USB Cable w/o Bracket, Length 20cm
- 1701260308 - LPT Cable, length 30cm
|
|
