EPC-CV1

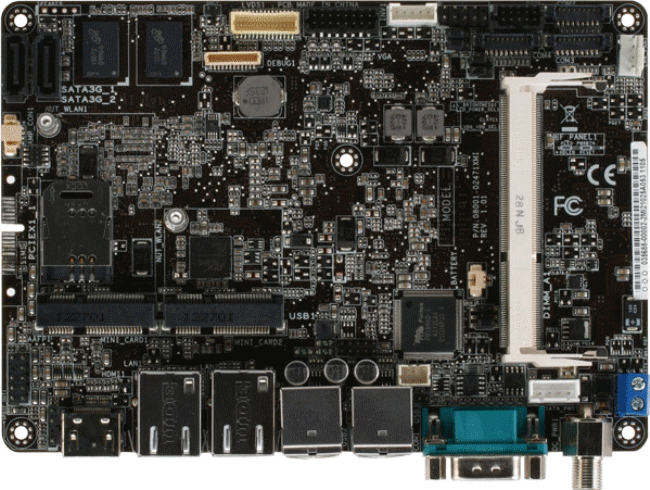

EPIC Board with Onboard
Intel Atom N2600
Processor




Datasheets
EPC-CV1

    Features
  • Onboard Intel Atom Processor N2600
  • Intel NM10 Express Chipset
  • 204-pin SODIMM x 1 DDR3 800/1066 up to 2GB
  • Realtek PCIe GB LAN 8111F x 2
  • VGA, HDMI, 24-bit Dual Channel LVDS
  • Audio Amplifier EUA 2012A
  • SATA 3.0 Gb/s Ports x 2, COM x 4
  • USB 2.0 Ports x 6
  • Mini Card x 2
  • DC 12V (Phoenix/ Lockable DC Connector)
  • GPU: AMD HD7410M
    Specifications
    System

  • Form Factor: EPIC
  • Processor: Intel Atom processor N2600
  • System Memory:
    SO-DIMM x 1, max. 2GB, DDR3 800/1066 MHz, non-ECC, un-buffered memory
  • Chipset: Intel NM10
  • I/O Chipset: Fintek 81866D-I
  • Ethernet: Realtek PCIe Gb LAN 8111F x 2
  • TPM: -
  • BIOS: 64M bit Flash ROM, AMI BIOS
  • Wake On LAN: Yes (WOL/ PXE)
  • Watchdog Timer: 1~255 step by software program
  • H/W Status Monitoring:
    Temperature Monitor on CPU/Chassis
    Voltage Monitor on Vcore/5V/3.3V/12V
    Fan Monitor on CPU/Chassis
  • Expansion Interface: Mini Card x 2 (Full size with SIM card Interface x 1, Half size x 1)
  • Battery: Lithium battery
  • Power Requirement:
    DC connector at back I/O x 1
    Onboard 2 pin Power connector x 1
  • Power Consumption (Typical):
    Intel Atom N2600, DDR3 800/2GB, 12VDC = 13.8W
  • Board Size: 4.53" x 6.5" (115mm x 165mm)
  • Gross Weight: 0.955 lb (0.433 Kg)
  • Operation Temperature: 14°F ~ 131°F (-10°C ~ 55°C)
  • Storage Temperature: -40°F ~ 185°F (-40°C ~ 85°C)
  • Operation Humidity: 0%~90% RH, non-condensing
  • MTBF (Hours): 228,000

    I/O

  • Storage: SATA 3.0 Gb/s ports x 2, SATA power connector x 1
  • Serial Port: RS-232 x 3, RS-232/485 supports 5V/12V x 1
  • Universal Serial Bus: USB 2.0 ports x 6 (2 ports at mid-board, 4 ports at back panel)
  • Digital I/O: 8-bit Digital I/O interface (4-in /4-out)
  • Ethernet: RJ-45 x 2
  • PS/2 Port: PS/2 Combo Port (Keyboard & Mouse) x 1
  • Audio: Line-out/ MIC-in/ SPDIF on board

          Display

  • Chipset: AMD HD7410M with 512MB memory
  • Resolution:
    VGA: Up to 1920 x 1200 @60Hz
    HDMI: Up to 1920 x 1200 @60Hz
    LVDS: Up to 2048 x 1536 @60Hz
    24-bit Dual Channel
  • Output Interface: VGA, HDMI, LVDS
  Ordering Information
  • EPC-CV1-A10
    Intel Atom N2600, SODIMM, Fanless, VGA, HDMI, SATA2 x 2, 24-bit LVDS, GbE x 2,
    USB 2.0 x 6, RS-232 x 3, RS-232/422/485 x 1, Mini Card x 2, 12V DC, -10°C ~ 55°C

Optional Accessories

  • 1757908403 / 1757306007 -- Power Adapter
  • 1700060152 -- PS/2 Cable
  • 1709100201 -- USB 2.0 Cable
  • 1701090150 -- COM Port Cable
  • 1701160201 -- VGA Port Cable
  • M16CV10030 -- Heat Spreader

Packing List

  • SATA Power Cable
  • SATA Cable
  • Product CD
  • EPC-CV1
