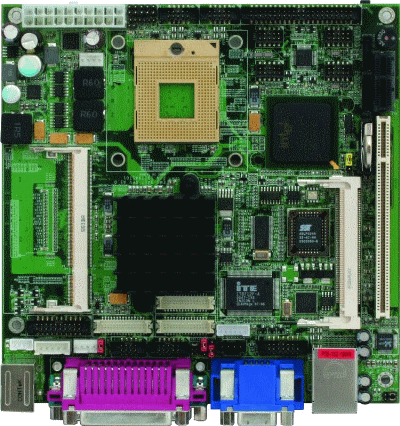

EMB-945T Rev.B
Mini-ITX Embedded Motherboard
Core 2 Duo /
Core Duo / Celeron M

  • Socket 478 or Onboard Intel® Core™ 2 Duo/ Core™ Duo/ Celeron® M Processors
  • Intel® 945GME + ICH7M
  • SODIMM Slot x 2 DDR II 400/533/667 Max. 4GB
  • Gigabit Ethernet x 1 (Intel® 82573L)
  • Up to 24-bit Dual-channel LVDS LCD
  • AC97 5.1CH Audio
  • Type II CompactFlash™, SATA II x 2, EIDE x 1
  • COM x 6, Parallel x 2, USB2.0 x 6, 8-bit Digital I/O x 1
  • PCI x 1, PCI-E [x1] x 2 in PCI-E [x4] Slot (Through Riser Card), Mini PCI x 1
  • ATX
  • LCD Inverter Connector with Brightness Control



The EMB-945T Rev.B adopts the latest Intel Core 2 Duo (Merom)/ Core Duo/ Core Solo/ Celeron M (Yonah) processors and Mobile Intel 945GM Express chipset for better power-management capabilities and enhanced performance. EMB-945T Rev.B with mobile-optimized Intel dual-core processors is the latest embedded motherboard designed to cope with increasingly heavily work-loaded embedded systems found in POS (Point-of-Sale) machines, automated kiosks, medical instruments, advanced automation for buildings and homes, and gaming machines.


The EMB-945T Rev.B features one PCI slot, one PCI-E slot, one Mini PCI slot, six COM ports, six USB 2.0 ports, multiple Digital I/O ports, and Type II CFD storage, providing versatile expansion options for many embedded applications.


The Front Side Bus of EMB-945T Rev.B is up to 667MHz and graphic performance has been enhanced from 20 to 30%. In addition, the EMB-945T Rev.B supports DX9L appropriate to the DirectX and LVD/iDCT MPEG2 Hardware Decode.

  • Form Factor: Mini-ITX
  • Processor: Supports Socket 478 or onboard Intel® Core™ 2 Duo/ Core™ Duo/
    Celeron® M Processors up to 2.16GHz, FSB 533/667
  • System Memory: 200-pin DDR II SODIMM x 2, Max. 4GB (DDR II 400/533/667)
  • Chipset: Intel® 945GME + ICH7M
  • I/O Chipset: ITE 8712 + Fintek F81216D
  • Ethernet: Intel® 82573, 10/100/1000Base-TX, RJ-45 x 1
  • BIOS: Award Plug & Play BIOS - 512KB ROM
  • Wake On LAN: Yes
  • Watchdog Timer: ITE 8712
  • H/W Status Monitoring:
    Supports power supply voltages, fan speed and temperature monitoring
  • Expansion Interface: Mini PCI x 1, PCI x 1, PCI-E [x1] x 1
  • Power Requirement: ATX (+3.3V, +5V, +12V)
  • Power Consumption (Typical):
    T7400 2.16GHz, DDRII 667 1GB
    2.59A @ +12V, 2.88A @ +5V, 0.6A @ +3.3V
  • Board Size: 6.7"(L) x 6.7"(W) (170 mm x 170 mm)
  • Operating Temperature: 32ºF ~ 140ºF (0ºC ~ 60ºC)
  • Storage Temperature: -40ºF ~ 176ºF (-40ºC ~ 80ºC)
  • Operating Humidity: 0% ~ 90% relative humidity, non-condensing
  • MTBF (Hours): 70,000


  • Storage:
    EIDE x 1 (UDMA 100 for one device), SATA II x 2, Type II CompactFlash™ x 1
  • Serial Port: RS-232 x 5, RS-232/422/485 x 1,
  • Parallel Port: SPP/ EPP/ ECP mode
  • USB: USB2.0 x 6
  • PS/2 Port: Keyboard + Mouse x 1
  • Digital I/O: Supports 8-bit (Programmable)
  • IrDA: One IrDA Tx/Rx header
  • Audio: Mic-in, Line-in, Line-out, CD-in, S/PDIF in/out

          Display: Supports CRT/LCD, CRT/TV, CRT/DVI, LCD/DVI and LCD/TV
                           simultaneous / dual view displays

  • Chipset: Intel® 945GM
  • VGA/LCD Controller:
    1. Intel® 945GM integrated Graphics, shared memory up to 224MB with DVMT;
        LCD supports 24-bit dual-channel LVDS
    2. Chrontel 7307 for DVI support
    3. Chrontel 7308 for 24-bit Dual-channel LVDS support
  • DVI: DVI-D in pin-header
  • TV-out: Supports NTSC and PAL standard
  Ordering Information
  • TF-EMB-945T-B10
    Mini-ITX, Socket 478M, LCD-DVI-TV, DDRII, Gigabit Ethernet, Audio, 6 COM, 6 USB, CompactFlash™, Mini PCI, PCI-E, ATX, Rev. B1.0
  • TF-EMB-945T-B10-01
    Mini-ITX, Socket-478M, LCD-DVI-TV, Gigabit Ethernet, Audio, 6 COM, 6 USB, CompactFlash™, Mini-PCI, PCI-E, ATX, Rev.B 1.0 (EMS Process)

          Optional Accessories

  • TF-PER-R16P-A10 - Riser Card, PCI + PCI-E [x4]
  • TF-PER-C10L-A10 - Mini PCI 10/100Base-TX Ethernet Module with Realtek 8100C
  • TF-PER-C10L-A10-01 - Mini PCI Gigabit Ethernet Module with Realtek 8110S
  • TF-PER-C10L-A10-02 - Mini PCI 10/100Base-TX Ethernet Module with Intel® 82551QM
  • TF-PER-C10L-A10-03 - Mini PCI Gigabit Ethernet Module with Intel® 82541GI
  • TF-PER-C20S-A10 - Mini PCI 2-port SATA Module Rev.A1.0
  • TF-PER-C30F-A10 - Mini PCI 3-port IEEE 1394a Module
  • TF-PER-V30C-A11 - Mini PCI Single Channel Capture Module with Philips SAA7135
  • TF-PER-C40C-A10 - Mini PCI 2-port RS-232 Module Rev. A1.0
  • TF-PER-C40C-A10-01 - Mini PCI 4-port RS-232 Module Rev. A1.0
  • TF-PER-1110-A10 - Riser Card for PCI, 2-slot
  • TF-PER-C102 - PCI-Express Dual Ethernet Board
  • M166666006 - Metal, A1, Heat sink, Silver, 60 x 60 x 25.4mm for socket 478
  • 1759294520 - Cooler, Silver, 60 x 60 x 23, Dataguard
  • TF-PER-K002 - Cable kit for EMB-945T Rev.B
