 ARC-6620
Click para maiores detalhes

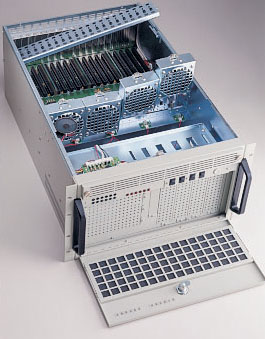

6U 20-slot Industrial Rackmount Chassis

    Features

  • Supports multi-segment 20-slot ISA/PICMG passive backplanes
  • Shock resistant disk drive bay holds seven 5.25" and one 3.5" disk drives in front
  • Four easy-to-replace ball bearing hot-swappable cooling fans for optimal system cooling (4 x 9cm, 51 CFM/each)
  • Fault detection with audible and visual alarm; 6 LED indicators for power supply, fan failure and overheating
  • Can be equipped with a 250 ~ 400 W ATX PS/2 power supply or 300 ~ 400 W redundant power supply to increase system reliability
  • Special modular design allows users to maintain the system with minimal downtime
    Specifications
  • Construction
    Heavy-duty steel chassis

  • Disk drive capacity
    Support seven 5.25" and one 3.5" disk drives in front

  • Cooling fan
    4 x 9cm, 51CFM/each (flow-in) hot-swappable cooling fans

  • Keyboard connector
    One Pre-Wired 5-pin DIN connector on the rear panel

  • Controls
    Momentary power switch, system reset and alarm reset switch on the front panel

  • Status industors
    Single-color LEDs (Green) for Power On, +3.3 V DC status, Fans fall/overheat and (Red) HDD activity

  • Speaker
    One 8-Ohm speaker

  • Color
    Beige or black

  • Hold-down Clamp
    Adjustable card retainer protecting plug-in cards against vibration

  • Dimensions(WxHxD)
    19" x 10.5" x 26.38" (483mm x 267mm x 670mm)

  • Net Weight
    26kg (57.3 lbs)

  • Carton size(LxWxH)
    855mm x 610mm x 418mm

  • Operating temperature
    32 ~ 113 F (0 ~ 45 C)

  • Storage temperature
    32 ~ 167 F (0 ~ 75 C)

  • Operating humidity
    5 ~ 95% @ 40 C, non-condensing

  • Storage humidity
    5 ~ 95%
