ARC-6608

Click para maiores detalhes

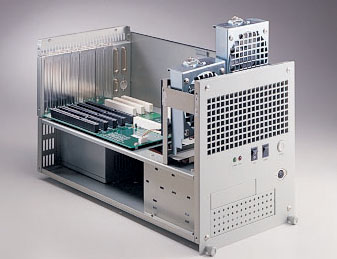

6U 1/2 8-slot Industrial Rackmount Chassis

    Features

  • Supports 8-slot ISA/PICMG passive backplanes
  • Disk drive bay holds one 5.25" and two 3.5" disk drives in front
  • Two easy-to replace ball bearing hot-swappable cooling fan for optimum system cooling (2 x 9 cm, 51 CFM/each)
  • Can be equipped with a 250 ~ 400 W PS/2 power supply or hot-swappable 250W redundant power supply to increase system reliability
  • Special modular design allows users to maintain the system with minimum downtime
    Specifications
  • Construction
    Heavy-duty steel chassis

  • Disk drive capacity
    Support one 5.25" and one 3.5" disk drives in front

  • Cooling fan
    2 x 9cm, 51CFM/each (flow-in) hot-swappable cooling fans

  • Keyboard connector
    One Pre-Wired 5-pin DIN connector on the front panel

  • Controls
    Momentary power switch and reset switch on the front panel

  • Status industors
    Single-color LEDs (Green) for Power On, and (Red) HDD activity

  • Speaker
    One 8-Ohm speaker

  • Color
    Beige or black

  • Dimensions(WxHxD)
    4.33" x 10.5" x 17.71" (110mm x 267mm x 450mm)

  • Net wight (Bare)
    8 kg (17.64 lbs)

  • Carton size (LxWxH)
    570mm x 312mm x 364mm

  • Operating temperature
    32 ~ 113 F (0 ~ 45 C)

  • Storage temperature
    32 ~ 167 F (0 ~ 75 C)

  • Operating humidity
    5 ~ 95% @ 40 C, non-condensing

  • Storage humidity
    5 ~ 95%
    Ordering Information
  • ARC-6608B-G
    6U 1/2 8-slot Industrial Rackmount Bare Chassis. Beige Color
  • ARC-6608-01-G
    6U 1/2 8-slot Industrial Rackmount Bare Chassis. Black Color

    Power Supply Options

  • 1757225001
    250+250 Watt
    AT/PS2
    176mm x 150mm x 86mm
    115/230V AC (Input)
    5/12/-5/-12(Output)
    2 Redundant Power Units

  • 1757225002
    250 Watt
    AT/PS2
    140mm x 150mm x 86mm
    115/230V AC(Input)
    5/12/-5/-12 (Output)
  • 1757230002
    300 Watt
    AT/PS2
    140mm x 150mm x 86mm
    115/230V AC(Input)
    5/12/-5/-12 (Output)
  • 1757240002
    400 Watt
    AT/PS2
    140mm x 150mm x 86mm
    -48 DC(Input)
    5/12/-5/-12 (Output)
  • 1757930000
    300 Watt
    AT/PS2
    140mm x 150mm x 86mm
    -48 DC(Input)
    5/12/-5/-12/3.3/5Vsb (Output)
  • 1757230005
    300 Watt
    AT/PS2
    140mm x 150mm x 86mm
    115/230V AC(Input)
    5/12/-5/-12/3.3/5Vsb (Output)
  • 1757240005
    300 Watt
    AT/PS2
    140mm x 150mm x 86mm
    115/230V AC(Input)
    5/12/-5/-12/3.3/5Vsb (Output)
