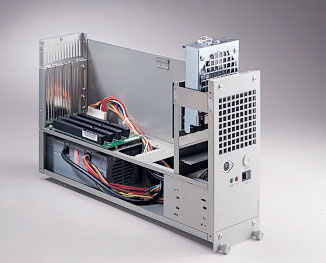

ARC-6604

Click para maiores detalhes

6U 1/4 4-slot Industrial Rackmount Chassis

    Features

  • Supports Full/Haif-size CPU Cards
  • Supports 4-slot ISA/PICMG passive backplanes
  • Disk drive bay holds two 3.5" disk drives
  • One easy-to-replace ball bearing hot-swappable cooling fan for optimal system cooling (1 x 9 cm, 51 CFM/each)
  • Can be equipped with a 150W power supply
  • Special modular design allows users to maintain the system with minimal downtime
    Specifications
  • Construction
    Heavy-duty steel chassis

  • Disk drive capacity
    Support two 3.5" disk drives

  • Cooling fan
    1 x 9cm, 51CFM/each (flow-in) hot-swappable cooling fan

  • Keyboard connector
    One Pre-Wired 5-pin DIN connector on the front panel

  • Controls
    Momentary power switch and reset switch on the front panel

  • Status industors
    Single-color LEDs (Green) for Power On, and (Red) for HDD

  • Speaker
    activity One 8-Ohm speaker

  • Color
    Beige or black

  • Dimensions(WxHxD)
    4.33" x 10.5" x 17.71" (110mm x 267mm x 450mm)

  • Net wight (Bare)
    6.5kg (14.3 lbs)

  • Carton size (LxWxH)
    570mm x 200mm x 364mm

  • Operating temperature
    32 ~ 113 F (0 ~ 45 C)

  • Storage temperature
    32 ~ 167 F (0 ~ 75 C)

  • Operating humidity
    5 ~ 95% @ 40 C, non-condensing

  • Storage humidity
    5 ~ 95%
