ARC-6205

Click para maiores detalhes

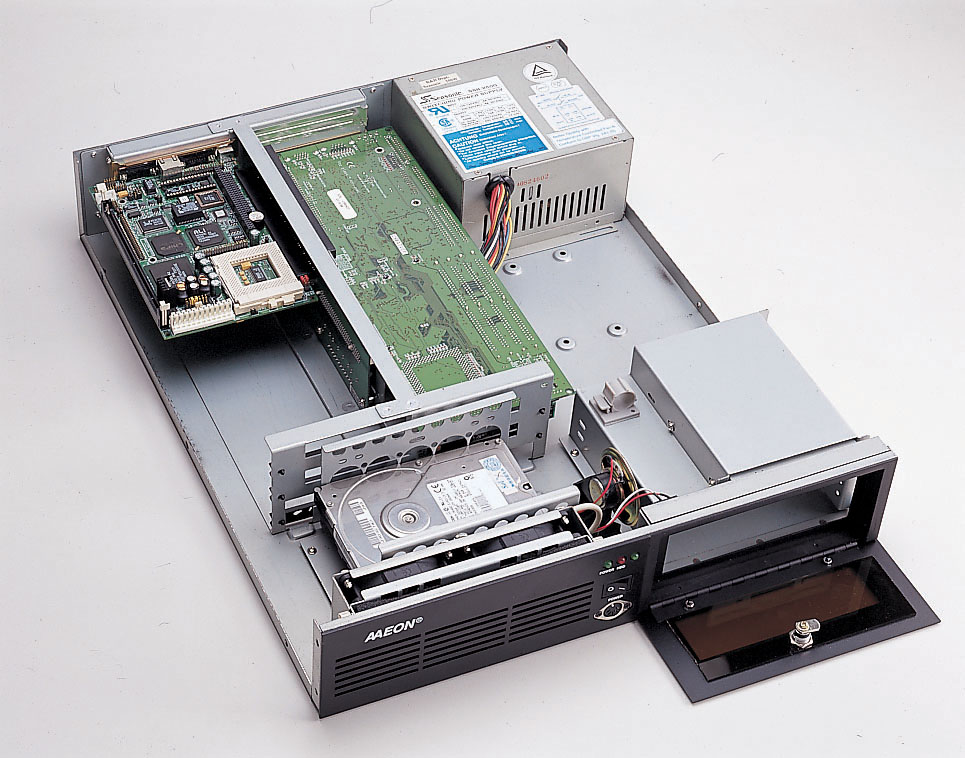

2U 5-slot Industrial Rackmount Chassis

    Features

  • Space-saving 2U chassis; ideal building block for expanding your system
  • Supports 5-slot ISA/PICMG backplanes
  • Disk drive bay holds one 5.25" and one 3.5" disk drives in front, and three 3.5" disk drive inside the chassis
  • Dual easy-to-replace ball bearing cooling fans with front-access air filter (2 x 8 cm, 42.5 CFM/each)
  • Versatile AC/DC power supply (option)
  • Special modular design allows users to maintain the system with minimal downtime
    Specifications
  • Construction:
    Heavy-duty steel chassis

  • Disk drive capacity:
    Support one 5.25" and one 3.5" disk drives in front, and three 3.5" drive inside the chassis

  • Cooling fan
    Dual easy-to-replace 42.5 CFM/each (flow-in) cooling fans with front-access air
    filter

  • Air filter
    One removable filter at front panel

  • Keyboard connector:
    One Pre-Wired 5-pin DIN connector on the front panel

  • Controls
    Momentary power switch and reset switch on the front panel

  • Status indicators
    Single-color LEDs (Green) for Power On, and HDD activity

  • Speaker
    One 8-Ohm speaker

  • Color
    Beige or black

  • Dimensions (WxHxD)
    19" x 3.5" x 20.67" (483mm x 89mm x 525mm)

  • Carton size (LxWxH)
    690mm x 618mm x 267mm

  • Net weight (Bare)
    10 kg (22 lbs)

  • Operating temperature
    32 ~ 113° F (0 ~ 45° C)

  • Storage temperature
    32 ~ 167° F (0 ~ 75° C)

  • Operating humidity
    5 ~ 95% @ 40° C, non-condensing

  • Storage humidity
    5 ~ 95%
