Gabinetes

ARC-6100

Click para maiores detalhes

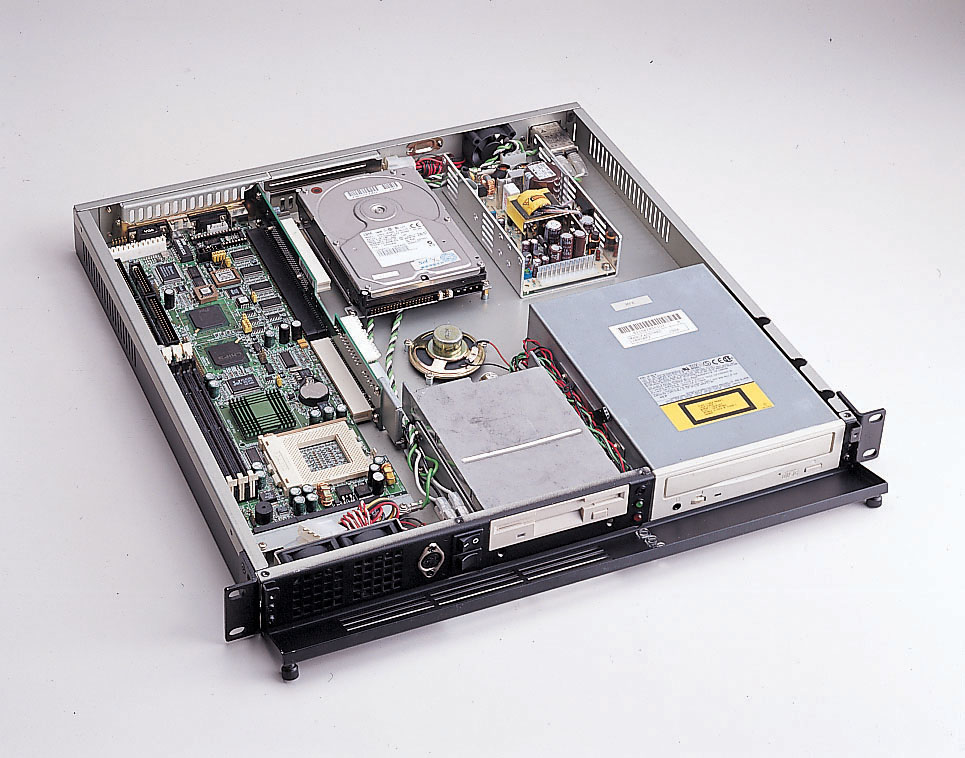

1U Industrial Rackmount Chassis

    Features

  • Special modular design allows users to maintain the system with minimum downtime
  • Supports Full/Half-size CPU Cards and Compact Boards
  • Disk drive bay holds one 5.25" and one 3.5" disk drive in front
  • Dual easy-to-replace ball bearing cooling fans in front, and one in rear for optimum system cooling (3x4cm, 7.0 CFM /Each)
  • Space-saving rackmount chassis designed for communication and industrial applications
    Specifications
  • Construction
    Heavy-duty steel chassis

  • Disk drive capacity
    Support one 5.25" and one 3.5" disk drives in front

  • Cooling fan
    Three 3 x 4, 7.0 CFM / Each (flow-in) cooling fans inside, two fans in front and one in the real side

  • Keyboard connector
    One Pre-Wired 5-pin DIN connector on the front panel

  • Controls
    Momentary power switch and reset switch on the front panel

  • Status indicators
    Single-color LEDs (Green) for Power On, +3.3 V DC status and (Red)HDD activity

  • Speaker
    One 8 Ohm speaker

  • Paint color
    Beige or Black

  • Dimensions (WxHxD)
    19"(483mm) x 1.75"(44.5mm) x 17.32"(440mm)

  • Net weight (Bare)
    9kg (19.8 lbs)

  • Carton size (internal)
    606cm x 590mm x 155mm

  • Carton size (external)
    628mm x 613mm x 181mm

  • Operating temperature
    (32 ~ 113°F) 0 ~ 45°C

  • Storage temperature
    (32 ~ 167°F) 0 ~ 75°C

  • Operating humidity
    5 ~ 95% @ 40°C, non-condensing

  • Storage humidity
    5 ~ 95%
