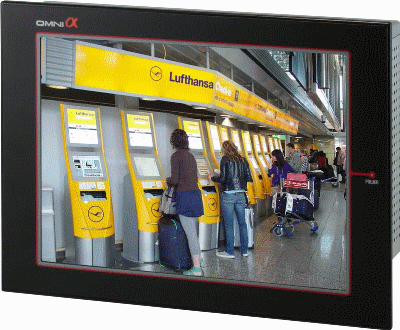

Click para ampliar a imagem AOP-9120

12.1" XGA TFT LCD
Intel Atom
Processor-Based
Operator Panel PC
    Introduction

For system integrators, this simple, complete, compact and highly integrated multimedia system let you easily build a panel PC into your applications. Common industrial applications include factory automation systems, precision machinery, and production process control. It is also suitable for many non-industrial applications, including interactive kiosk systems, entertainment management, and car park automation. Our panel PC is a reliable, cost-effective solution to your application's processing requirements.


    Features
  • 12.1" XGA TFT-LCD
  • Onboard Intel Atom Low Power Consumption Processor
  • Anti-Vibration Disk Bay
  • Touch Screen Support
  • Windows XP Pro For Embedded, XP Embedded, Windows 7 Support
  • Slim Type Panel PC With Fanless Solution

    Specifications

    System


  • Processor: Intel® Atom™ N270 processor at 1.6 GHz
  • System Memory: DDRII DIMM x 1, Max 2 G (DDRII 400/533 MHz)
  • LCD/CRT Controller: Intel® 945GSE integrated
  • Ethernet: 10/100/1000 Base-TX, RJ-45 x 2
  • I/O Port:
    RS-232 x 3, RS-232/422/485 x 1
    USB 2.0 x 4, VGA x 1, DVI x 1
    PS/2 keyboard x 1, PS/2 mouse x 1
    MIC-in , Line-out
  • Storage Disk Drive: Anti-vibration 2.5" Hard Disk Drive Bay (IDE/SATA)
  • Expansion Slot: Mini-PCI slot x 1
  • OS Support: Windows® XP Pro for Embedded, Windows® XP Embedded, Windows® 7

          Mechanical

  • Construction: IP-65 Plastic Panel with metal back cover
  • Color: Black
  • Mounting: Panelmount, VESA 75/100mm
  • Dimension: 16"(W) x 12.2"(H) x 2.6"(D) (317mm x 243mm x 63.4mm)
  • Carton Dimension: 20.67" (W) x 18.31" (H) x 9.1" (D) (525mm x 465mm x 230mm)
  • Gross Weight: 14.3 lb (6.5 Kg)
  • Net Weight: 12.1 lb (5.5 Kg)

          Environmental

  • Operating Temperature: 32°F ~ 104°F ( 0°C ~40°C)
  • Storage Temperature: -4°F ~ 122°F (-20°C ~50°C)
  • Operating Humidity: 10% to 90% @ 35°C, non-condensing
  • Vibration: Random operation 1 G, 5~500Hz
  • Shock: 15G peak acceleration (11 msec. Duration)
  • EMC: CE/ FCC Class A

          Power Supply

  • AC-DC input: AC 100 ~230V
  • DC-DC Input: DC 9 ~ 30V

         LCD

  • Display Type: 12.1"
  • Max. Resolution: 1024 x 768
  • Max. Color: 262K
  • Dot Size: 0.3075 x 0.3075
  • Luminance (Typical): 200 nits
  • View Angle: 90°(H)/70°(V)

      Touchscreen

  • Type: 5-wire, Analog Resistive
  • Resolution: 2048 x 2048
  • Light Transmission: 80%
  • Lifetime: 35 million activations
  Ordering Information
  • TF-AOP-9120HT-A1-1010
    Fanless Operator Panel, Intel® N270 1.6 GHz, 12.1" TFT, AC, R-TS
  • TF-AOP-9120HT-A2-1010
    Fanless Operator Panel, Intel® N270 1.6 GHz, 12.1" TFT, DC, R-TS

           Optional Accessories:

  • 9741666646 -- Wireless LAN Kit, IEEE802.11b/g, with Antenna
  • ARM-WK075-0 -- Wallmount Kit with VESA 75/100mm Standards
  • ARM-LA0115 -- Swivel Arm with VESA 75/100mm Standards
  • 1702031802 -- Power Cord (US Type)
  • 1702031803 -- Power Cord (European Type)
  • 170203180E -- Power Cord (Japanese Type)
  • 2.5" Hard Disk Drive
  • STAND-9150B0 -- Desktop Stand
