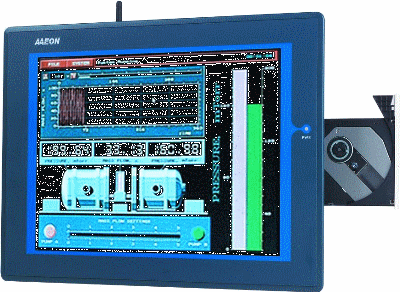

Click para ampliar a imagem AOP-8150WT

Intel Pentium M
and Celeron M Processors
with 15" XGA TFT LCD
    Introduction

    Features
  • 15" TFT XGA (1024 x 768) LCD
  • Intel Pentium® M/ Celeron® M Processors
  • Anti-vibration Disk Drive Bay for Hard Disk Drive
  • COM x 5, USB x 3, 10/100Base-TX Ethernet (10/100Base-TX or Optional Gigabit Ethernet)
  • TouchScreen, Mini PCI and Card Reader
  • Windows® XP Embedded Support (Optional)
  • Up to 8 in or 8 out Digital I/O
  • Supports Dual Independent Displays(Under Windows® XP)

    Specifications

    System


  • Processor: Supports Intel® Pentium® M 1.6GHz/ Celeron® M 1.3GHz/ Celeron 600MHz (Fanless) processors
  • Memory (Optional): Onboard 256MB/ 512MB, supports up to 1GB 184-pin DDR SDRAM
  • LCD/CRT Controller: Intel® 852GM, Shared memory up to 64MB with DVMT
  • Ethernet: 10/100Base-TX RJ-45 x 1, 10/100 or 10/100/1000Base-TX RJ-45 x 1 (optional)
  • I/O Port:
    5 serial: RS-232 x 4, RS-232/422/485 x 1
    (COM 6 is reserved for TouchScreen)
    parallel x 1 (supports ECP/EPP)
    PS/2 mouse x 1
    PS/2 keyboardx 1
    VGA x 1
    MIC-in, Line-in, Line-out
    USB2.0 x 3
    Digital I/O (Supports up to 8 in or 8 out)
  • Storage Disk Drive:
    Anti-vibration 2.5" Hard Disk Drive (optional)
    Slim CD-ROM/Combo/DVD-ROM (optional)
    6-in-1 card reader
  • OS Support: Windows® 2000, Windows® XP, Windows® XP Embedded (optional)

          Mechanical

  • Construction: Plastic chassis
    IP-65 certified front panel
  • Front Panel Color: PMS 2965C (Dark Blue)
  • Mounting: Panelmount, VESA 100mm holes
  • Dimension: 16"(W) x 12.2"(H) x 2.6"(D) (407mm x 310.5mm x 65 mm)
  • Carton Dimension: 20.67"(W) x 18.31"(H) x 9.1"(D) (525mm x 465mm x 230 mm)
  • Gross Weight: 13.2 lb (6 kg)
  • Net Weight: 11 lb (5 kg)

          Environmental

  • Operating Temperature: 32oF ~ 104oF ( 0oC to 40oC)
  • Storage Temperature: -4oF ~ 140oF (-20oC to 60oC)
  • Storage Humidity: 10% to 90% @ 35oC, non-condensing
  • Vibration: Random operation 1G, 5~500Hz
  • Shock: 15G peak acceleration (11 msec. Duration)
  • Safety: UL60950
  • EMC: CE/ FCC Class A

          Power Supply

  • AC input 75W: Input: 85V AC ~ 264V AC @ 47~63Hz

         LCD

  • Display Type: 15" TFT LCD
  • Max. Resolution: 1024 x 768
  • Max. Colors: 16.2M colors
  • Dot Size: 0.297 x 0.297
  • Luminance (Typical): 400 cd/m2
  • Viewing Angle: 140o (H) / 125o (V)
  • Back Light MTBF (Hours): 50,000

      Touchscreen

  • Type: 5-wire, Analog Resistive
  • Resolution: 2048 x 2048
  • Light Transmission: 80%
  • Lifetime: 35 million activations
  Ordering Information
  • TF-AOP-8150WT-A1-1010
    Operator Panel with Pentium® M 1.6GHz processor, 512MB RAM, 15” TFT, Card Reader and TouchScreen
  • TF-AOP-8150WT-A2-1010
    Operator Panel with Celeron® M 1.3GHz processor, 256MB RAM, 15” TFT, Card Reader and TouchScreen
  • TF-AOP-8150WT-A3-1110
    Fanless Operator Panel with Celeron® M 600MHz processor, 256MB RAM, 15” TFT, Card Reader, TouchScreen, DC 24V
  • TF-AOP-8150WT-P3-1110
    Fanless Operator Panel with Celeron® M 600MHz processor, 256MB RAM, 15” TFT, Card Reader, TouchScreen, DC 24V, Windows® XP Embeded on 1G CompactFlash™ Disk
  • TF-AOP-8150WT-A4-1110
    Fanless Operator Panel with Celeron® M 600MHz processor, 256MB RAM, 15” TFT, Card Reader, TouchScreen, AC
  • TF-AOP-8150WT-P4-1110
    Fanless Operator Panel with Celeron® M 600MHz processor, 256MB RAM, 15” TFT, Card Reader, TouchScreen, AC, Windows® XP Embeded on 1G CompactFlash™

           Optional Accessories:

  • 9741666646 - Wireless LAN Kit, IEEE802.11b/g, with Antenna
  • STAND-8150B0 - Desktop Stand with VESA 100mm Standards
  • ARM-WK075-0 - Wallmount Kit with VESA 75/100mm Standards
  • ARM-LA0115 - Swivel Arm with VESA 75/100mm Standards
  • EXP-8150P1-01 - One PCI Expansion Kit
  • 1702031802 - Power Cord (US Type)
  • 1702031803 - Power Cord (European Type)
  • 170203180E - Power Cord (Japanese Type)
  • Slim CD-ROM/Combo/DVD-ROM
  • 2.5" Hard Disk Drive
