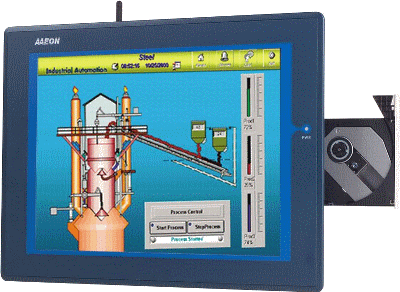

The AOP-8150 panel PC is a Ultra Low Voltage Low power Celeron processor computer that is designed to serve as a human machine interface (HMI) and as a multimedia computer. It is a PC-based system with 15" color TFT LCD display, on-board Ethernet controller, multi-COM port interfaces and an audio controller. In addition, its "fit anywhere" design makes it very flexible and able to be used in many different kinds of installations. It can be wall mounted, panel mounted or stood upright on a desktop.

For system integrators, this simple, complete, compact and highly integrated multimedia system let you easily build a panel PC into your applications. Common industrial applications include factory automation systems, precision machinery, and production process control. It is also suitable for many non-industrial applications, including interactive kiosk systems, entertainment management, and car park automation. Our panel PC is a reliable, cost-effective solution to your application's processing requirements.


    Specifications

System


• Processor: Onboard Ultra Low Voltage Intel® Celeron® processor at 650MHz
• Memory (Optional): Onboard 256MB, supports up to 1GB 184-pin DDR SDRAM
• LCD/CRT Controller: VIA CLE266, shared up to 32MB
• Ethernet:
  Realtek 8100BL 10/100Base-TX RJ-45 x 1
  Realtek 8100C 10/100Base-TX RJ-45 x 1 or 8110S 10/100/1000Base-TX RJ-45 x 1 (optional)
• I/O Port:
  5 serial: RS-232 x 4, RS-232/422/485 x 1
  (COM 4 is reserved for TouchScreen)
  parallel x 1 (supports ECP/EPP)
  PS/2 mouse x 1
  PS/2 keyboard x 1
  VGA x 1
  MIC-in, Line-in, Line-out, S/P DIF-out
  USB2.0 x 4
  Digital I/O x 1(Supports up to 8 in or 8 out)
• Storage Disk Drive:
  Anti-vibration 2.5" Hard Disk Drive (optional)
  Slim CD-ROM/Combo/DVD-ROM (optional)
  6-in-1 card reader
• Expansion Slot: Mini PCI Slot x 1, PCI (optional) x 1
• OS Support: Windows® 2000, Windows® XP, Windows® XP Embedded (optional)

          Mechanical

• Construction:
  Plastic chassis
  IP-65 certified front panel
• Front Panel Color: PMS 2965C (Dark Blue)
• Mounting: Panelmount, VESA 100mm holes
• Dimension: 16"(W) x 12.2"(H) x 2.6"(D) (407mm x 310.5mm x 65 mm)
• Carton Dimension: 20.67"(W) x 18.31"(H) x 9.1"(D) (525mm x 465mm x 230 mm)
• Gross Weight: 13.2 lb (6 kg)
• Net Weight: 11 lb (5 kg)

          Environmental

• Operating Temperature: 32^oF ~ 104^oF ( 0^oC to 40^oC)
• Storage Temperature: -4^oF ~ 140^oF (-20^oC to 60^oC)
• Storage Humidity: 10% to 90% @ 35^oC, non-condensing
• Vibration: Random operation 1G, 5~500Hz
• Shock: 15G peak acceleration (11 msec. Duration)
• EMC: CE/ FCC Class A
