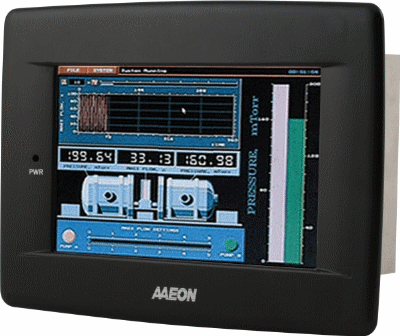

Click para ampliar a imagem AOP-8070

7" 16:9 WINCE Fanless
Operator Panel
    Introduction


AOP-8070 operator panel adopts Marvell Xscale processor that is especially designed to serve as a human machine interface (HMI). Its onboard Ethernet controller and multi-COM port interfaces make AOP-8070 a biggest possibility to expansion. With a built-in CompactFlash socket, the AOP-8070 is as compact and user friendly as a multi-function computer. Moreover, its "fit anywhere" design makes it very flexible and is able to be used in many different kinds of installations. It can be wallmounted, panelmounted or mounted on a DIN Rail.  The VESA 75/100 are standard mounting tools for AOP-8070.  This tool provides a safety and easy way to install the AOP-8070 and ensure the security of your system investment.

Regarding the AOP-8070’s construction, it passed IP-65 certification for the plastic front panel and aluminum rear panel. For many critical applications, the IP-65 certification is essential and necessary for panel products.


    Features
  • Marvell® XScale PXA270 Low Power Processor
  • 7" 16:9 WQVGA TFT LCD
  • Slim, Fanless, Rugged
  • TouchScreen CompactFlash™ Card Support
  • Windows® CE.NET 5.0 Support
  • 10/100Base-TX Ethernet
  • Up to 6 In or 6 Out Digital I/O

    Specifications

    System


  • Processor: Marvell® XScale PXA270 520MHz onboard CPU
  • Memory: Onboard 128MB
  • Storage Memory: Onboard M-System Mobile DOC 128MB
  • LCD/CRT Controller:
    Intel® PXA270 for 1st TTL LCD and CRT output
    Intel® 2700G for 2nd TTL LCD output (Optional)
  • Ethernet: Davicom DM9000AEP 10/100Base-TX, RJ-45 x 1
  • I/O Port: RS-232 (DB-9) x 1, RS-485 + Digital I/O x 1, USB1.1 x 4
  • Storage Disk Drive: CompactFlash™ Type I/II slot
  • OS Support: Windows® CE.Net 5.0

          Mechanical

  • Construction:
    IP-65 certified Plastic front panel
    Aluminum back panel
  • Color:
    Front Panel: Black
    Back Panel: Original color of material
  • Mounting: VESA 75/100
  • Dimension: 8.9" (W) x 6.14" (H) x 2.2" (D) (225mm x 156mm x 56mm)
  • Carton Dimension: 11.18" (W) x 7.36" (H) x 8.98" (D) (284mm x 187mm x 228mm)
  • Gross weight: 3.3 lb (1.5 kg)
  • Net weight: 2.2 lb (1 kg)

          Environmental

  • Operating Temperature: 32oF ~ 122oF (0oC ~ 50oC)
  • Storage Temperature: -4oF ~ 140oF (-20oC ~ 60oC)
  • Operating Humidity: 10 to 90%@ 40şC, non-condensing
  • Vibration: Random Operation 1G, 5~500Hz
  • Shock: 15G peak acceleration (11 msec. duration) / operation
  • Safety: UL60950
  • EMC: CE/FCC Class A

          Power Supply

  • DC-DC Input, 20W
    Input: 12V

         LCD

  • Display Type: 7" 16:9 WQVGA TFT LCD
  • Max. Resolution: 480 x 234
  • Max. Color: Full Colors
  • Dot Size: 0.107(H) x 0.37(V)
  • Luminance: 350 cd/m2 (Typical)
  • View Angle: 120o(H)/105o(V)
  • Back Light MTBF (Hours): 15,000

      Touchscreen

  • Type: 4-wire, Analog Resistive
  • Resolution: 2048x2048
  • Light Transmission: > 80%
  • Lifetime: 10 Million activations
  Ordering Information
  • TF-AOP-8070HT-E1
    Marvell PXA270 520MHz, Fanless Operator Panel with 7” 16:9 LCD, 128MB RAM, Touch Screen, Win CE 5.0

           Optional Accessories:

  • ARM-DR075-0 - DIN Rail kit with VESA 75/100 mm Standards
  • ARM-WK075-0 - Wallmount Kit with VESA 75/100mm Standards
  • 1702031830 - Power Cord (US type)
  • 1702031831 - Power Cord (European type)
  • 1702031810 - Power Cord (Japanese type)
  • 1702021201 - DC Power Cable w/ lockable connector
  • 1757306001 - AC Input Adapter (DC 12V Output)
