Introduction

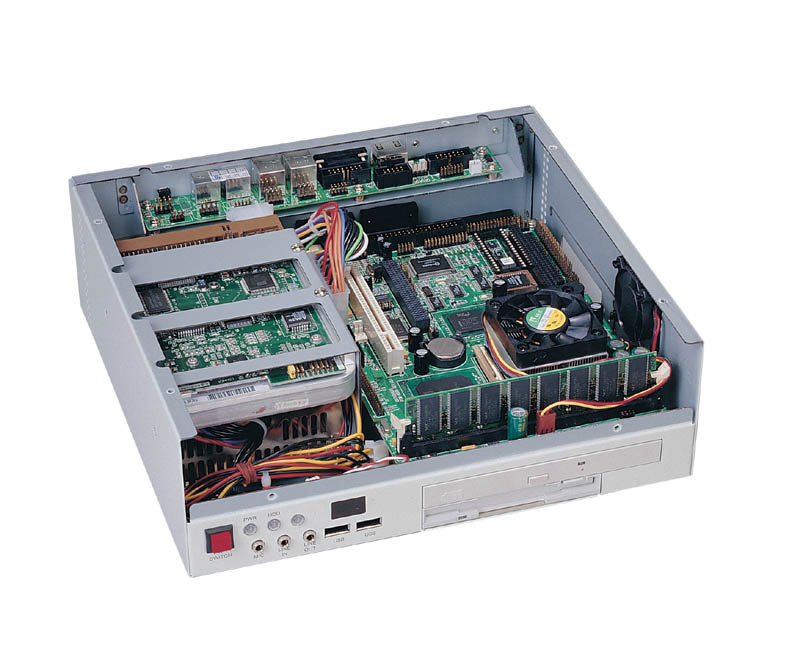

The
AEC-6200 Compact
Board chassis is a complete operating unit for system integration
using any compact card from our PC line of compact single board
computers. This compact chassis offers a built in power supply and a
slim CD/FDD module. This complete system is worry free and shipped
ready for operation. The AEC-6200 special size of 9.75" (L) X 10.25"
(W) X 3.25" (H) offers the end user a compact operating system. In
the front of the chassis you will find application adapters such as
LED indicators, power switch, MIC in, line in/out and 2 USB ports.
Located on the rear panel are the remaining application adapters
such as P/S 2 mouse and keyboard, 2 USB, LAN, VGA, parallel port, 4
COM, and panel link. During the designing stages of the compact
chassis, placements of the internal devices were crucial. A special
external air inlet was even designed into the roof of the chassis to
reduce overheating. A heat dissipating fan was also incorporated
into the rear panel of the chassis. AEC-6200 is built to house a
3.5" hard drive, along with a slim CD/FDD module located in the
front panel. The design contains a built in power supply offering
150-250 watts of power. Our compact chassis utilizes a closed frame
power supply to decrease Electrical Magnetic Interference (EMI).
|
