Introduction

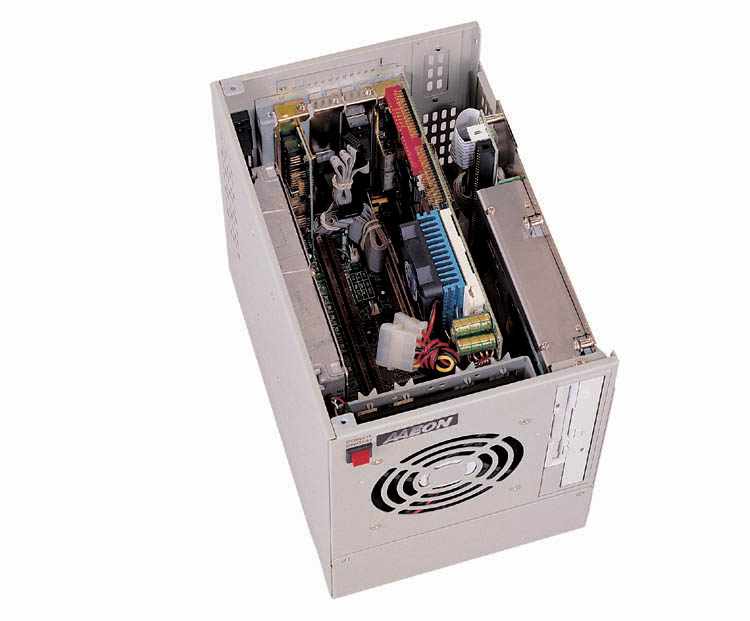

The
AEC-204 industrial
wallmount chassis is a high-powered ultra-compact 4-slot IPC chassis
designed to provide an environmentally secure housing for embedded
control system and other space critical applications.
This 155mm
x 107mm x 247mm unit comes configured with complete functions for
building a complete PC system. It supports both PISA and ISA passive
backplanes and can accept most half-size ISA/PISA bus CPU cards. In
addition, the AEC-204 reserves one RS-232 port and one parallel port
and has room for both a 3.5" hard-drive and a 3.5" floppy-drive.
Also include is a 150-watt power supply. This allows you to use much
more powerful boards with high-powered requirements such as Pentium
III and Celeron based PC boards.
|
|
Features
- Supports high performance half-size CPU Cards
- Supports 4-slot PISA/ISA bus passive backplanes
- Supports wallmount or desktop applications
- Disk drive bay holds one 3.5" FDD and one 3.5" disk drives
- Dual easy-to-replace ball bearing cooling fans in power
section and one in system section
- Special modular design allows users to maintain the system
with minimum downtime
|
|
|
Specifications
Specifications
- Construction
Heavy-duty steel chassis
- Disk drive bay
Support one 3.5" HDD and one 3.5"
FDD
- System cooling fan
One 49 CFM, 9 cm ball bearing
fan
- Power cooling fan
Two 3.8 CFM, 4 cm ball bearing
fans
- Control s
Power On/Off switch
- Dimension (WxHxD)
6.1" x 7.8" x 9.6" (155mm x 198mm
x 242mm)
- Net Weight (Bare)
3.5 kg(7.7 lbs)
- Color
Beige
|
|
|
Ordering Information
- AEC-204
4-slot industrial Wallmount
Chassis
Power Supply
Options
- 1757015002
150 watt
ATX
180mm x 100mm x
40.5mm
115/230V AC(Input)
5/12/-5/-12/3.3/5V sb
(Output)
- 1757215001
150 Watt
AT
180mm x 100mm x
40.5mm
115/230V
AC(Input)
5/12/-5/-12(output)
|
|
|
